Partiron

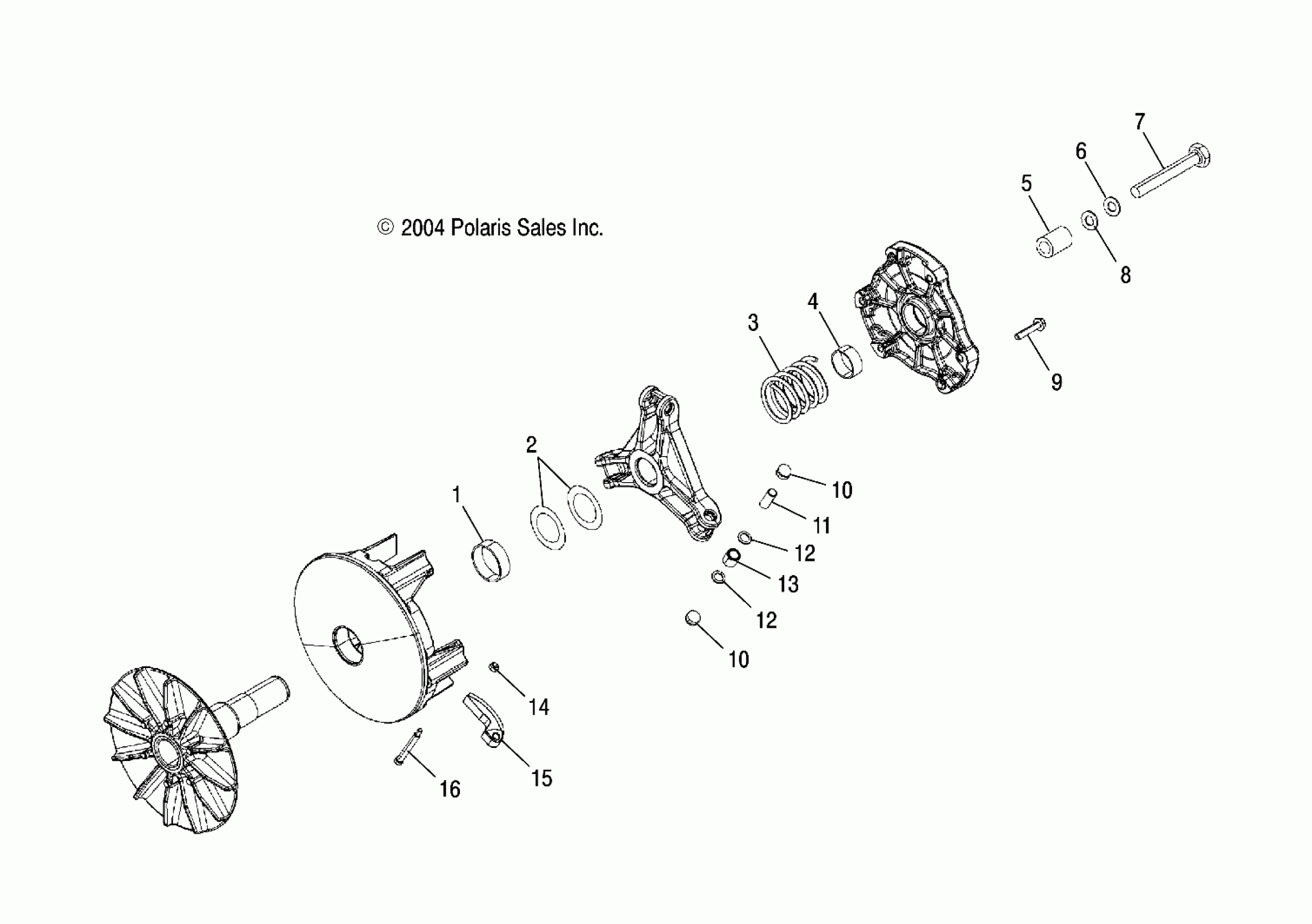

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY CLUTCH, DRIVE - A07MH76AX/AY/AZ (4998269826C11) Diagram

#

Description
Price

-

Asm., Drive Clutch [Incl. All Less 5-8]

1322698

$734.99

1

BEARING, MOVEABLE, 1/2 INCH

3576504

$23.99

2

SPACER, .050

5210754

Unavailable

2

SPACER, .025

5242981

Unavailable

2

SPACER, .020

5210752

Unavailable

2

SPACER, .032

5210753

Unavailable

3

Spring, Clutch

7043199

$47.99

4

Bearing, Cover

3576510

$9.59

5

BUSHING-.437 X.770 X.50

5430261

$7.19

6

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

7

Bolt

7518197

Unavailable

8

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

9

SCREW

7518062

$4.79

10

BUTTON, CLUTCH

5431936

Unavailable

10

BUTTON, CLUTCH

5431936

Unavailable

11

PIN-ROLLER

5020422

$2.39

12

WASHER,MULTILUBE

5430945

$1.59

12

WASHER,MULTILUBE

5430945

$1.59

13

ASM-ROLLER AND BUSHING

1321622

$32.37

14

NUT, FLEXLOC

7541906

$3.19

15

Weight, Shift, 20-62F

5632286

$13.99

16

BOLT, SHOULDER

7512266

$3.19
