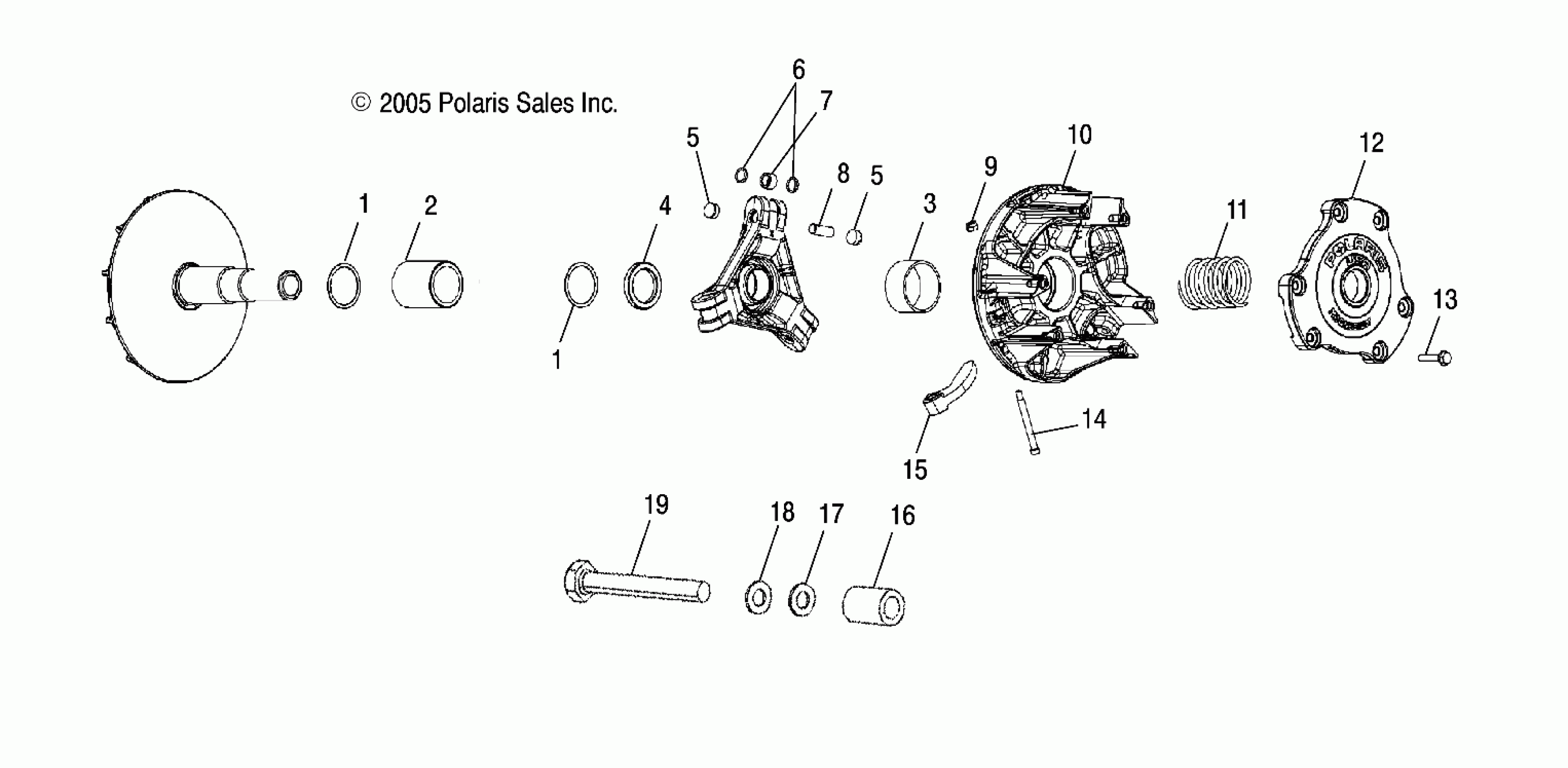

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY CLUTCH, DRIVE - A07MH76AL/AQ/A2/MN76AF/AT/AY (4999200299920029C06) Diagram

#

Description
Price

-

Asm., Drive Clutch [Incl. All Less 11,15]

1322673

$515.45

1

WASHER-CLUTCH,VESPEL

7556335

$6.39

1

WASHER-CLUTCH,VESPEL

7556335

$6.39

2

ASM., CLUTCH

1520836

$139.99

3

BEARING

3514492

$31.99

4

Spacer, Clutch

5631903

$39.59

5

BUTTON, CLUTCH

5431936

Unavailable

5

BUTTON, CLUTCH

5431936

Unavailable

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.39

9

NUT, FLEXLOC

7541906

$3.19

10

ASM., SHEAVE

-------

Unavailable

11

Spring, Clutch [If built before 8/30/06]

7041157

$47.99

11

Spring, Clutch, Blue/Red [If built after 8/30/06]

7043199

$47.99

12

Bearing, Cover

3576510

$9.59

13

SCREW

7518062

$4.79

14

BOLT, SHOULDER

7512266

$3.19

15

Weight, Shift, 20-62F

5632286

$13.99

16

BUSHING-.437 X.770 X.50

5430261

$7.19

17

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

18

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

19

Screw

7518197

Unavailable
