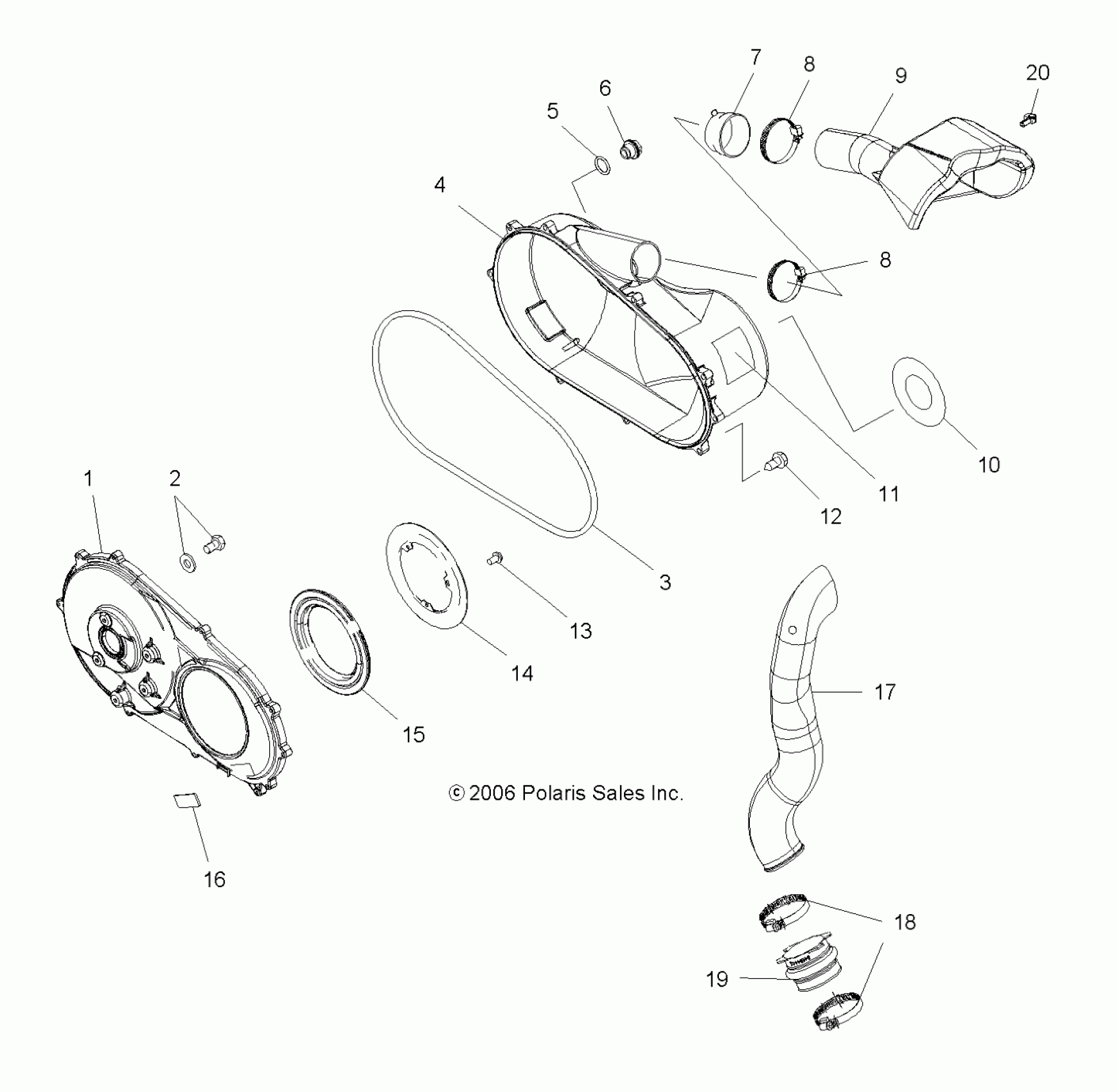

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY CLUTCH, COVER and DUCTING - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVCLUTCHCVR800EFI) Diagram

Kit, Inner Clutch Cover [Incl. 12]

2201955

$140.79

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

Seal, Cover, Clutch, Outer [If built after 10/17/06]

5521738

$42.46

Seal, Cover, Clutch, Outer [If built before 10/17/06]

5521578

Unavailable

Asm., Clutch Cover, Outer

2633262

$169.87

Asm., Clutch Cover, Outer [Incl. 4,5,6]

2633262

$169.87

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

BOOT, DUCT

5412636

$23.99

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

DUCT, CLUTCH OUTLET

5436954

$167.19

Decal, Automatic Transmission [MH76AX][MH76AY][MH76AZ]

7172746

Unavailable

Decal, Automatic Transmission, EBS [MH76AL][MH76AQ][MN76AF][MN76AT][MN76AY]

7172747

Unavailable

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

SCREW

7512094

$1.59

SCREW

7517867

$1.59

Bracket, Retainer, Seal, Black

5244527-067

Unavailable

SEAL, COVER, CLUTCH, INNER

5412635

$43.99

STOPPER, INNER CLUTCH COVER

5412675

$8.79

Duct, Clutch Air Inlet

5434044

$114.99

CLAMP, HOSE

7080451

$7.19

BOOT, CLUTCH INTAKE

5412634

$11.19

CLIP, SILENCER BOX

7670102

$2.39
