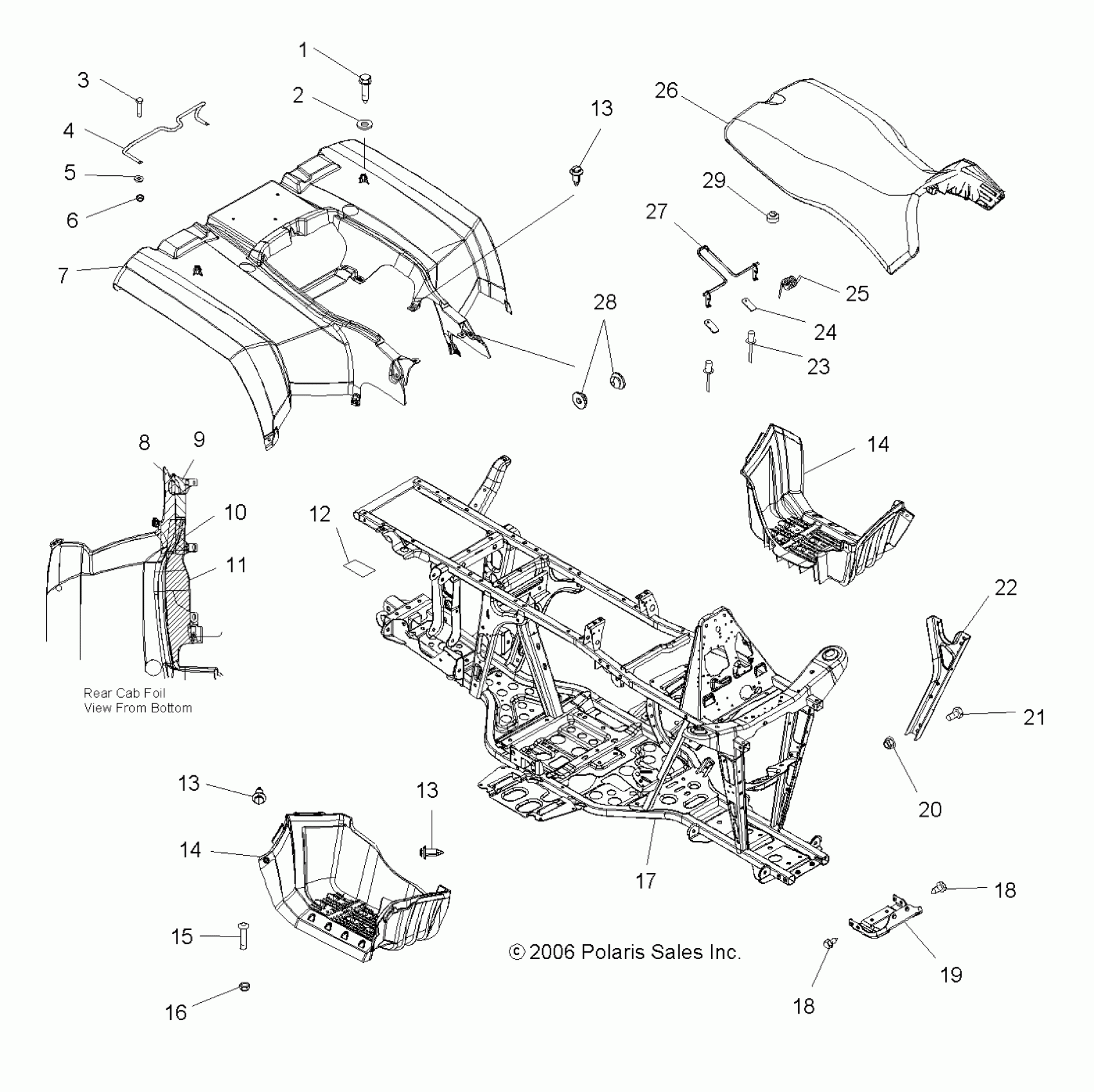

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY CAB, REAR, SEAT and FRAME - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVCABRR800EFI) Diagram

#

Description
Price

1

Screw

7512095

$4.79

2

Washer

7555798

$1.49

3

Screw

7511930

$2.39

4

RETAINER, SEAT LATCH

5250745

Unavailable

5

WASHER

7555792

$4.79

6

Nut, Nylok

7541925

$1.49

7

Cab, Rear, Indy Red [MH76AZ]

5436319-293

$391.99

7

Cab, Rear, Sonic Blue [MN76AF]

5436319-341

Unavailable

7

Cab, Rear, Camo Green Metallic [MH76AX]

5436319-400

Unavailable

7

Cab, Rear, Black Metallic [MH76AY][MN76AY]

5436319-177

$396.65

7

Cab, Rear, NBU Camo [MH76AQ][MN76AT]

5435664-455

Unavailable

7

Cab, Rear, Stealth Black [MH76AL][MH76A2]

5436235-464

$704.99

8

Foil, Rear Cab, Front

5813177

Unavailable

9

Foil, Rear, Cab, Edge

5813029

$48.39

10

Foil, Rear Cab, Rear

5813030

Unavailable

11

FOIL, CAB, REAR

5813043

$31.99

12

DECAL, HITCH, 1500 LBS.

7170509

$6.39

13

Rivet

7661855

$1.49

13

Rivet

7661855

$1.49

13

Rivet

7661855

$1.49

14

Footwell, Black, LH [If built after 7/27/06]

5436931-070

$227.99

14

Footwell, Black, RH [If built after 7/27/06]

5436932-070

$227.99

14

Footwell, Black, LH [If built before 7/27/06]

5435354-070

Unavailable

14

Footwell, Black, RH [If built before 7/27/06]

5435355-070

Unavailable

14

Footwell, Black, LH [If built after 7/27/06]

5436931-070

$227.99

14

Footwell, Black, RH [If built after 7/27/06]

5436932-070

$227.99

14

Footwell, Black, LH [If built before 7/27/06]

5435354-070

Unavailable

14

Footwell, Black, RH [If built before 7/27/06]

5435355-070

Unavailable

15

SCREW

7517230

$1.49

16

Nut, Nylok

7542122

$1.49

17

Frame, Main, Black

1015740-067

$1,209.99

18

SCREW

7515399

$1.49

18

SCREW

7515399

$1.49

19

Bracket, Bumper, Lower, Black

5245767-067

Unavailable

20

Nut, Nylok, Flange

7542153

$1.59

21

Screw

7512283

$3.99

22

Brace, Support, Frame, Front, Black, LH

5244751-067

Unavailable

23

RIVET

7621403

$1.49

24

BRACKET, LEVER RETAINER

5211033

$29.25

25

SPRING, LATCH

7041370

$9.59

26

Asm., Seat, Black [MN76AF][MH76AX][MH76AY][MH76AZ][MN76AY]

2683433-070

Unavailable

26

Covering, Seat, Black

2683434-070

Unavailable

26

Covering, Seat, Black [MH76AL]

2684011-070

Unavailable

26

Asm., Seat, Black [MH76AQ][MN76AT]

2683661-070

Unavailable

26

Asm., Seat, Black [MH76AL]

2684010-070

Unavailable

27

LATCH, SEAT

1040387

$47.99

28

Grommet, Rubber Mount

5412623

$2.39

29

BUMPER-RUBBER

5412067

$3.99
