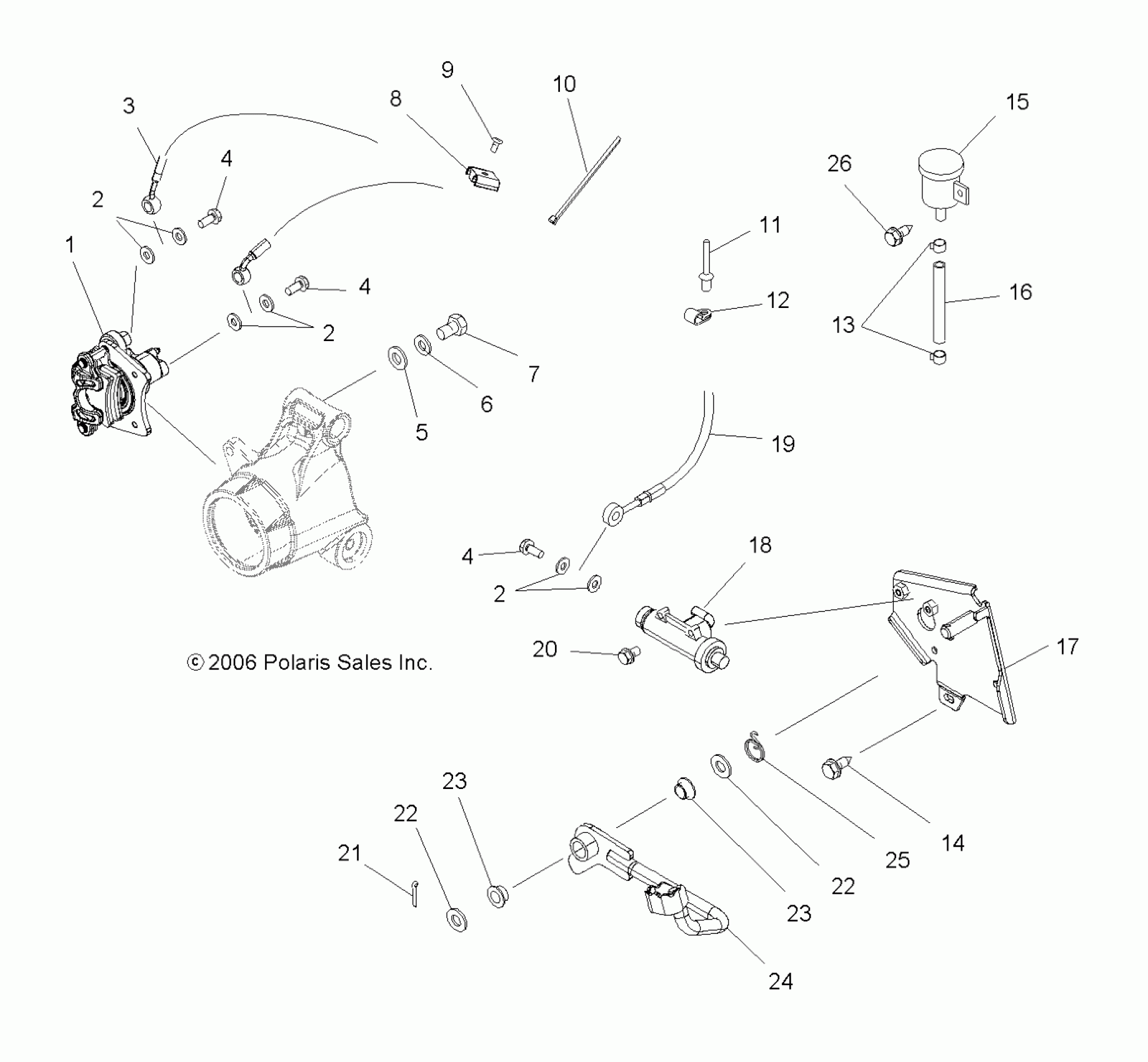

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY BRAKE, FOOT - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY (49ATVBRAKERR800EFI) Diagram

#

Description
Price

1

Asm., Caliper [See Caliper, Rear Page for Details]

1911075

$259.99

2

SEAL

5413212

$4.79

2

SEAL

5413212

$4.79

2

SEAL

5413212

$4.79

3

Kit, Line, Brake, Rear, From J/B

2202644

$99.99

4

BOLT, BANJO

1910499

$5.59

4

BOLT, BANJO

1910499

$5.59

4

BOLT, BANJO

1910499

$5.59

5

WASHER, FLAT

7556188

$3.19

6

Washer, Spring Lock

7552603

$1.49

7

SCREW

7512457

$3.99

8

CLIP, RETAINING

7670126

$4.79

9

Screw

7517756

$1.49

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

Rivet

7621462

$1.49

12

CLAMP, CABLE

7080960

$4.79

13

HOSE CLAMP, RED

7080003

$1.49

14

SCREW

7512232

$1.49

15

Asm., Reservoir, Brake, Rear

1930854

$35.99

16

Hose, Reservoir

1910438

$7.27

17

Mount, Brake, Black

1015617-067

$35.51

18

Asm., Master Cylinder, Brake, Foot

1910791

$171.99

19

Line, Rear Brake, Foot

1911074

$91.99

20

Screw

7515158

$4.79

21

PIN, COTTER

7661401

$1.49

22

WASHER

7555919

$4.99

22

WASHER

7555919

$4.99

23

BUSHING, PIVOT, PEDAL

5433189

$3.99

23

BUSHING, PIVOT, PEDAL

5433189

$3.99

24

Pedal, Brake, Black

1911076-067

$53.17

25

SPRING-TORSION,BRAKE

7041750

$8.79

26

SCREW

7517386

$1.49
