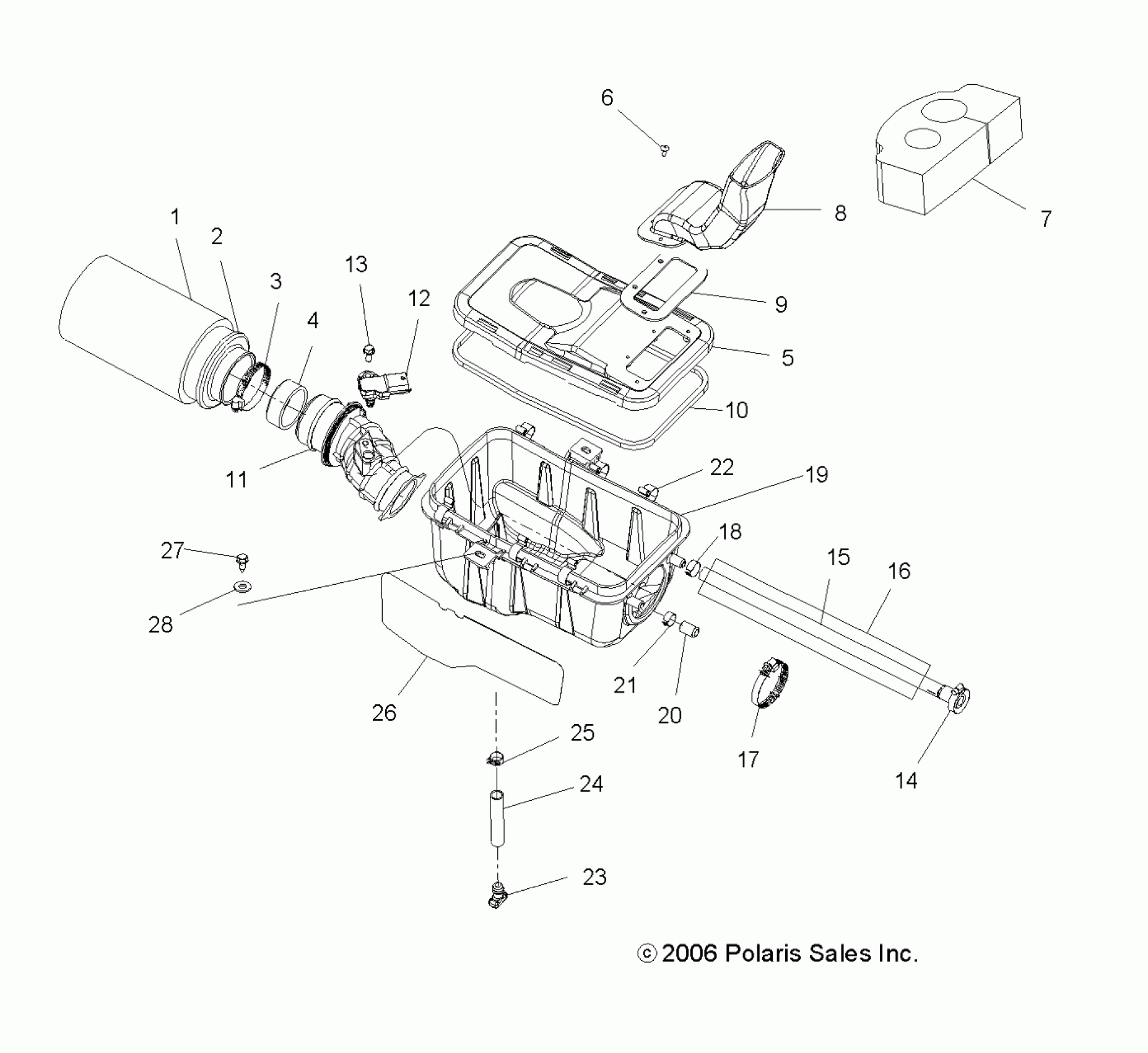

Polaris SPORTSMAN 800 EFI - A07MH76AL/AQ/AX/AY/AZ/A2/MN76AF/AT/AY AIR BOX - A07MH76AL/AQ/AX/AY/AZ/A2MN76AF/AT/AY (49ATVAIRBOX800EFI) Diagram

#

Description
Price

1

Filter, Preclean Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Sleeve, Carburetor, Inner

5433847

$13.59

5

Cover, Air Box [If built before 8/21/06]

5432868

$51.99

5

Asm., Cover/Seal [If built after 8/21/06]

1203567

Unavailable

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Seal, Foam, Large, Intake

5812773

$28.32

8

Duct, Air Inlet, Large

5436969

$79.19

9

Gasket, Intake

5411422

$6.63

10

Seal, Cover [If built after 4/02/07]

5812829

$27.02

10

Seal, Cover [If built before 4/02/07]

5811482

Unavailable

11

Boot, Throttle Body EFI

5412985

$39.99

12

Sensor

2410422

Unavailable

13

Screw

7517658

$5.59

14

Clamp, Hose, Spring

7080694

$6.53

15

Hose, Breather

5412615

Unavailable

16

Sheath, Reflective Sleeve

8450108-34

Unavailable

17

Clamp, Narrow Band

7080511

$4.79

18

Clamp, Hose

7080699

$1.59

19

Box, Air

5433678

$127.99

20

Cap, End

5433396

$4.79

21

Clamp, Hose

7080534

$1.59

22

CLIP-AIR BOX

5242044

$9.59

23

Plug, Trap

5432377

Unavailable

24

Line, Fuel

8450059-150

Unavailable

25

Clamp, Hose

7080650

$3.99

26

Foil

5813042

$19.99

27

Screw

7515179

$2.39

28

Washer, Flat

7555859

$1.49
