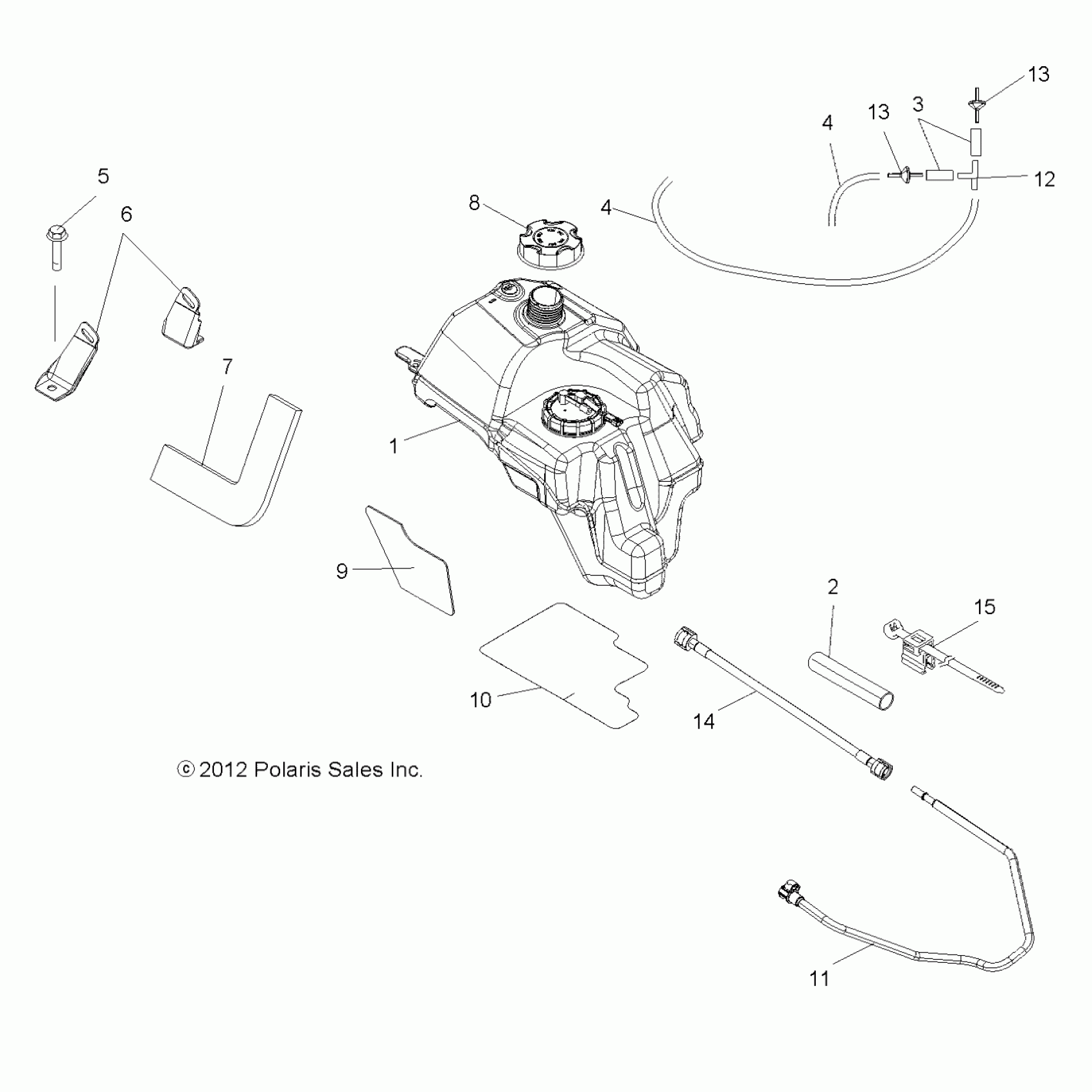

Polaris SPORTSMAN 800 EFI 6X6 - A14CF76AA BODY, FUEL TANK ASM. - A14CF76AA (49ATVFUEL126X6) Diagram

#

Description
Price

1

ASM., TANK, FUEL [INCL. FOIL, PUMP]

2520865

Unavailable

1

KIT, FUEL PUMP [INCL. FUEL PUMP ASM., GASKET, NUT, CLEANING PAD, INSTRUCTIONS]

2204308

$519.99

2

SLEEVE, TUBE, TWIST

5521922

$9.52

3

LINE, OIL

8450061-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

4

LINE, FUEL

8360009-600

Unavailable

5

SCREW

7517219

$4.76

6

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

6

BRACKET, FUEL COVER MOUNT, RH

5247185

$49.99

7

SEAL, FOAM

5812265

$28.32

8

CAP-GAS TANK

5439075

$24.27

9

FOIL

5813282

$8.99

10

FOIL

5813218

$10.99

11

LINE, FUEL, HARD

2520820

$56.65

12

FITTING, T

7052048

$3.97

13

VALVE, CHECK, VENT

7051011

Unavailable

13

VALVE, CHECK, VENT

7051011

Unavailable

14

LINE, FUEL, SOFT

2520821

$56.65

15

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65
