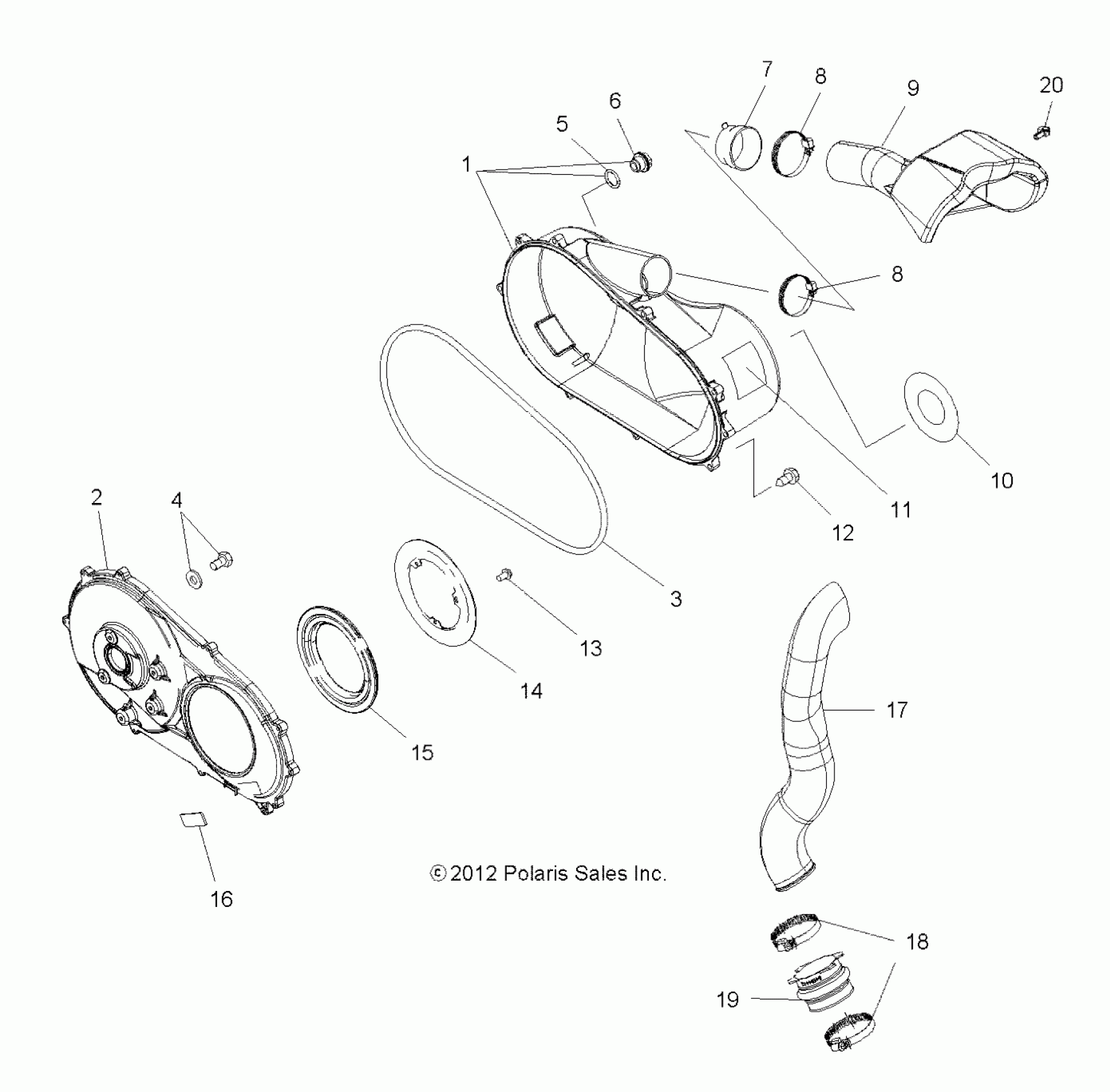

Polaris SPORTSMAN 800 EFI 6X6 - A14CF76AA BODY, CLUTCH COVER and DUCTING - A14CF76AA (49ATVCLUTCHCVR136X6) Diagram

ASM., CLUTCH COVER, OUTER [INCL. 4,5,6, COVER]

2633926

$175.99

KIT, INNER CLUTCH COVER [INCL. 3,12,15,16]

2201955

$140.79

SEAL, COVER, CLUTCH, OUTER

5521738

$42.46

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

BOOT, DUCT

5412636

$23.99

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

DUCT, CLUTCH OUTLET

5436954

$167.19

DECAL, AUTOMATIC TRANSMISSION, EBS

7172747

Unavailable

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

SCREW

7519849

$3.19

SCREW

7517867

$1.59

BRACKET, RETAINER, SEAL, PLATED

5244527

$31.99

SEAL, COVER, CLUTCH, INNER

5412635

$43.99

STOPPER, INNER CLUTCH COVER

5412675

$8.79

DUCT, CLUTCH AIR INLET

5439724

$145.19

CLAMP, NARROW BAND

7080909

$7.99

BOOT, CLUTCH INTAKE

5412634

$11.19

CLIP, SILENCER BOX

7670102

$2.39
