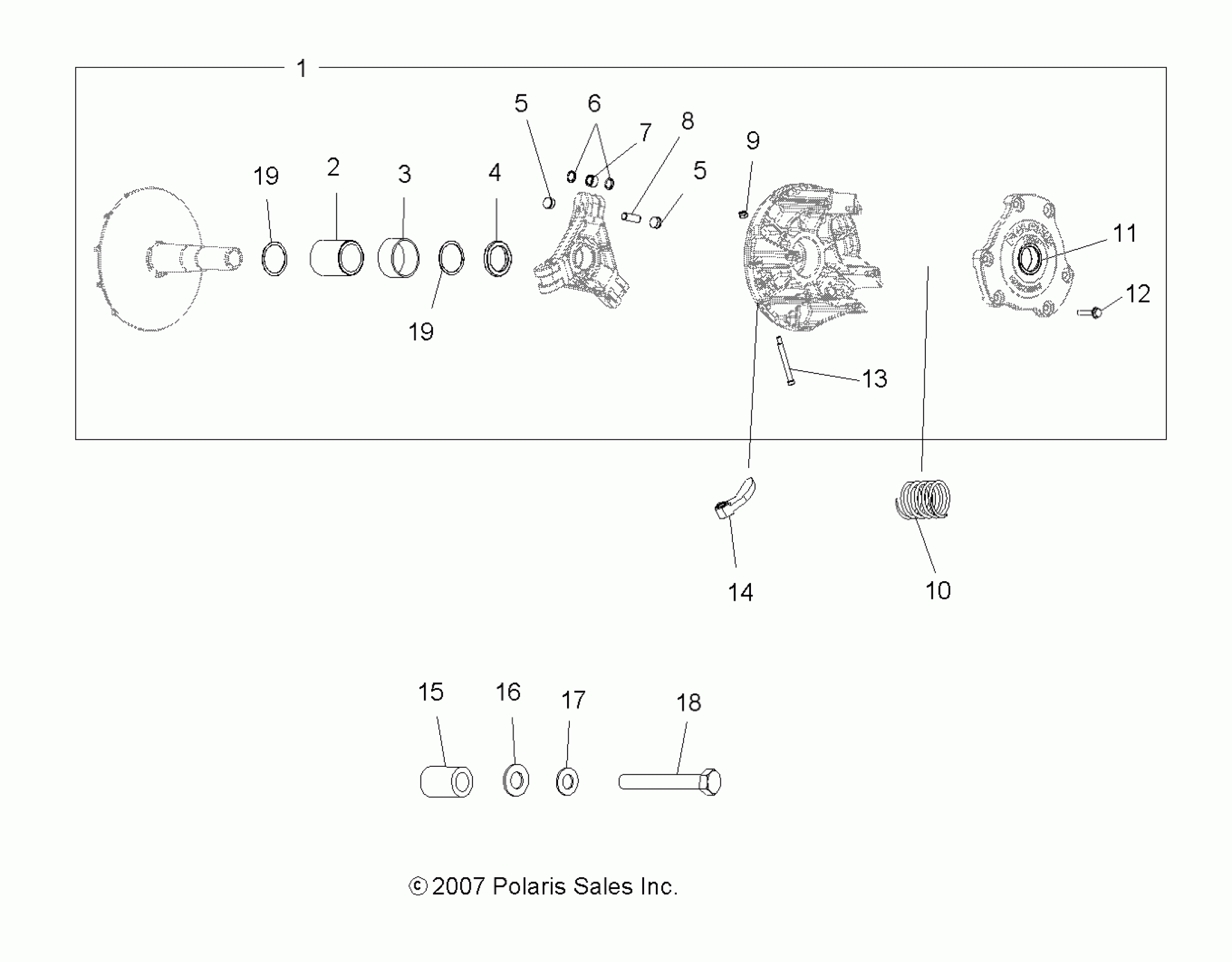

Polaris SPORTSMAN 800 EFI 6X6 - A13CF76AA DRIVE TRAIN, PRIMARY CLUTCH - A13CF76AA (49ATVCLUTCH08SP800EFI) Diagram

#

Description
Price

1

ASM., CLUTCH [INCL. 1-9,11-13.19]

1322749

$719.99

2

ASM., CLUTCH

1520836

$175.74

3

BEARING

3514492

$31.75

4

SPACER

5632060

$59.99

5

BUTTON, CLUTCH

5439254

$8.08

5

BUTTON, CLUTCH

5439254

$8.08

6

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.38

9

NUT, FLEXLOC

7541906

$3.17

10

SPRING, CLUTCH

7043372

$48.56

11

Bearing, Cover

3576510

$9.52

12

SCREW

7518062

$4.76

13

BOLT, SHOULDER

7512266

$3.17

14

Weight, Shift, 21-74, PM

5632117

$32.37

15

BUSHING-.437 X.770 X.50

5430261

$7.14

16

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

17

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

18

BOLT

7519287

$34.99

19

WASHER-CLUTCH,VESPEL

7556335

$6.35

19

WASHER-CLUTCH,VESPEL

7556335

$6.35
