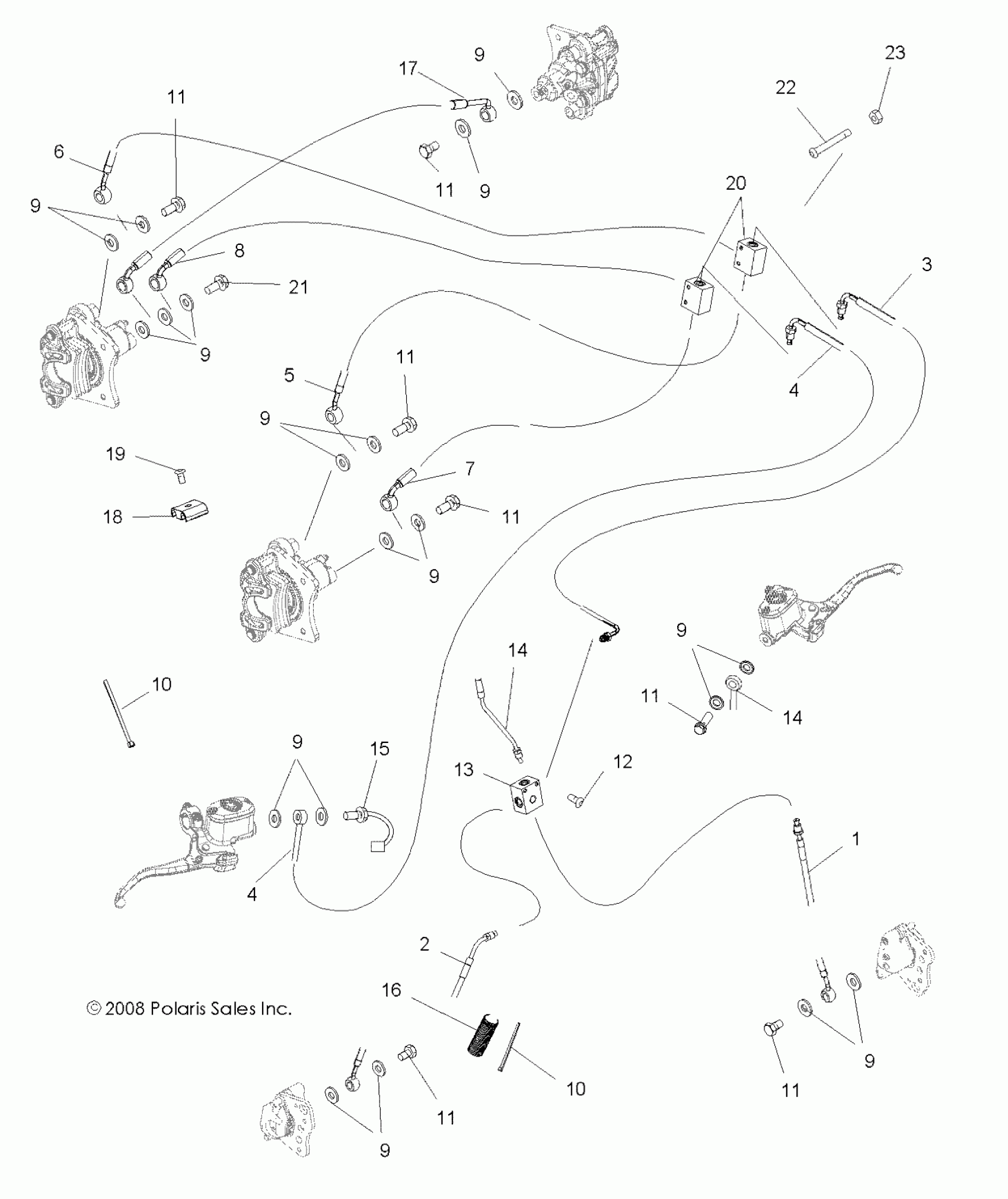

Polaris SPORTSMAN 800 EFI 6X6 - A13CF76AA BRAKES, BRAKE LINES - A13CF76AA (49ATVBRAKELINE096X6) Diagram

#

Description
Price

1

LINE, BRAKE, FRONT, LH

1910838

$76.89

2

LINE, BRAKE, FRONT, RH

1910839

$76.89

3

LINE, BRAKE, LH TO JB

1911407

Unavailable

4

LINE, BRAKE, RH TO JB

1911408

$125.86

4

LINE, BRAKE, RH TO JB

1911408

$125.86

5

LINE, BRAKE, JB TO SERV 1

1911409

$80.94

6

LINE, BRAKE, JB TO SERV 2

1911410

$64.75

7

LINE, BRAKE, JB TO AUX. 1

1911411

$80.94

8

LINE, BRAKE, JB TO AUX. 2

1911412

Unavailable

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

9

SEAL

5413212

$4.84

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

11

BOLT, BANJO

1910499

$5.56

11

BOLT, BANJO

1910499

$5.56

11

BOLT, BANJO

1910499

$5.56

11

BOLT, BANJO

1910499

$5.56

11

BOLT, BANJO

1910499

$5.56

11

BOLT, BANJO

1910499

$5.56

11

BOLT, BANJO

1910499

$5.56

12

SCREW

7512024

$4.76

13

FITTING, CROSS

7052292

$39.68

14

LINE, BRAKE, POD

1910913

$64.75

14

LINE, BRAKE, POD

1910913

$64.75

15

SWITCH, PRESSURE, BRAKE W/CONNECTOR

4010758

$68.79

16

CONDUIT

8360031-145

Unavailable

17

LINE, CALIPER TO CALIPER

1911479

$80.94

18

CLIP, RETAINING, DUAL LINE

7670126

$4.76

19

Screw

7517756

$1.19

20

FITTING-TEE,BRAKE

7052293

$59.52

21

BOLT, BANJO

1911009

$23.81

22

Screw

7518157

$5.99

23

NUT-M5X.8,HX NYL-Y

7546601

$1.19
