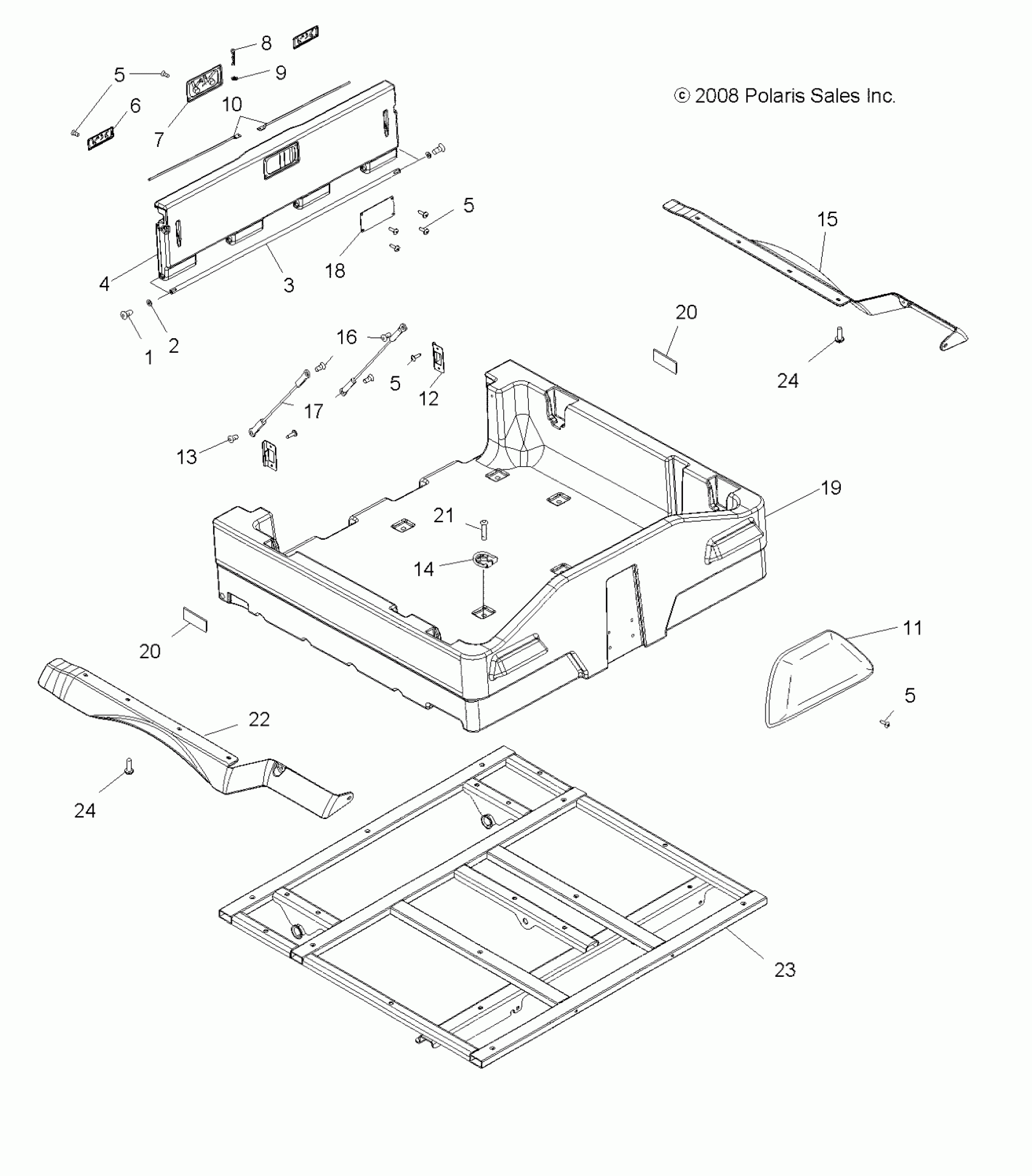

Polaris SPORTSMAN 800 EFI 6X6 - A13CF76AA BODY, DUMP BOX - A13CF76AA (49ATVBOX13SP6X6) Diagram

#

Description
Price

1

SCREW

7515177

$3.17

2

WASHER

7558221

$2.38

3

ROD, HINGE

5132358

$52.60

4

TAILGATE

5433388

$404.75

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

5

SCREW

7517561

$1.59

6

LATCH

5433656

$64.75

7

LATCH, PADDLE

5433655

$83.33

8

PIN, HITCH

7661644

$2.38

9

WASHER, RUBBER

7556143

$4.76

10

SHAFT, LATCH

5132373

$12.13

11

COVERING, BACKREST, BLACK

2681664-070

$51.59

11

ASM., BACKREST, BLACK [INCL. COVER]

2684915-070

$182.13

12

Bracket, Box Latch

5243304

$14.56

13

Screw

7517938

$1.19

14

Ring, Tie Down

7081101

$7.94

15

GUARD, MUD, BOX, BLACK, LH

5437873-070

Unavailable

16

SCREW

7517742

$5.56

17

Cable, Tailgate

7080881

$40.46

18

Cover, Tailgate, Black

5244068-067

$39.99

19

BOX, MOLDED, BLACK [INCL. WARNING DECAL]

5439200

Unavailable

20

DECAL-REFLECT.2.88,RED

7079925

$8.08

20

DECAL-REFLECT.2.88,RED

7079925

$8.08

21

SCREW

7517686

$1.59

22

GUARD, MUD, BOX, BLACK, RH

5437874-070

$154.99

23

SUPPORT, BOX, BLACK

1016881-067

$594.99

24

SCREW

7519047

Unavailable

24

SCREW

7519047

Unavailable
