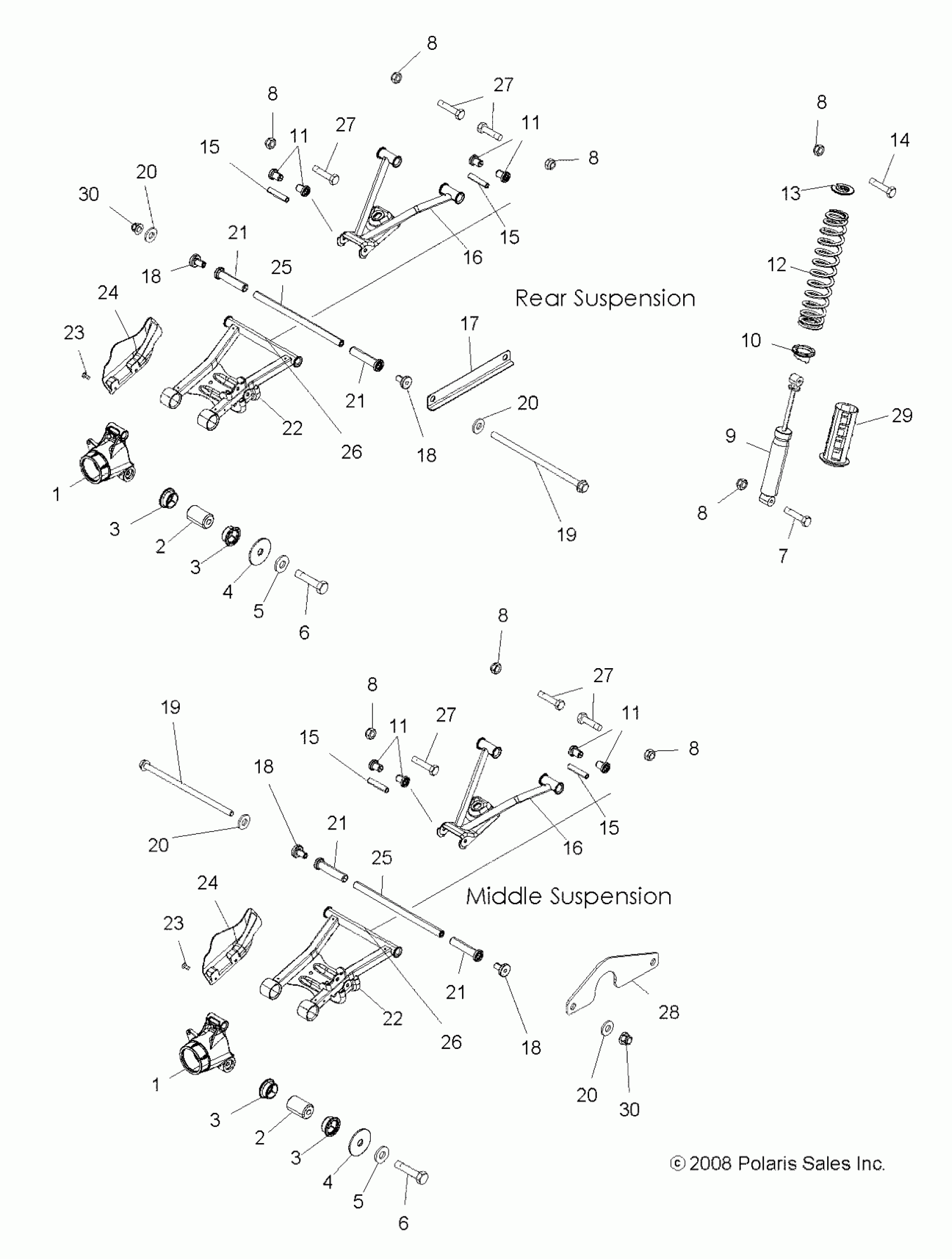

Polaris SPORTSMAN 800 EFI 6X6 - A10CL76AA SUSPENSION, REAR - A10CL76AA (49ATVSUSPRR096X6) Diagram

#

Description
Price

1

CARRIER, WHEEL BEARING

5135563

$71.99

1

CARRIER, WHEEL BEARING

5135563

$71.99

2

BUSHING, BEARING CARRIER

5632291

$23.99

2

BUSHING, BEARING CARRIER

5632291

$23.99

3

Bushing, Control, Lower

5434550

$4.62

3

Bushing, Control, Lower

5434550

$4.62

3

Bushing, Control, Lower

5434550

$4.62

3

Bushing, Control, Lower

5434550

$4.62

4

WASHER, FLAT

7555740

$1.59

4

WASHER, FLAT

7555740

$1.59

5

WASHER-LOCK, 7/16-B

7552614

$1.59

5

WASHER-LOCK, 7/16-B

7552614

$1.59

6

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

6

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

7

Screw

7515415

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

8

Nut, Nylok

7542439

$1.49

9

SHOCK, REAR

7043451

$227.99

10

CAM, ADJUSTING, SPRING

5631014

$31.99

11

Bushing, A-Arm, Short

5434548

$2.38

11

Bushing, A-Arm, Short

5434548

$2.38

11

Bushing, A-Arm, Short

5434548

$2.38

11

Bushing, A-Arm, Short

5434548

$2.38

12

Spring, Compression

7041986-067

$55.99

13

RETAINER-SPRING,STEEL

5251753

$10.39

14

Screw [Built 3/01/10 and Before]

7515433

$1.59

14

Screw [Built 3/02/10 and After]

7515415

$1.49

15

SHAFT, A-ARM, SHORT

5020826

$11.99

15

SHAFT, A-ARM, SHORT

5020826

$11.99

15

SHAFT, A-ARM, SHORT

5020826

$11.99

15

SHAFT, A-ARM, SHORT

5020826

$11.99

16

Arm, Control, Upper, Black, LH

1014320-067

$95.99

16

Arm, Control, Upper, Black, RH

1014321-067

$95.99

16

Arm, Control, Upper, Black, LH

1014320-067

$95.99

16

Arm, Control, Upper, Black, RH

1014321-067

$95.99

17

Strap, Gearcase, Rear, Black

5252941-067

$31.99

18

BUSHING, PIVOT, WEAR

5136760

$8.79

18

BUSHING, PIVOT, WEAR

5136760

$8.79

18

BUSHING, PIVOT, WEAR

5136760

$8.79

18

BUSHING, PIVOT, WEAR

5136760

$8.79

19

SCREW

7519065

$19.99

19

SCREW

7519065

$19.99

20

WASHER, FLAT

7556153

$1.99

20

WASHER, FLAT

7556153

$1.99

20

WASHER, FLAT

7556153

$1.99

20

WASHER, FLAT

7556153

$1.99

21

BUSHING, CONTROL ARM

5436833

$5.19

21

BUSHING, CONTROL ARM

5436833

$5.19

21

BUSHING, CONTROL ARM

5436833

$5.19

21

BUSHING, CONTROL ARM

5436833

$5.19

22

CONTROL, LOWER, BLACK, RH

1015889-067

$119.99

22

CONTROL, LOWER, BLACK, LH

1015888-067

$119.99

22

CONTROL, LOWER, BLACK, RH

1015889-067

$119.99

22

CONTROL, LOWER, BLACK, LH

1015888-067

$119.99

23

Screw

7512084

$1.49

23

Screw

7512084

$1.49

24

SHIELD, CV, REAR, BLACK, LH

5435008-070

$23.99

24

SHIELD, CV, REAR, BLACK, RH

5435009-070

$23.99

24

SHIELD, CV, REAR, BLACK, LH

5435008-070

$23.99

24

SHIELD, CV, REAR, BLACK, RH

5435009-070

$23.99

25

TUBE, PIVOT

5136759

$31.99

25

TUBE, PIVOT

5136759

$31.99

26

Fitting, Lub

7080433

$1.49

26

Fitting, Lub

7080433

$1.49

27

BOLT

7515472

$2.39

27

BOLT

7515472

$2.39

27

BOLT

7515472

$2.39

27

BOLT

7515472

$2.39

28

STRAP, MID GEAR CASE, BLACK

5252849-067

$51.99

29

Sleeve, Shock Protector

5433551

$39.99

30

NUT

7547344

$1.49

30

NUT

7547344

$1.49
