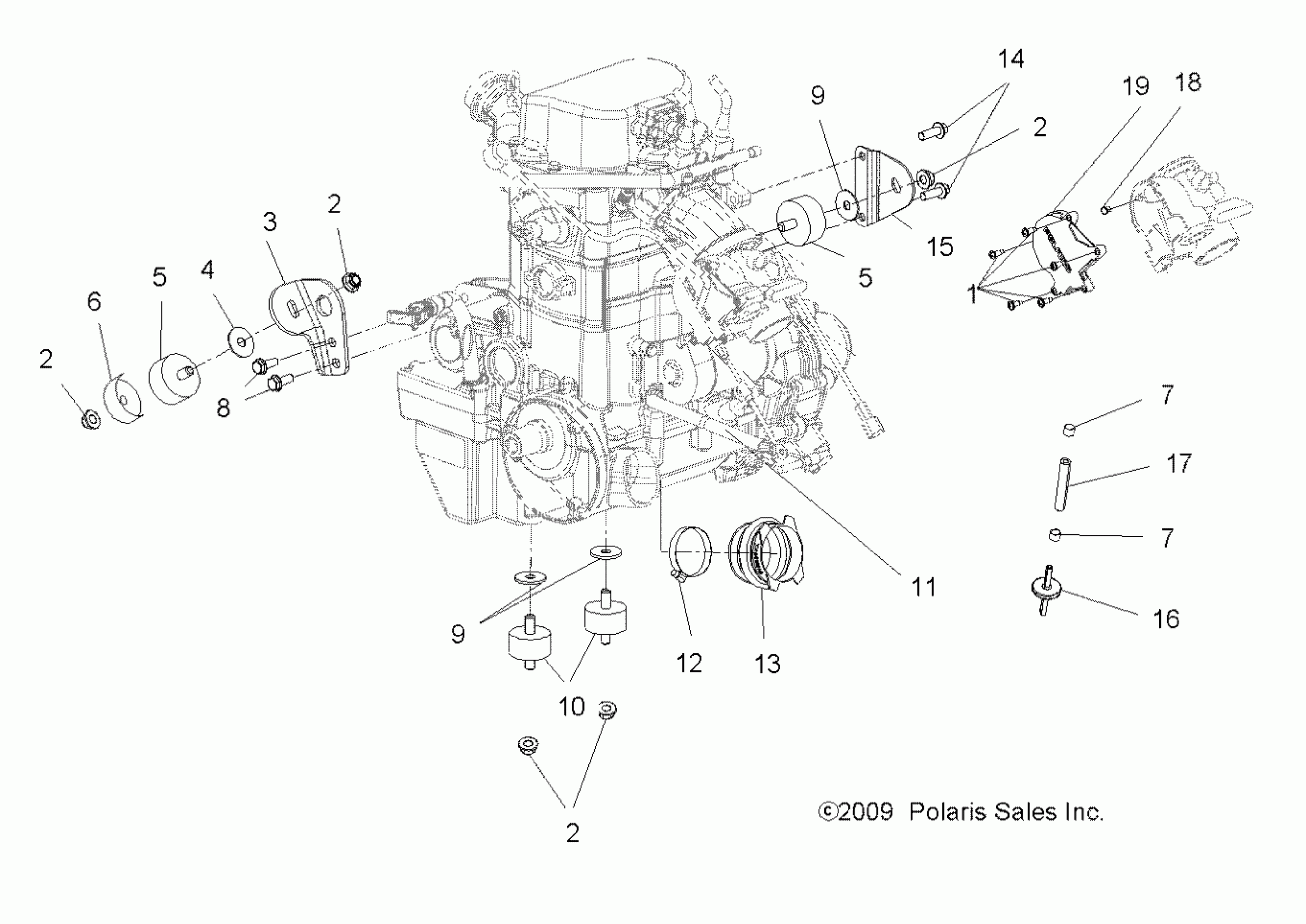

Polaris SPORTSMAN 800 EFI 6X6 - A10CL76AA ENGINE, MOUNTING - A10CL76AA (49ATVENGINEMTG106X6) Diagram

#

Description
Price

1

SCREW

3131515

$10.39

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

2

NUT, FLANGE LOCK

7547108

$4.79

3

MOUNT, ENGINE, LOWER, FRONT, BLACK

5244771-067

$127.59

4

WASHER

7555823

Unavailable

5

ISOLATOR

3022071

$38.60

5

ISOLATOR

3022071

$38.60

6

BRACKET, TORQUE STOP

5245043

$15.83

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

7

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

8

Bolt

7518364

$1.59

9

WASHER, FLAT

7555815

$3.99

9

WASHER, FLAT

7555815

$3.99

10

ISOLATOR

3022076

Unavailable

11

CABLE, BLACK, BATTERY/FRAME

4011139

$43.99

12

CLAMP, NARROW BAND

7080909

$7.99

13

BOOT, INTAKE

5412634

$11.19

14

SCREW

7516734

$3.19

15

BRACKET, MOUNT, ENGINE, TOP

5247368

$43.99

16

VALVE, CHECK

7052038

$10.51

17

HOSE

8450113-04

Unavailable

18

Guide, Throttle Cable

3131514

Unavailable

19

ASM., COVER AND O-RING

1202578

Unavailable
