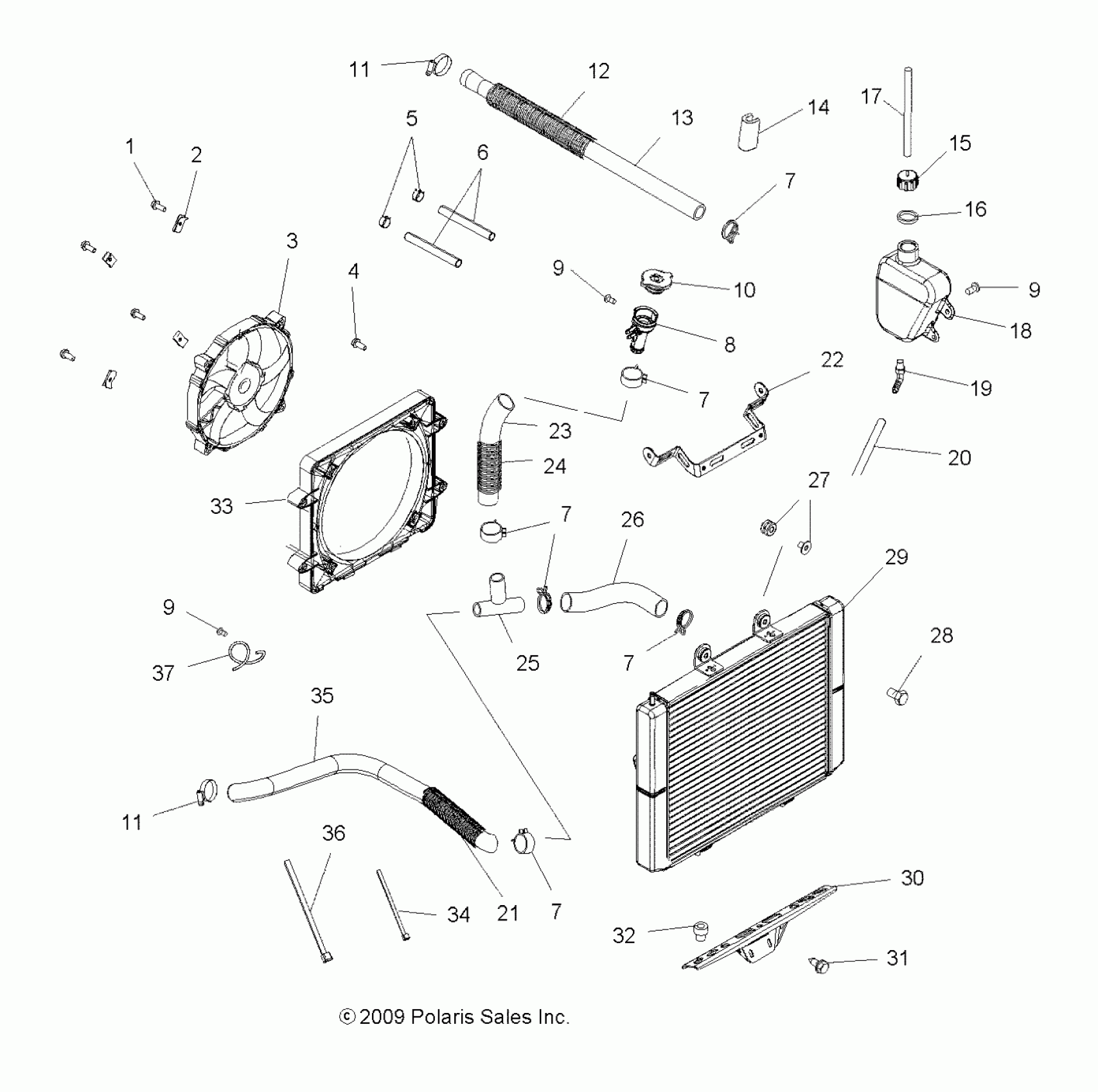

Polaris SPORTSMAN 800 EFI 6X6 - A10CL76AA ENGINE, COOLING SYSTEM - A10CL76AA (49ATVCOOL106X6) Diagram

#

Description
Price

1

SCREW

7516822

$2.39

2

CLIP-"U",M6.0X1.0

7547366

$5.99

3

Asm., Fan [Built 3/16/10 and After]

2410413

$251.99

3

Kit, Fan [Incl. Circuit Breaker][Built 3/15/10 and Before]

2204192

Unavailable

4

Screw w/Washer

7547220

$5.99

5

HOSE CLAMP, RED

7080003

$1.49

6

HOSE

8450120-600

$67.99

7

Clamp, Springband

7080843

$3.99

7

Clamp, Springband

7080843

$3.99

7

Clamp, Springband

7080843

$3.99

7

Clamp, Springband

7080843

$3.99

7

Clamp, Springband

7080843

$3.99

8

FILLER, REMOTE, COOLANT

5438110

Unavailable

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

10

Cap, Pressure

1240508

$48.56

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

11

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

12

CONDUIT, FLEX

5521794-17

Unavailable

13

Hose, Engine, Upper

5413672

$40.46

14

Trim, Edge

5521131

Unavailable

15

CAP, OVERFLOW W/FITTING

5437635

$4.79

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

LINE, FUEL

8360009-600

$40.46

18

TANK-SURGE

5436936

$75.99

19

FITTING, 90 DEGREE

7052065

$7.19

20

Line, Fuel

8450003-1525

$84.99

21

Conduit, Flex

5521287-08

Unavailable

22

Bracket, Radiator Mount, Upper

5246656

Unavailable

23

Hose

5413671

$28.32

24

CONDUIT, FLEX

5521794-17

Unavailable

25

T-CONNECTOR

7052373

$10.39

26

Hose, Lower Radiator

5413673

Unavailable

27

ASM., GROMMET AND INSERT

5413155

$3.99

28

Screw

7515179

$2.39

29

Asm., Radiator

1240521

$421.19

30

Bracket, Radiator, Lower, Black

5245773-067

$144.99

31

SCREW

7517386

$1.49

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

33

SHROUD, FAN

5437845

$47.99

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Hose, Engine, Lower

5413674

$52.60

36

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

37

Retainer, Hose

7042089

$7.03
