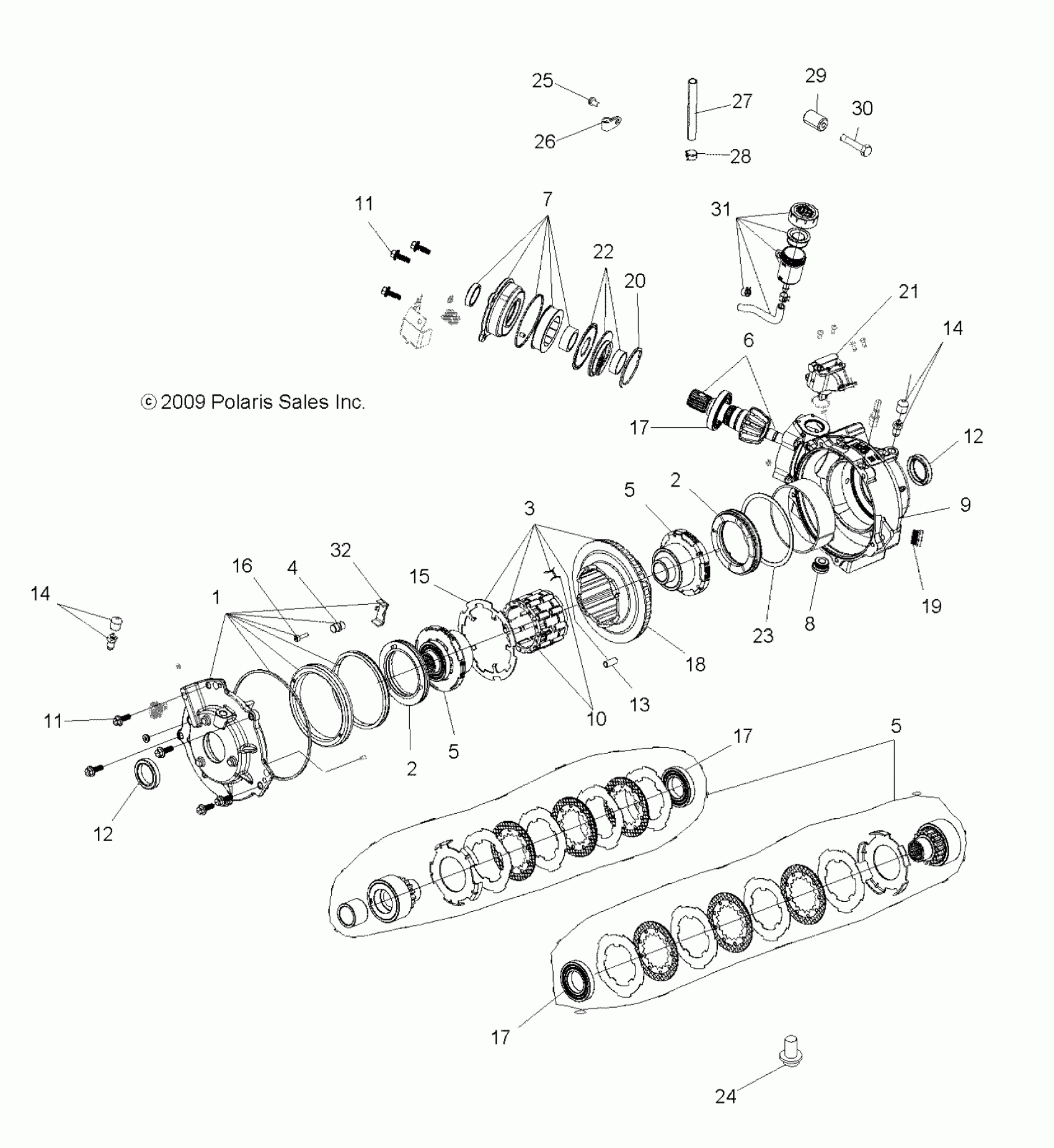

Polaris SPORTSMAN 800 EFI 6X6 - A10CL76AA DRIVE TRAIN, FRONT GEARCASE and MOUNTING (Built 3/05/10 and Before) - A10CL76AA (49ATVGEARCASE1332832) Diagram

#

Description
Price

-

Asm., Gearcase, ADC, Pinless [Incl. 1-23,31]

1332832

Unavailable

1

Asm., Cover, Output, ADC [Incl. Cover, Coil, Thrust Plate, Seals, Vent]

3234588

Unavailable

2

Piston

3234589

$63.99

2

Piston

3234589

$63.99

3

Asm., Clutch, ADC, Pinless [Incl. Cage, Rolls, Armature Plate, Ring Gear, Clips]

3235049

Unavailable

4

ASM., THRUST BUTTON [INCL. SEAL]

3234594

Unavailable

5

Asm., Hub, M/F, ADC [Incl. Bearings, Plates, Hubs]

3235048

Unavailable

5

Asm., Hub, M/F, ADC [Incl. Bearings, Plates, Hubs]

3235048

Unavailable

5

Asm., Hub, M/F, ADC [Incl. Bearings, Plates, Hubs]

3235048

Unavailable

6

Asm., Pinion Gear, ADC [Incl. Gear, Bushing]

3234599

$535.22

7

ASM., COVER, INPUT [INCL. SEALS, BEARING, COIL, GROMMET]

3234748

$187.99

8

ASM., DRAIN PLUG, MAGNETIC [INCL. MAGNET

3234412

$39.99

9

Asm., Gearcase, ADC [Incl. Seals, Fill Plug, Vents, Bushing]

3234597

$824.99

10

Asm., Roll Cage [Incl. Roll Cage, Clips]

3234466

$209.99

10

Asm., Roll Cage, Aluminum, NT [Opt]

3235263

$570.70

11

Kit, Bolt, ADC [Incl. Hardware]

3234592

$23.99

11

Kit, Bolt, ADC [Incl. Hardware]

3234592

$23.99

12

KIT, REPAIR, SEAL [INCL. SEALS, O-RINGS, SQUARE RING]

3234593

$75.99

12

KIT, REPAIR, SEAL [INCL. SEALS, O-RINGS, SQUARE RING]

3234593

$75.99

13

KIT-ROLLER [INCL. COMPLETE ROLL SET]

3234393

$111.84

14

Asm., Breather Tube

3234431

$31.99

14

Asm., Breather Tube

3234431

$31.99

15

PLATE, ARMATURE

3234407

$107.99

16

SET, SCREW

3234408

$27.99

17

Bearing

3234390

$35.99

17

Bearing

3234390

$35.99

17

Bearing

3234390

$35.99

18

Housing, Clutch, ADC, Pinless

3235047

Unavailable

19

PLUG, OIL FILL

3234414

Unavailable

20

Ring, Retaining, Internal

3234416

$10.39

21

PUMP

3234429

Unavailable

22

KIT, CAM & ARMATURE

3234434

$135.99

23

SPACER-RING GEAR

3234437

$19.99

24

SCREW [GEARCASE MOUNTING]

7517632

$5.59

25

SCREW

7512024

$4.79

26

CLAMP, HOSE

7080693

$5.59

27

Line, Fuel

8450003-1525

Unavailable

28

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

Spacer

5437162

$1.59

30

Screw

7518306

$3.99

31

Reservoir, Remote, ADC

3234433

Unavailable

32

Plate, Thrust

3234595

Unavailable
