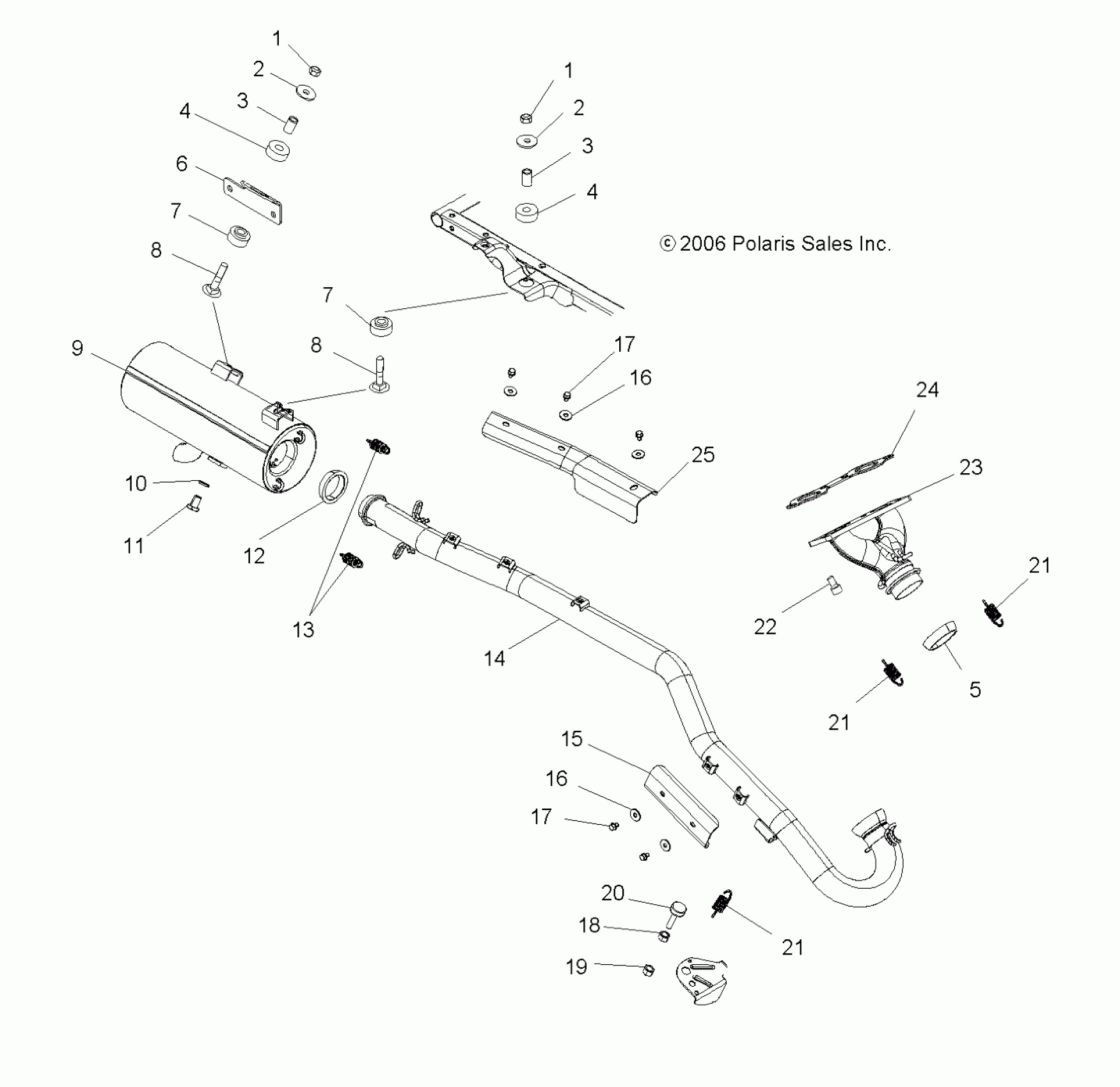

Polaris SPORTSMAN 700 EFI - A07MH68AX/AY/AZ EXHAUST SYSTEM - A07MH68AX/AY/AZ (49ATVEXHAUST07700) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

1

NUT-5/16-18 NYLOK-Y

7542324

$0.79

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

BUSHING

5010192

$6.35

3

BUSHING

5010192

$6.35

4

WASHER, RUBBER

5410436

$1.59

4

WASHER, RUBBER

5410436

$1.59

5

Seal

3610119

$20.22

6

BRACKET, SILENCER, FRAME

5241663

$10.51

7

DAMPENER, VIBRATION

5412659

$3.97

7

DAMPENER, VIBRATION

5412659

$3.97

8

BOLT

7515316

$2.38

8

BOLT

7515316

$2.38

9

Silencer, Exhaust, Black

1261270-029

$314.99

10

WASHER, CLEAN OUT

7556230

$1.19

11

BOLT

7512666

$2.38

12

Seal, Exhaust Socket

3610047

$36.41

13

SPRING

7041804

$8.89

14

Pipe, Exhaust, Black

1261242-029

$239.99

15

SHIELD, HEAT, EXHAUST

5244014

$39.99

16

Washer

7555935

$2.38

16

Washer

7555935

$2.38

17

Screw

7515197

$1.19

17

Screw

7515197

$1.19

18

Nut, Hex

7542301

$1.59

19

NUTSERT

7547101

$9.52

20

Mount, Torque Stop

3110064

Unavailable

21

SPRING-EXHAUST

7041789

$8.89

21

SPRING-EXHAUST

7041789

$8.89

21

SPRING-EXHAUST

7041789

$8.89

22

Screw

7518234

Unavailable

23

Manifold, Black

1261564-029

$104.99

24

GASKET

5811511

$48.56

25

Shield, Heat, Exhaust

5245502

$29.99
