Partiron

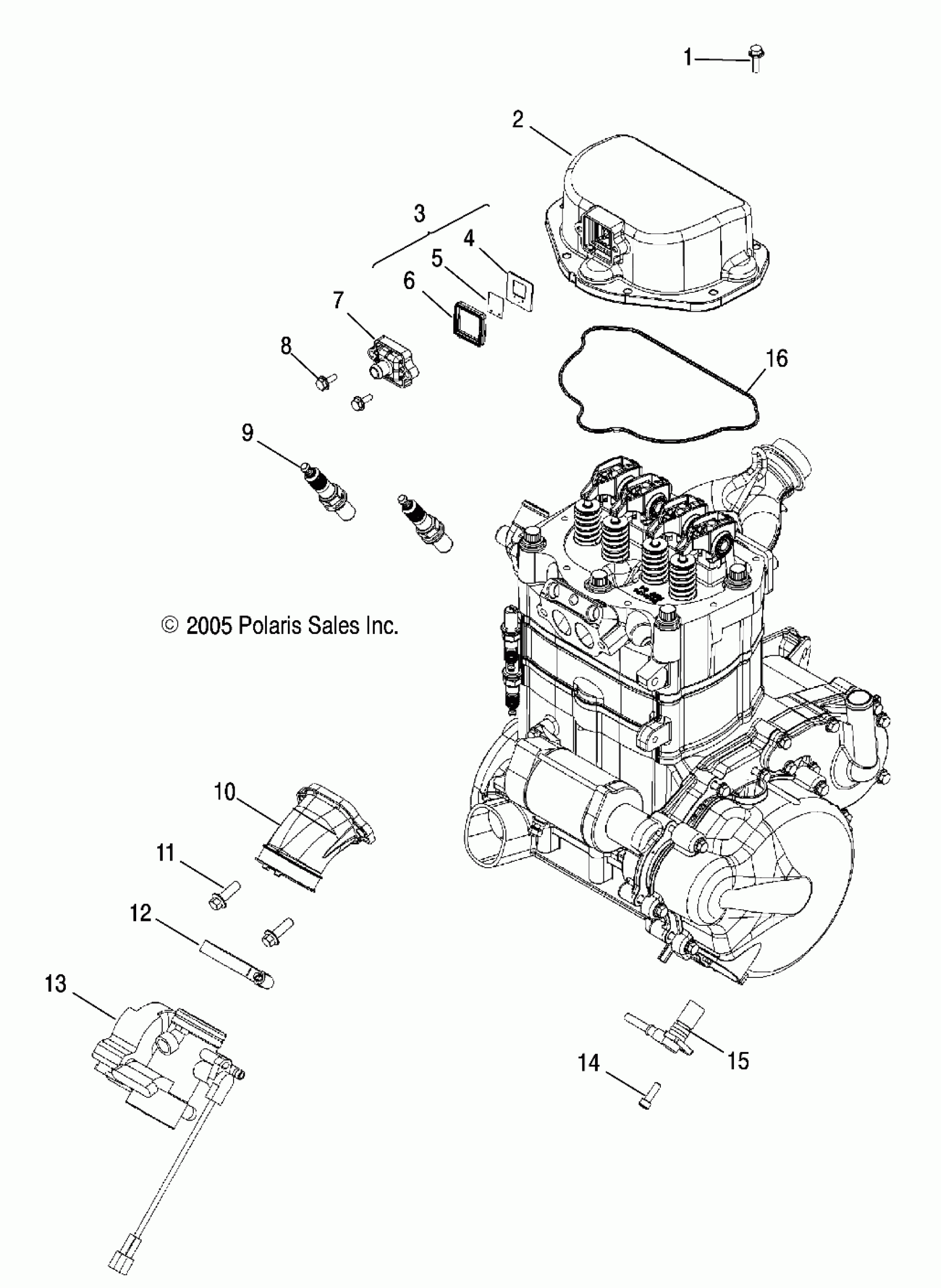

Polaris SPORTSMAN 700 EFI - A07MH68AX/AY/AZ ENGINE, THROTTLE BODY MOUNTING - A07MH68AX/AY/AZ (4999200229920022D08) Diagram

#

Description
Price

1

SCREW

7516822

$2.39

2

Cover, Valve

5134427

Unavailable

3

ASM-REED W/GASKET [Incl. 4-6]

3021352

$28.32

4

Plate, Reed Breather

-------

Unavailable

5

REED, CASE BREATHER

-------

Unavailable

6

GASKET, BREATHER

-------

Unavailable

7

Cover, Breather

5432533

Unavailable

8

SCREW

7517277

$3.19

9

PLUG, SPARK, CHAMPION RC7YC3

3021671

$3.99

10

Adapter

1253527

$63.99

11

Screw

7518488

Unavailable

12

Clamp, Hose

7081193

Unavailable

13

Asm., Body, Throttle

1202836

Unavailable

13

Sensor, Throttle Position [Must also order O-Ring]

2410342

Unavailable

13

O-Ring, TPS [Used w/2410342]

5413812

$1.99

14

Screw

7517384

$8.79

15

Sensor, Crank Position

2410513

$99.99

16

Seal, Valve Cover

5412632

Unavailable
