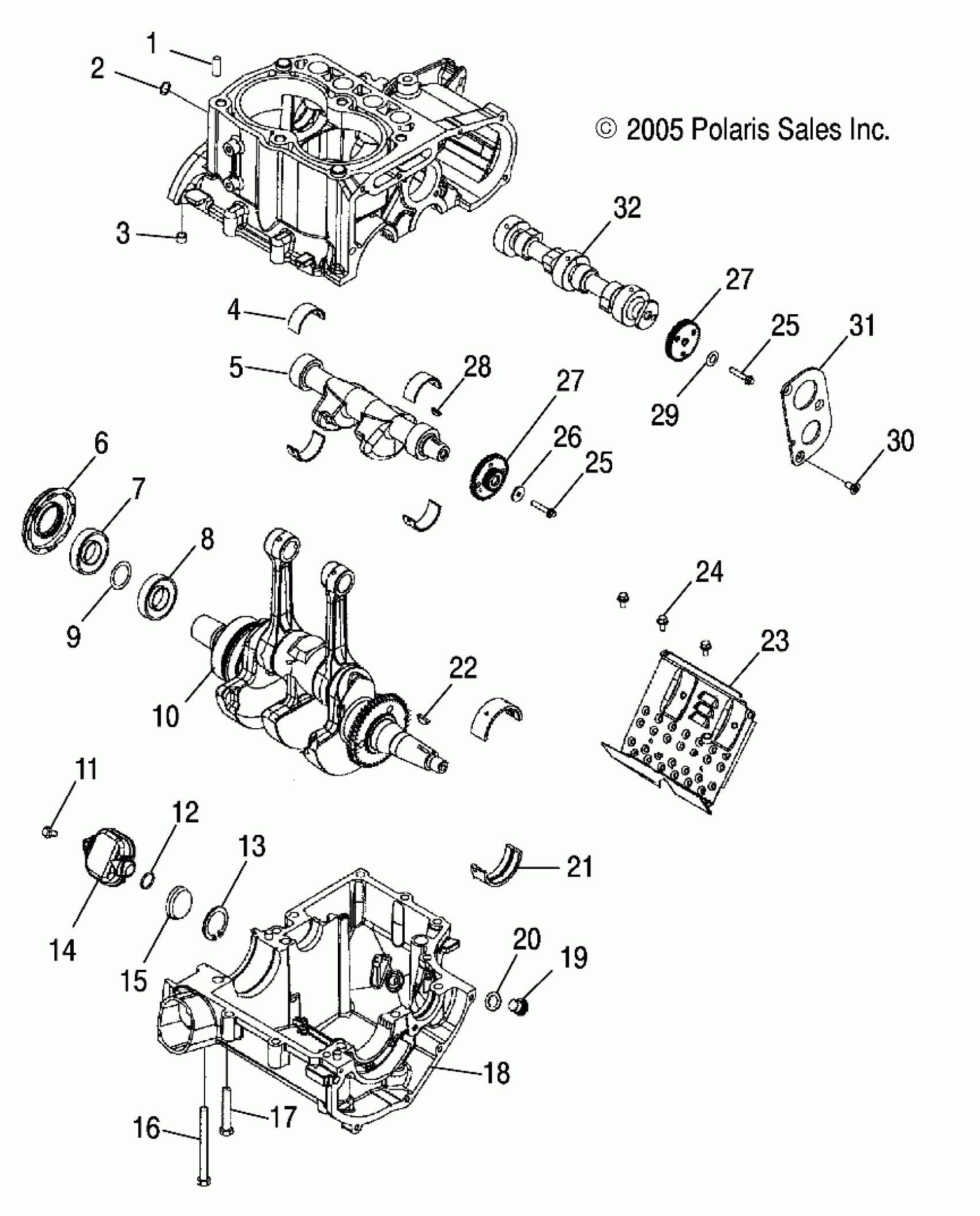

Polaris SPORTSMAN 700 EFI - A07MH68AX/AY/AZ ENGINE, CRANKCASE and CRANKSHAFT - A07MH68AX/AY/AZ (4999200229920022D06) Diagram

#

Description
Price

1

DOWEL

7661175

$5.59

2

PLUG-EXPANSION,19MM

7051530

$7.19

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

4

BEARING

5132753

Unavailable

5

Shaft, Balance

5132396

$275.99

6

Seal, Flange

5412676

$39.99

7

BEARING, BALL

3514361

Unavailable

8

BEARING, BALL

3514318

$43.99

9

BUSHING

7556194

$3.99

10

Kit, Crankshaft [Incl. Complete Crank and Crankshaft Gear]

2203067

Unavailable

11

BOLT

7516603

$10.39

12

SEAL, O-RING

5812016

$3.19

13

RING, RETAINING

7710512

$3.99

14

ASM., OIL PICKUP

1202663

$51.99

15

PLUG

3060004

$15.19

16

SCREW

7517792

$2.39

17

SCREW

7517793

$5.59

18

Kit, Crankcase

2203300

Unavailable

19

PLUG, SOCKET

7052306

$15.37

20

Washer

5812232

$1.59

21

Bearing, Main

3585704

$28.56

22

KEY, WOODRUFF

7721117

$24.99

23

PLATE, BAFFLE

5211785

$39.99

24

SCREW

7518045

$10.39

25

SCREW

7517865

$11.19

25

SCREW

7517865

$11.19

26

WASHER-RETAINING,8.5X28X3

7555982

Unavailable

27

KIT, GEAR SET

2203106

Unavailable

27

KIT, GEAR SET

2203106

Unavailable

28

KEY, WOODRUFF

7721131

$23.99

29

WASHER, SPRING

7556183

$9.59

30

SCREW

7517598

$11.33

31

PLATE, THRUST

5244286

$51.99

32

Kit, Camshaft

2202723

$539.99
