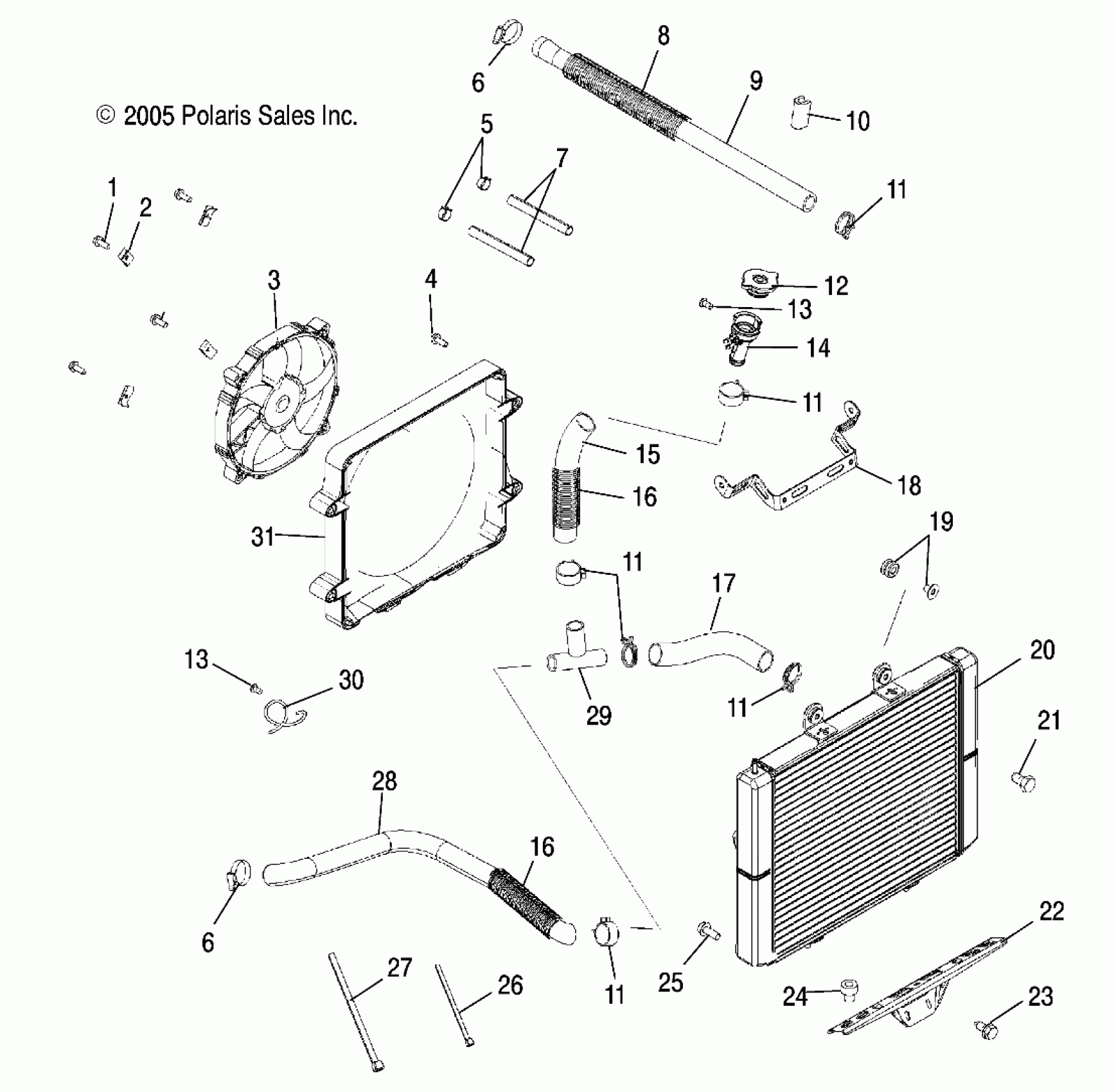

Polaris SPORTSMAN 700 EFI - A07MH68AX/AY/AZ COOLING SYSTEM - A07MH68AX/AY/AZ (4999200229920022A11) Diagram

#

Description
Price

1

Bolt

7517975

$5.56

2

U-Clip

7547197

$6.19

3

Asm., Fan [If built after 10/05/06]

2410413

$267.13

3

Asm., Fan [If built before 10/05/06]

2410366

Unavailable

4

Screw w/Washer

7547220

Unavailable

5

HOSE CLAMP, RED

7080003

$1.19

6

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

6

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

7

Hose, Coolant

8450120

Unavailable

8

Guard, Hose

5521597

Unavailable

9

Hose, Engine, Upper

5412391

$44.51

10

Trim, Edge

5521131

Unavailable

11

Clamp, Spring

7081288

Unavailable

11

Clamp, Spring

7081288

Unavailable

11

Clamp, Spring

7081288

Unavailable

11

Clamp, Spring

7081288

Unavailable

11

Clamp, Spring

7081288

Unavailable

12

Cap, Pressure

1240044

$48.56

13

Screw

7512084

$1.19

13

Screw

7512084

$1.19

14

Filler, Neck

5435196

Unavailable

15

Hose, Filler Neck

5412311

$21.99

16

Guard, Hose [If built after 10/05/06]

5521749

$3.81

16

Guard, Hose [If built after 10/05/06]

5521749

$3.81

17

Hose, Lower Radiator

5412392

Unavailable

18

Bracket, Radiator Mount, Upper

5246656

Unavailable

19

ASM., GROMMET AND INSERT

5411975

$3.17

20

Radiator [If built before 10/05/06]

1240190

$461.41

20

Radiator [If built after 10/05/06]

1240301

$461.41

21

Screw

7515179

$2.38

22

Bracket, Radiator, Lower, Black

5245773-067

Unavailable

23

SCREW

7517386

$1.19

24

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

25

Valve, Drain

7052296

Unavailable

26

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

27

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

28

Hose, Engine, Lower

5412585

$56.65

29

T-Connector

7052397

$23.81

30

Retainer, Hose

7042089

$6.98

31

Shroud, Fan

5434853

Unavailable
