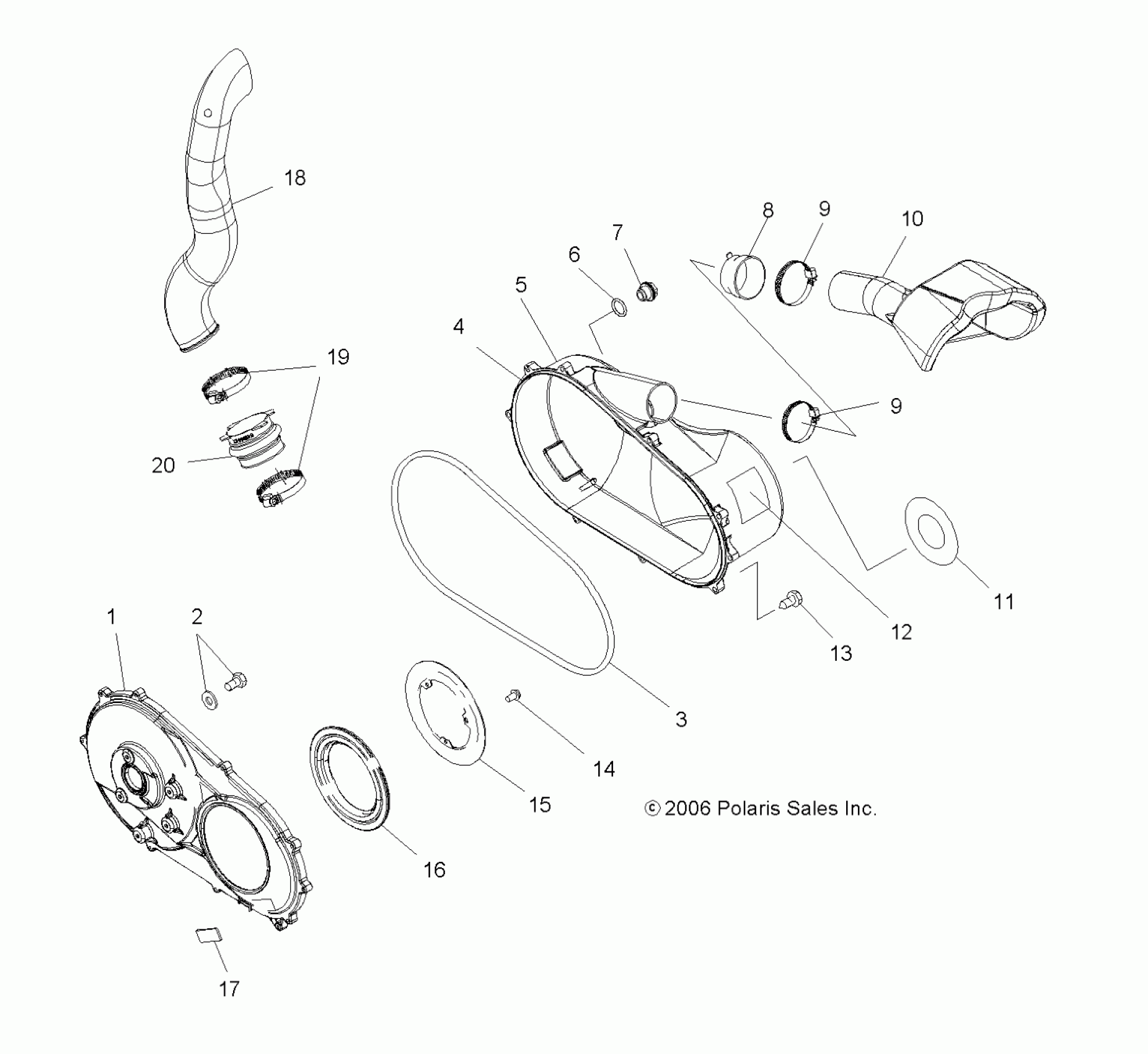

Polaris SPORTSMAN 700 EFI - A07MH68AX/AY/AZ CLUTCH, COVER - A07MH68AX/AY/AZ (49ATVCLUTCHCVR07700) Diagram

Kit, Inner Clutch Cover [Incl. 13]

2201955

$140.79

SCR-TFHL-1/4-20X0.88 G5 Z SEMS

7517599

$5.59

Seal, Cover, Clutch, Outer [If built after 10/17/06]

5521738

$42.46

Seal, Cover, Clutch, Outer [If built before 10/17/06]

5521578

Unavailable

Asm., Cover, Clutch, Outer [Incl. 5-7]

2633262

$169.87

Asm., Clutch Cover, Outer

2633262

$169.87

O RING-.364X.504X.07

5410542

Unavailable

PLUG-DRAIN,CLUTCH COVER

5434264

$5.59

BOOT, DUCT

5412636

$23.99

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

CLAMP-BAND,NARROW 70-90MM

7081279

$3.19

DUCT, CLUTCH OUTLET

5436954

$167.19

DECAL, AUTOMATIC TRANSMISSION

7172746

Unavailable

DECAL, WARNING, CLUTCH COVER

7172563

Unavailable

SCREW

7512094

$1.59

SCREW

7517867

$1.59

Bracket, Retainer, Seal, Black

5244527-067

Unavailable

SEAL, COVER, CLUTCH, INNER

5412635

$43.99

STOPPER, INNER CLUTCH COVER

5412675

$8.79

Duct, Clutch, Air Inlet

5434044

$114.99

CLAMP, HOSE

7080451

$7.19

BOOT, CLUTCH INTAKE

5412634

$11.19
