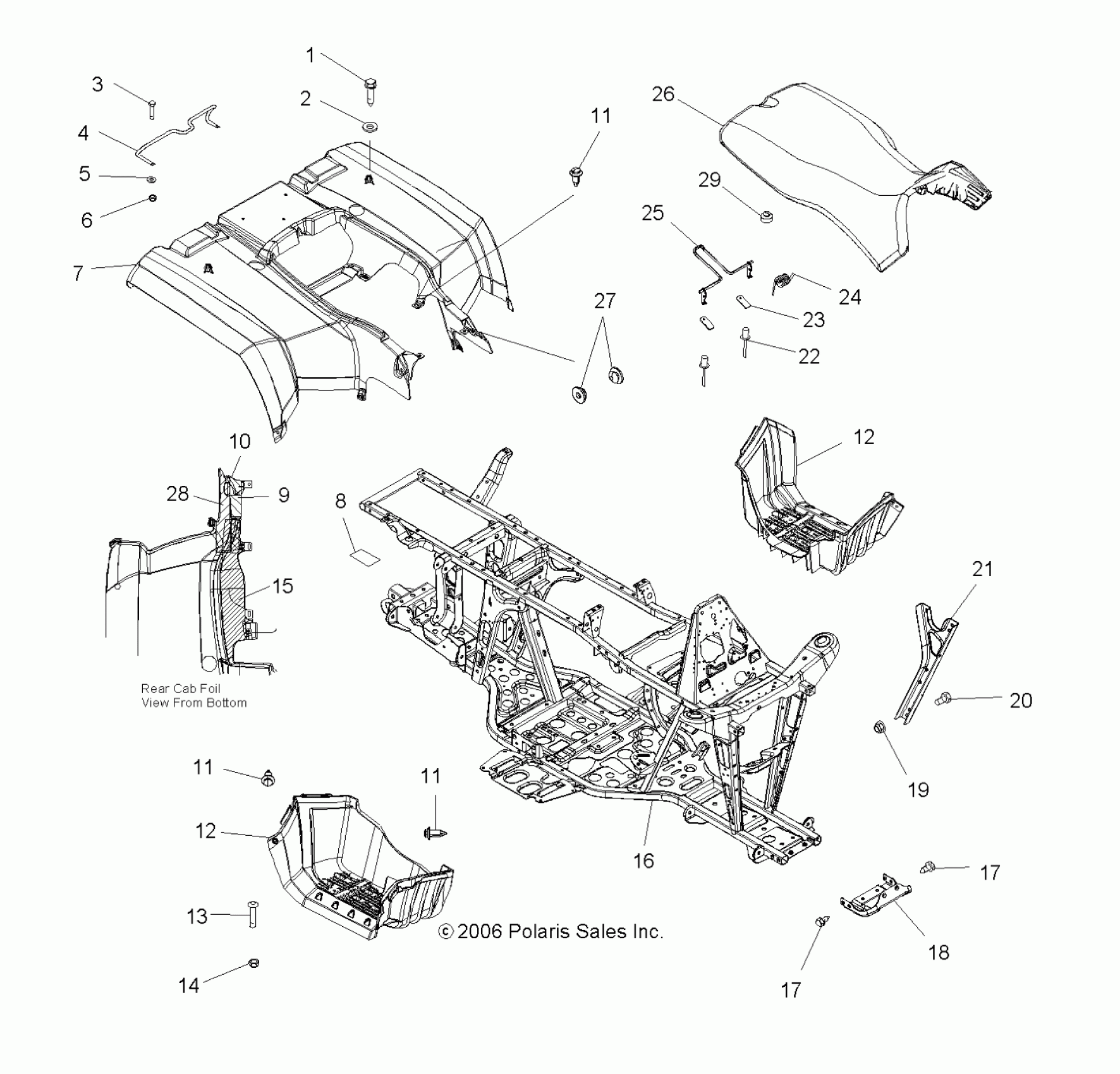

Polaris SPORTSMAN 700 EFI - A07MH68AX/AY/AZ CAB, REAR and SEAT - A07MH68AX/AY/AZ (49ATVCABRR07700) Diagram

#

Description
Price

1

Screw

7512095

$4.79

2

Washer

7555798

$1.49

3

Screw

7511930

$2.39

4

RETAINER, SEAT LATCH

5250745

Unavailable

5

WASHER

7555792

$4.79

6

Nut, Nylok

7541925

$1.49

7

CAB, REAR, INDY RED [AZ]

5436319-293

$391.99

7

Cab, Rear, Camo Green [AX]

5436319-400

Unavailable

7

Cab, Rear, Black Metallic [AY]

5436319-177

$396.65

8

DECAL, HITCH, 1500 LBS.

7170509

$6.39

9

Foil, Front [If built after 10/01/06]

5813177

Unavailable

9

Foil, Front [If built before 10/01/06]

5813028

$32.37

10

Foil, Edge

5813029

$48.39

11

Rivet

7661855

$1.49

11

Rivet

7661855

$1.49

11

Rivet

7661855

$1.49

12

Footwell, Black, LH

5435354-070

Unavailable

12

Footwell, Black, RH

5435355-070

Unavailable

12

Footwell, Black, LH

5435354-070

Unavailable

12

Footwell, Black, RH

5435355-070

Unavailable

13

SCREW

7517230

$1.49

14

Nut, Nylok

7542122

$1.49

15

Foil, Rear

5813043

$31.99

16

Frame, Main, Black

1015740-067

$1,209.99

17

SCREW

7515399

$1.49

17

SCREW

7515399

$1.49

18

Bracket, Bumper, Lower, Black

5245767-067

Unavailable

19

NUT, NYLOK, FLANGED

7542153

$1.59

20

Screw

7512283

$3.99

21

Brace, Support, Frame, Front, Black, LH

5244751-067

Unavailable

22

RIVET

7621403

$1.49

23

BRACKET, LEVER RETAINER

5211033

$29.25

24

SPRING, LATCH

7041370

$9.59

25

LATCH, SEAT

1040387

$47.99

26

Asm., Seat, Black

2683433-070

Unavailable

26

Covering, Seat, Black

2683434-070

Unavailable

27

GROMMET, RUBBER, MOUNT

5412623

$2.39

28

Foil, Middle

5813030

Unavailable

29

BUMPER-RUBBER

5412067

$3.99
