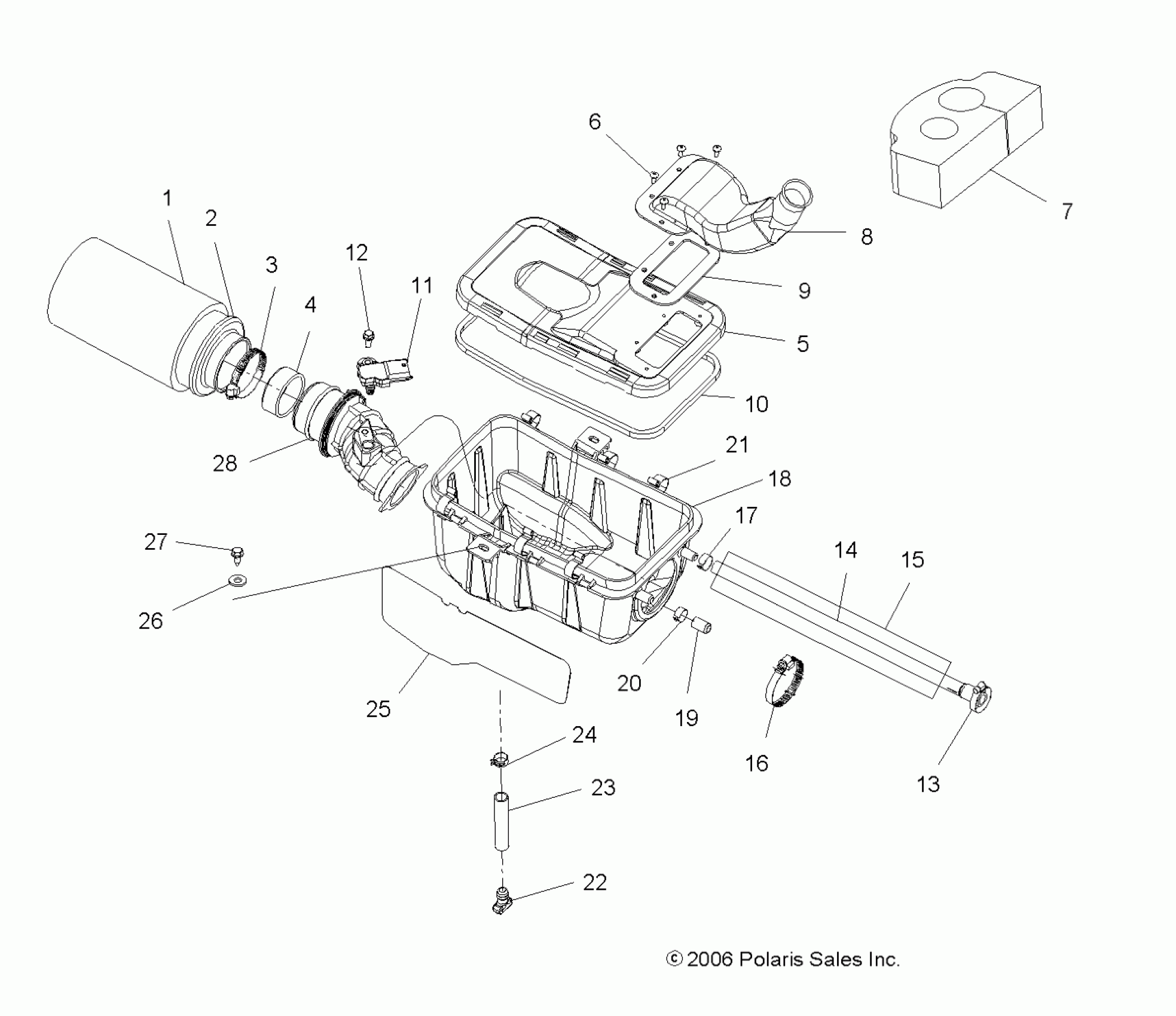

Polaris SPORTSMAN 700 EFI - A07MH68AX/AY/AZ AIR BOX - A07MH68AX/AY/AZ (49ATVAIRBOX07700) Diagram

#

Description
Price

1

Filter, Preclean Sleeve

5811633

$11.90

2

Filter, Air

7080595

$27.78

3

Clamp, Narrow Band

7080413

$3.17

4

Sleeve, Carburetor, Inner

5433847

$14.56

5

Cover, Air Box [If built before 8/21/06]

5432868

$56.65

5

Asm., Cover/Seal [Incl. 10][If built after 8/21/06]

1203567

Unavailable

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.17

7

Seal, Foam

5812775

Unavailable

8

Duct, Air Intake

5436938

Unavailable

9

Gasket, Intake

5411422

$6.59

10

Seal, Cover [If built after 4/02/07]

5812829

$28.32

10

Seal, Cover [If built before 4/02/07]

5811482

$28.32

11

Sensor

2410422

$97.13

12

Screw

7517658

$5.56

13

Clamp, Hose, Spring

7080694

$6.64

14

Hose, Breather

5412615

$42.74

15

Sheath, Reflective Sleeve

8450108-34

Unavailable

16

Clamp, Narrow Band

7080511

$4.76

17

Clamp, Hose

7080699

$1.59

18

Box, Air

5433678

$137.60

19

Clamp, Hose

7080534

$1.59

20

Cap, End

5433396

$4.84

21

CLIP-AIR BOX

5242044

$9.52

22

Plug, Trap

5435299

$6.46

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.97

25

Foil

5813042

$20.22

26

Washer, Flat

7555859

$1.19

27

Screw

7515179

$2.38

28

Boot, Throttle Body

5412985

$40.46
