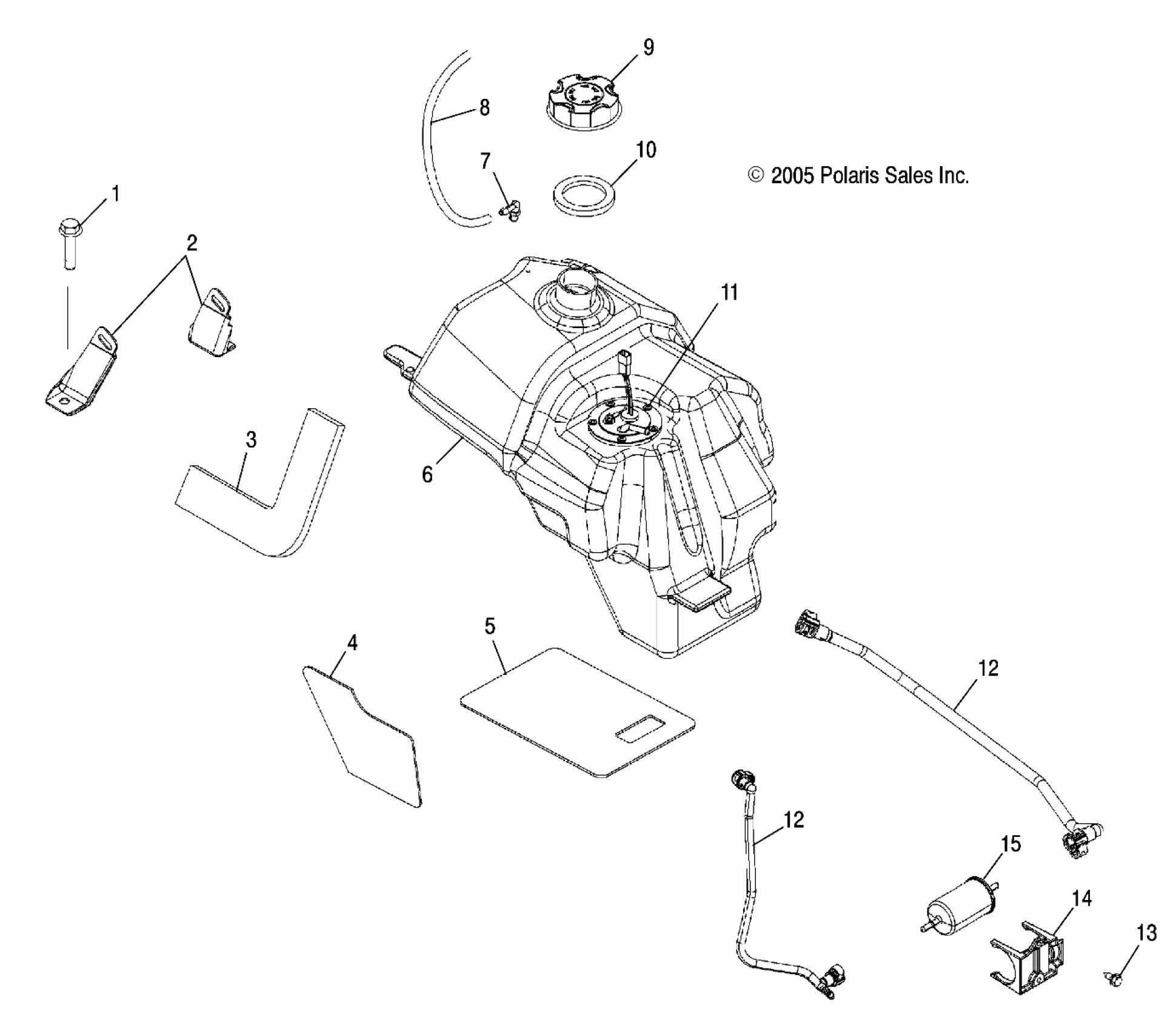

Polaris SPORTSMAN 700 EFI - A06MH68AQ FUEL SYSTEM - A06MH68AQ/AT/AX/AY/AZ (4999200229920022A14) Diagram

#

Description
Price

1

Screw

7515179

$2.38

2

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

2

BRACKET, FUEL COVER MOUNT, RH

5247185

$49.99

3

SEAL, FOAM

5812265

$28.32

4

Foil

5812004

$20.22

5

Foil

5812005

$20.22

6

Asm., Fuel Tank w/Fuel Pump

2520437

$1,092.49

7

Vent, Tank

5431053

$24.27

8

LINE, FUEL

8360009-600

Unavailable

9

Cap, Gas Tank

5433687

$20.22

10

GASKET

5812123

$5.65

11

Screw

7518257

Unavailable

12

Asm., Fuel Line, Tank to Filter

2520443

Unavailable

12

Asm., Fuel Line, Filter to Rail

2520444

Unavailable

12

Asm., Fuel Line, Tank to Filter

2520443

Unavailable

12

Asm., Fuel Line, Filter to Rail

2520444

Unavailable

13

SCREW

7512232

$1.19

14

Mount, Fuel Filter

5436013

$8.89

15

Filter, Fuel

2520464

$44.51
