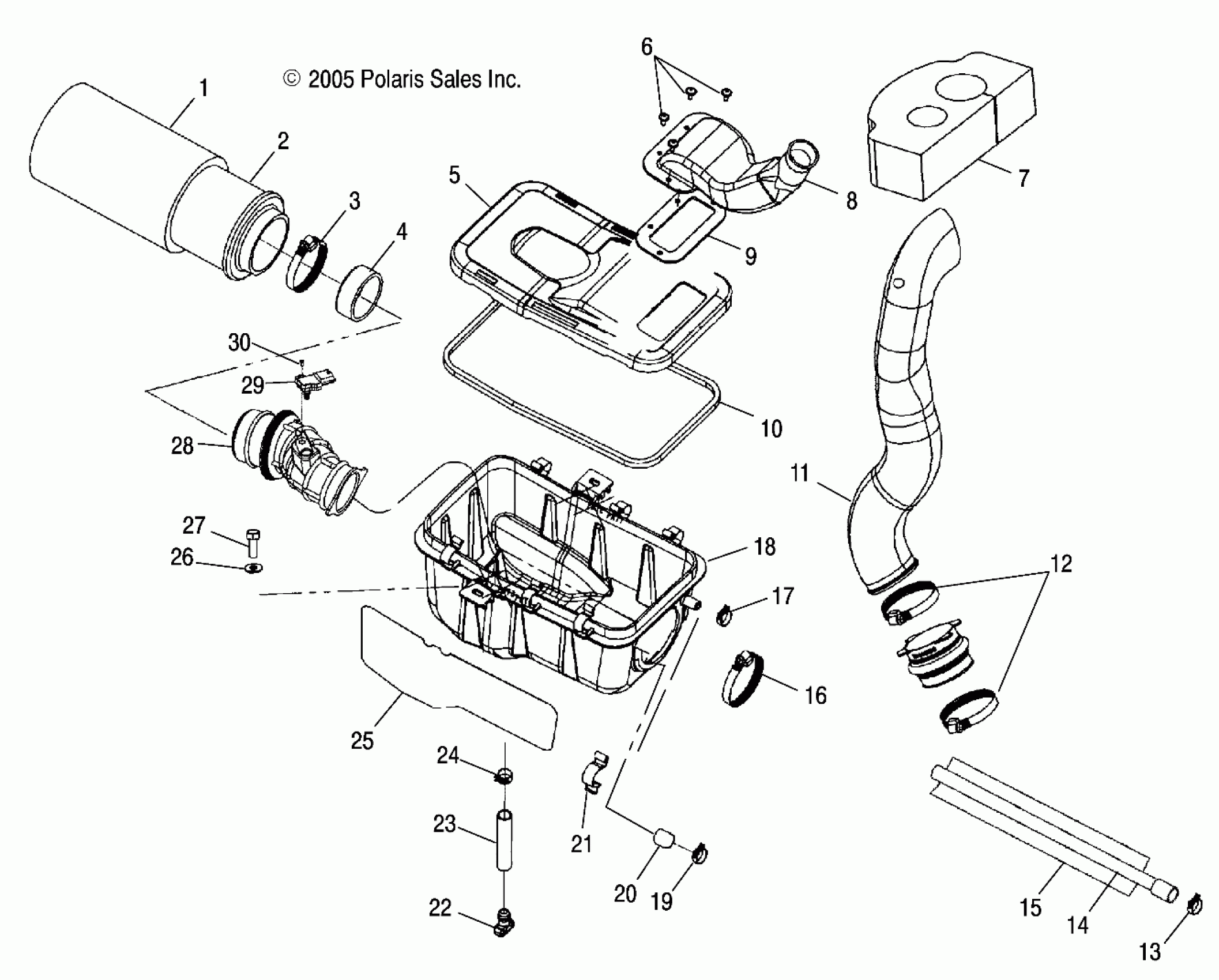

Polaris SPORTSMAN 700 EFI - A06MH68AQ AIR BOX - A06MH68AQ/AT/AX/AY/AZ (4999200229920022A10) Diagram

#

Description
Price

1

Filter, Preclean Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Sleeve, Carburetor, Inner

5433847

$13.59

5

Cover, Air Box

5432868

$51.99

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Seal, Foam

5812775

Unavailable

8

Duct, Air Intake

5434013

Unavailable

9

Gasket, Intake

5411422

$6.63

10

Seal, Cover

5811482

Unavailable

11

Duct, Clutch Air Inlet

5434044

$114.99

12

CLAMP, HOSE

7080451

$7.19

13

Clamp, Hose, Spring

7080694

$6.53

14

Hose, Breather

5412615

Unavailable

15

Sheath, Reflective Sleeve

8450108-34

Unavailable

16

Clamp, Narrow Band

7080511

$4.79

17

Clamp, Hose

7080699

$1.59

18

Box, Air

5433678

$127.99

19

Clamp, Hose

7080534

$1.59

20

Cap, End

5433396

$4.79

21

CLIP-AIR BOX

5242044

$9.59

22

Plug, Trap

5432377

Unavailable

23

Line, Fuel

8450059-150

Unavailable

24

Clamp, Hose

7080650

$3.99

25

Foil

5811650

Unavailable

26

Washer, Flat

7555859

$1.49

27

Screw

7515179

$2.39

28

Boot, Throttle Body [If built before 9/26/05]

5412518

$45.97

28

Boot, Throttle Body [If built after 9/26/05]

5412985

$39.99

29

Sensor

2410422

Unavailable

30

Screw

7517658

$5.59
