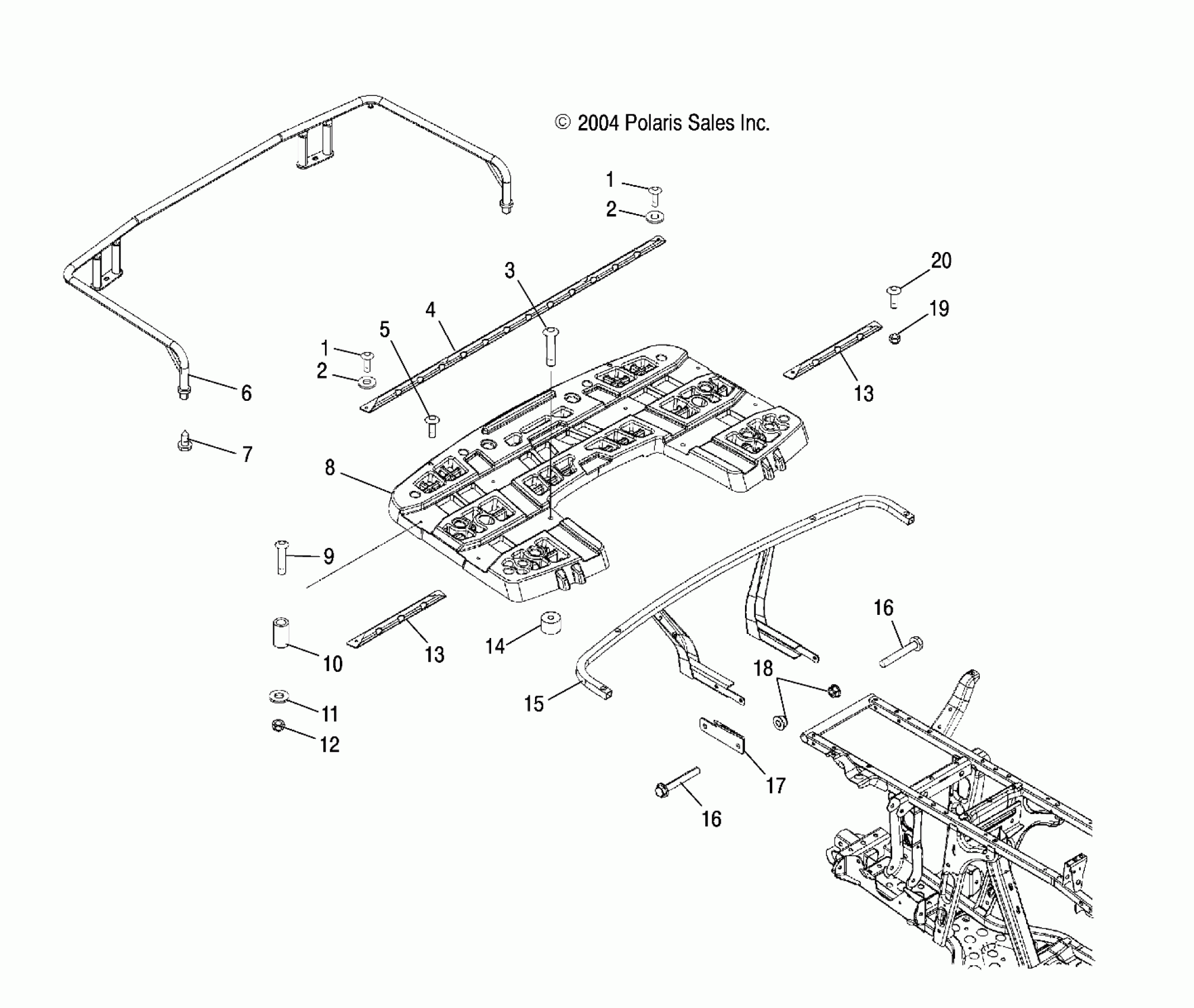

Polaris SPORTSMAN 700 EFI - A05MH68AC REAR RACK MOUNTING - A05MH68AC/AS/AT/AU/AW (4994169416A06) Diagram

#

Description
Price

1

SCREW

7517686

$1.59

1

SCREW

7517686

$1.59

2

Washer

7555935

$2.39

2

Washer

7555935

$2.39

3

Screw

7517983

$9.59

4

Channel, Rear Rack, Black

5248469-418

$99.99

5

SCREW

7518418

$3.99

6

Extender, Rear Rack

1014768-418

$259.99

7

SCREW

7517208

$1.99

8

Asm., Rack, Rear, Black [Incl. Warning Decal and Reflectors]

2632867-070

$354.99

9

Screw (If built after 1/10/05)

7518504

$1.59

9

Screw (If built before 1/10/05)

7518213

Unavailable

10

Spacer (If built before 1/10/05)

5435959

$2.39

10

Spacer (If built after 1/10/05)

5436146

Unavailable

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

NUT-5/16-18 NYLOK-Y

7542324

$1.49

13

Channel, Rear Rack, Front, Black

5248471-418

$23.99

13

Channel, Rear Rack, Front, Black

5248471-418

$23.99

14

Spacer

5334092

$10.99

15

SUPPORT, REAR RACK, BLACK

1014668-067

$255.19

16

BOLT, FLANGE

7518341

$4.79

16

BOLT, FLANGE

7518341

$4.79

17

BRACKET, SILENCER, FRAME [SEE EXHAUST SYSTEM PG., REF. 6]

-------

Unavailable

18

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

19

Nut, Nylok, Flange

7542153

$1.59

20

SCREW

7517230

$1.49
