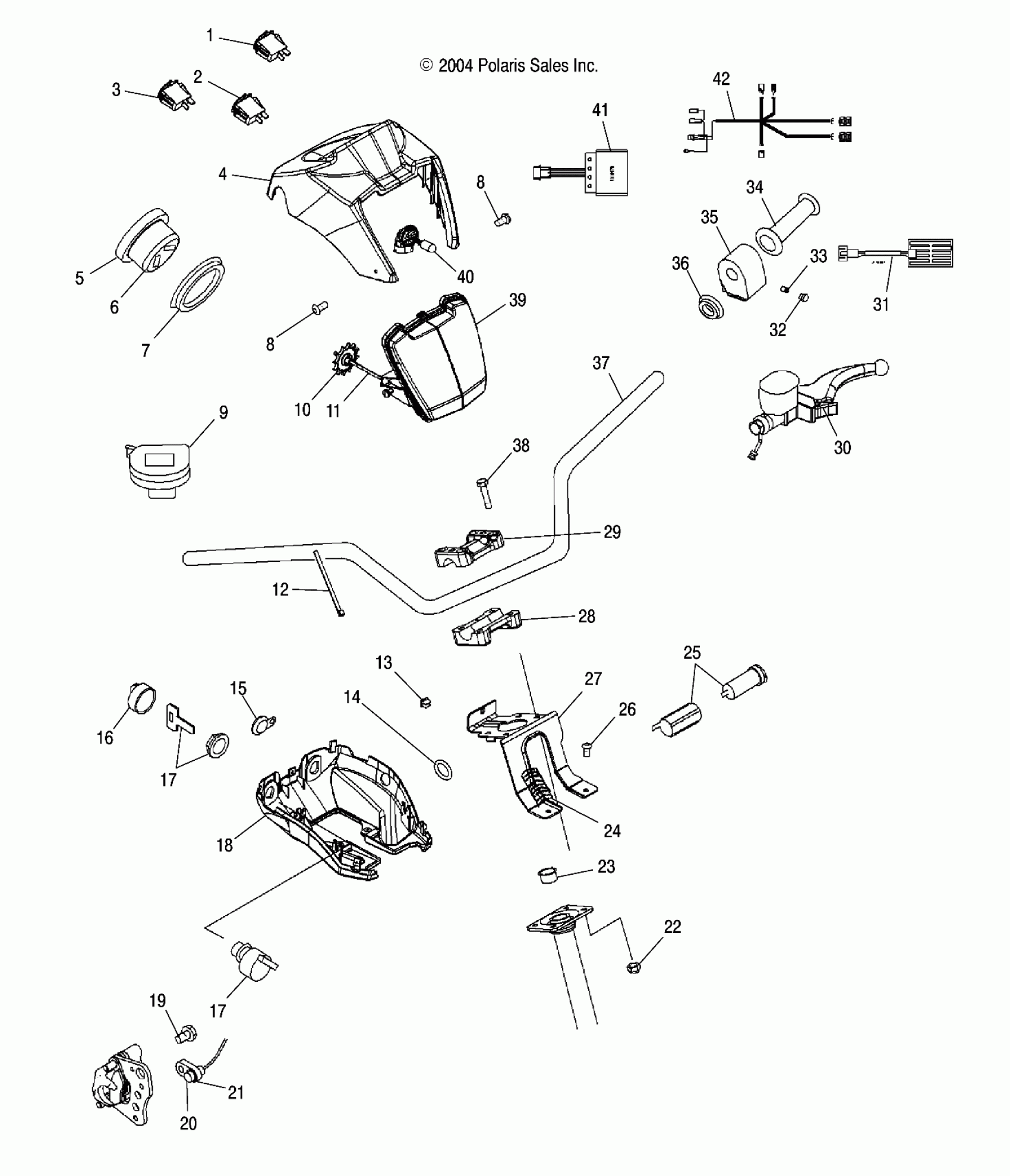

Polaris SPORTSMAN 700 EFI - A05MH68AC HANDLEBAR and HEADLIGHT POD - A05MH68AC/AS/AT/AU/AW (4994279427C03) Diagram

#

Description
Price

1

Switch, Hand Warmer (AT)

4010963

$60.70

2

Switch, Worklight, On/Off

4011074

$49.99

3

Switch, Thumb Warmer (AT)

4010964

$64.75

4

Pod, Headlight, Upper, NBU Camo [AC]

5435680-455

Unavailable

4

Pod, Headlight, Upper, Spirit Venom [AU]

5435364-473

Unavailable

4

Pod, Headlight, Upper, Indy Red [AS][AW]

5435364-293

Unavailable

4

Pod, Headlight, Upper, NBU (AT)

5436258-455

Unavailable

5

Bezel

5434380

Unavailable

6

Asm., Cluster

3280431

$343.99

7

MOUNT-RUBBER,INSTR. CLUSTER

5412138

$43.99

8

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

8

SCR-#8X.625,SELF TAP-PH/PN-ZTB

7511881

$1.49

9

ASM., THROTTLE CONTROL [SEE CONTROLS - THROTTLE ASM./CABLE PG. B11, REF. 5]

-------

Unavailable

10

KNOB, ADJUSTING

4032079

$23.99

11

ROD, ADJUSTING

4011378

$39.99

12

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

13

CLIP, SCREW

7670127

$9.59

14

O-RING

5410163

$1.60

15

Grommet

5412330

Unavailable

16

KEY SWITCH KEY COVER

5433534

$12.35

17

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

17

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

17

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

17

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010278

Unavailable

17

Blank, Key, Series 2200, 2300, 2700, 2800. NOTE: YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY.

4010321

Unavailable

17

Switch, Key, 3 Position [Incl. Key]

4011002

Unavailable

18

Pod, Headlight, Lower, Black [AC](AS)(AT)(AW)

5435365-070

Unavailable

18

Pod, Headlight, Lower, Black Metallic [AU]

5435365-177

$84.98

19

Screw

7517658

$5.59

20

Cap, Hall Sensor

5132382

$23.99

21

Sensor, Hall Effect

4010298

$111.99

22

Nut, Nylok

7542122

$1.49

23

PLUG, STEERING POST

5435661

$4.79

24

Tubing, Convoluted

8360011-15

Unavailable

25

Receptacle, Pod Mount

4010638

$24.27

26

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

27

BRACKET, POD MOUNTING, BLACK

5244969-067

$44.99

28

BLOCK, HANDLEBAR

5631973

Unavailable

29

BLOCK, HANDLEBAR, PEGGED

5631972

$27.99

30

ASM., MASTER CYLINDER [SEE CONTROLS PG. B6 FOR DETAILS]

-------

Unavailable

31

Asm., Hand Warmer (AT)

2410567

$83.99

32

PLUG, HOLE

5432952

$5.59

33

SCREW, SET

7517625

$4.79

34

Grip, Handlebar, Black

5433834-070

$24.27

35

Switch, Handlebar, HI/LO/MODE

4010591

$127.99

36

Spacer, Switch, LH

5433903

Unavailable

37

Tube, Handlebar, Black

5242987-067

$114.99

38

SCREW

7515189

Unavailable

39

Asm., Headlight

2410429

$107.99

40

KIT-HARNESS,HEADLIGHT

2204143

$71.99

40

BULB-HEADLIGHT,50 WATT

4010253

$34.99

41

Module, Load Shed (AT)

4010970

Unavailable

42

Harness, Wire (AT)

2461213

$99.99
