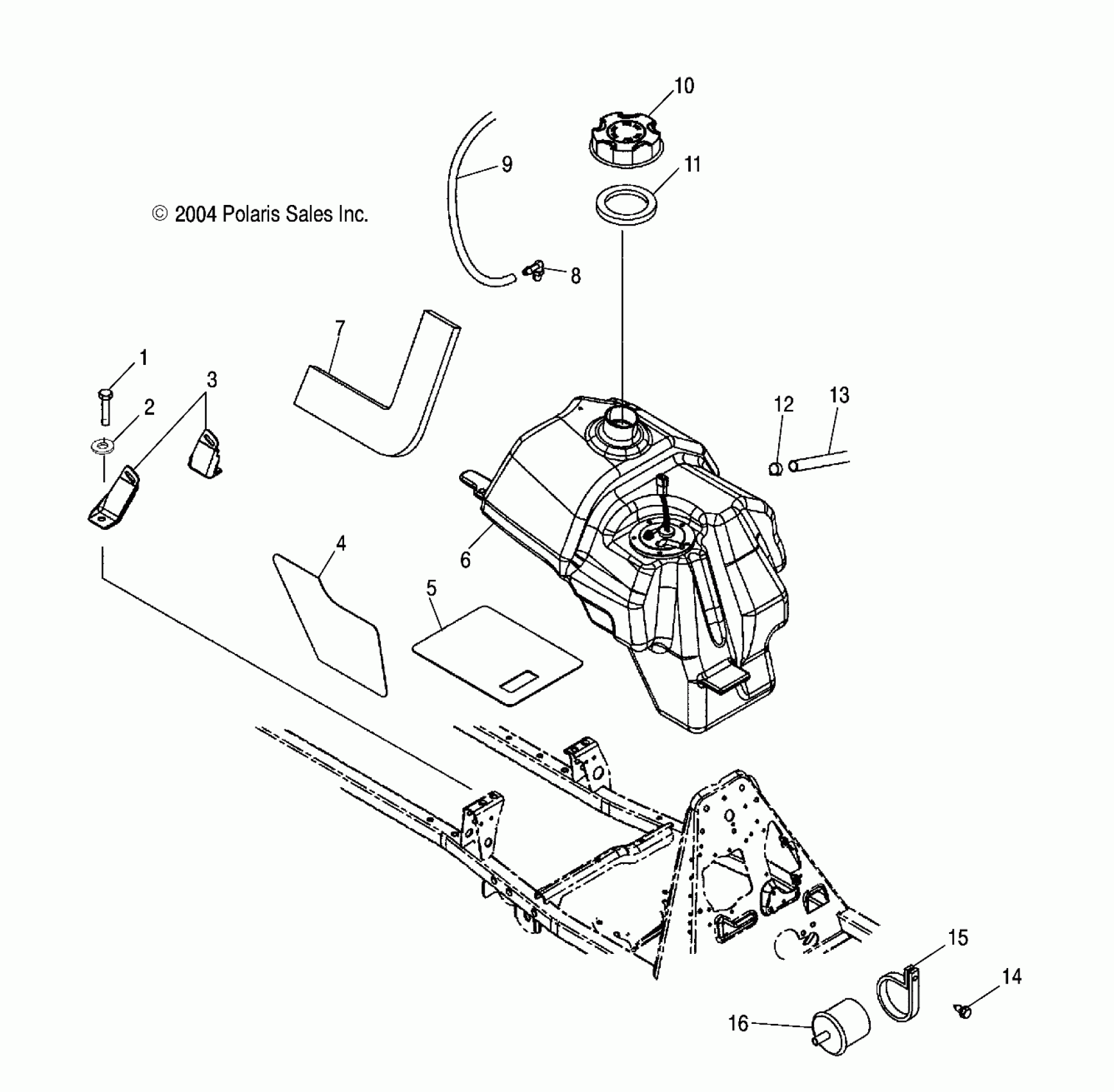

Polaris SPORTSMAN 700 EFI - A05MH68AC FUEL TANK - A05MH68AC/AS/AT/AU/AW (4994279427B05) Diagram

#

Description
Price

1

Screw

7515179

$2.39

2

Washer, Flat

7558301

$1.49

3

BRACKET, FUEL COVER MOUNT, LH

5247184

Unavailable

3

BRACKET, FUEL COVER MOUNT, RH

5247185

$43.99

4

Foil

5812004

Unavailable

5

Foil

5812005

$19.30

6

Asm., Fuel Tank w/Fuel Pump [If built before 10/4/04]

2520311

Unavailable

6

Asm., Fuel Tank w/Fuel Pump [If built after 10/4/04]

2520461

Unavailable

7

SEAL, FOAM

5812265

$27.99

8

Vent, Tank

5431053

$19.99

9

LINE, FUEL

8360009-600

Unavailable

10

Cap, Gas Tank

5433687

$20.22

11

GASKET

5812123

$5.65

12

Clamp, Hose

7080417

$9.59

13

Line, Fuel

8450044

Unavailable

14

SCREW

7517386

$1.49

15

Clamp, Filter

7081129

$4.23

16

FILTER, FUEL [SEE ENGINE MOUNTING PG. B4, REF. 2]

-------

Unavailable
