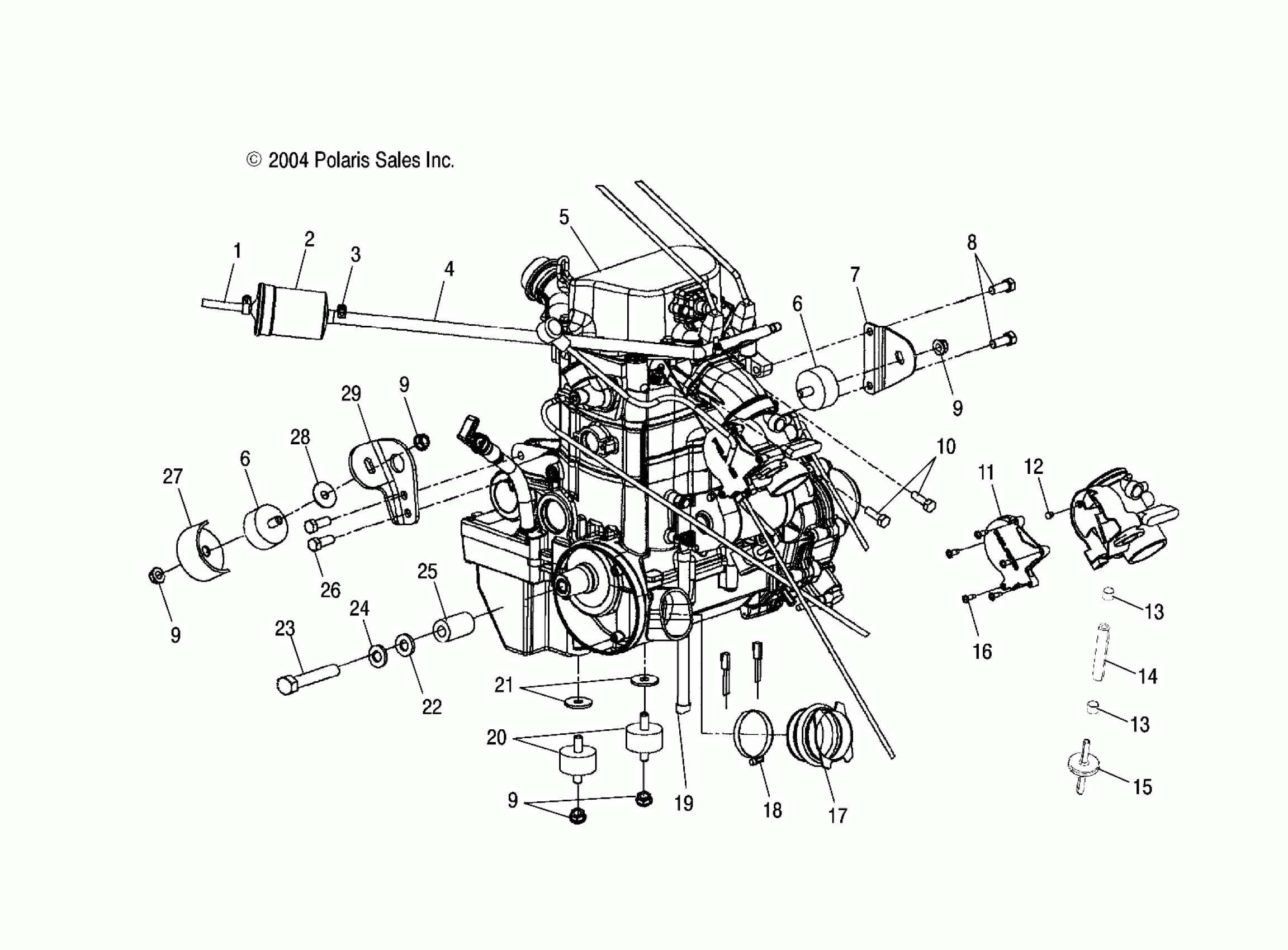

Polaris SPORTSMAN 700 EFI - A05MH68AC ENGINE MOUNTING - A05MH68AC/AS/AT/AU/AW (4994279427B03) Diagram

#

Description
Price

1

Line, Fuel

8450044-58

Unavailable

2

Filter, Fuel

2520223

$40.46

3

Clamp, Hose

7080417

$9.59

4

Line, Fuel

8450106

$40.46

5

Kit, Short Block, 700 EFI NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warr

2202856

Unavailable

6

Mount, Rubber, Top

3110044

Unavailable

6

Mount, Rubber, Top

3110044

Unavailable

7

BRACKET, MOUNT, ENGINE, TOP

5247368

$43.99

8

SCREW

7516734

$3.19

9

NUT

7547108

$4.79

9

NUT

7547108

$4.79

9

NUT

7547108

$4.79

9

NUT

7547108

$4.79

10

SCREW

7516734

$3.19

11

ASM., COVER AND O-RING

1202578

Unavailable

12

Guide, Throttle Cable

3131514

Unavailable

13

CLAMP, HOSE

7080236

$1.59

13

CLAMP, HOSE

7080236

$1.59

14

Tubing

8350018-160

Unavailable

15

VALVE, CHECK

7052038

$10.51

16

Screw, Shoulder

3131515

$10.39

17

Boot, Intake (If built after 11/15/04)

5412634

$11.19

17

Boot, Intake (If built before 11/15/04)

5411944

Unavailable

18

CLAMP, HOSE

7080451

$7.19

19

Cable

4011139

$43.99

20

Mount, Rubber, Rear

3021119

Unavailable

21

WASHER, FLAT

7555815

$3.99

22

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

23

Bolt

7518197

Unavailable

24

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

25

BUSHING-.437 X.770 X.50

5430261

$7.19

26

Bolt

7518364

$1.59

27

BRACKET, TORQUE STOP

5245043

$15.83

28

WASHER

7555823

Unavailable

29

Mount, Engine, Front, Lower, Black

5244771-067

$127.59
