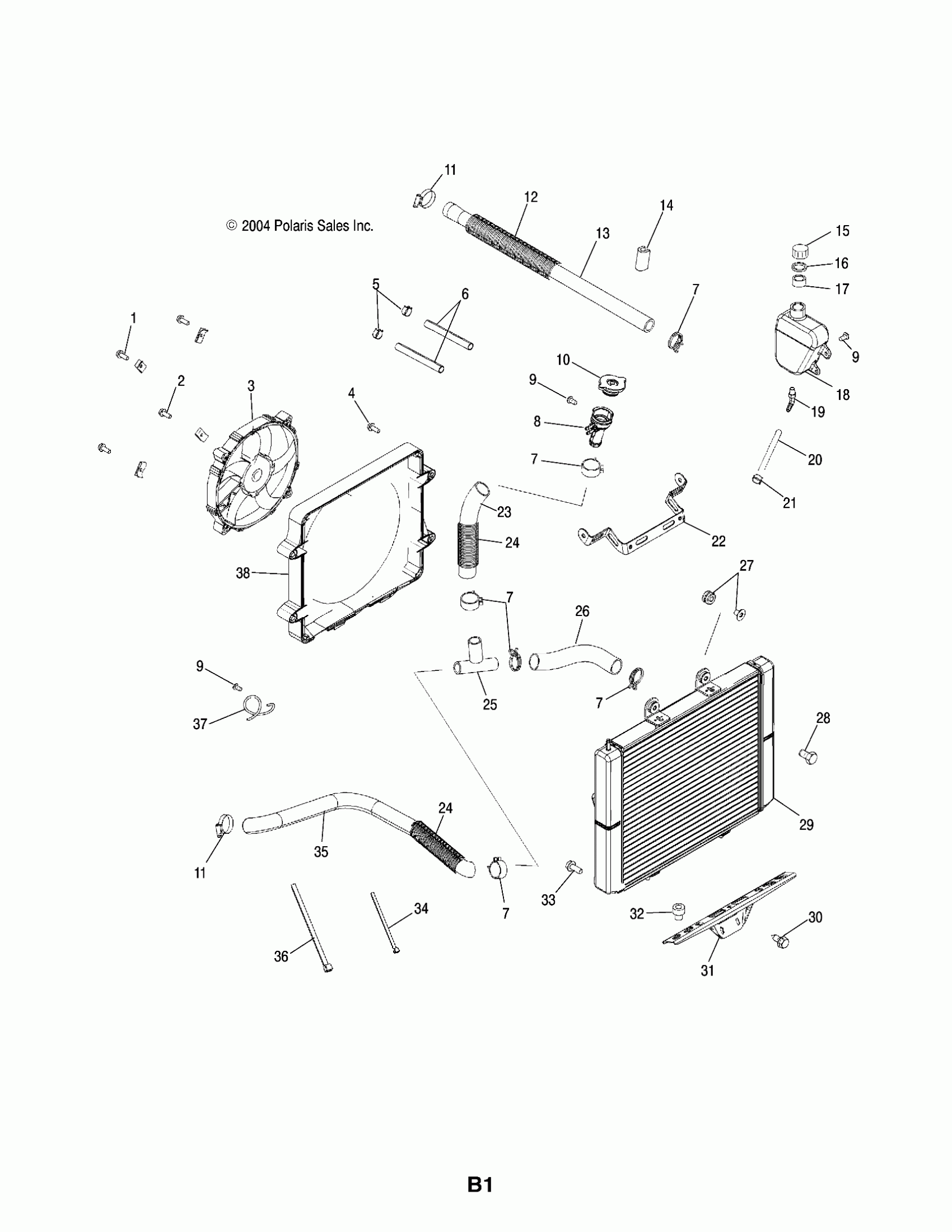

Polaris SPORTSMAN 700 EFI - A05MH68AC COOLING SYSTEM - A05MH68AC/AS/AT/AU/AW (4994279427B01) Diagram

#

Description
Price

1

Bolt

7517975

$5.59

2

U-Clip

7547197

$6.23

3

Asm., Fan

2410366

$349.99

4

Screw w/Washer

7547220

$5.99

5

HOSE CLAMP, RED

7080003

$1.49

6

Line

8450040

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

7

Clamp

7081047

Unavailable

8

Filler, Neck

5435196

Unavailable

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

9

Screw

7512084

$1.49

10

Cap, Pressure

1240044

Unavailable

11

CLAMP, HOSE

7081174

$7.19

11

CLAMP, HOSE

7081174

$7.19

12

Guard, Hose

5521597

Unavailable

13

Hose, Engine, Upper

5412391

$40.46

14

TRIM, EDGE

8360012-17

Unavailable

15

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

16

GASKET-OVERFLOW CAP

5810279

$2.41

17

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

18

Tank, Surge

5431673

Unavailable

19

FITTING, 90 DEGREE

7052065

$7.19

20

Line, Fuel

8450003-1525

$84.99

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

Bracket, Radiator Mount, Upper

5246656

Unavailable

23

Hose, Filler Neck

5412311

$28.32

24

Guard, Hose

5521644

Unavailable

24

Guard, Hose

5521644

Unavailable

25

T-Connector

7052342

$23.81

26

Hose, Lower Radiator

5412392

Unavailable

27

ASM., GROMMET AND INSERT

5411975

$3.19

28

Screw

7515179

$2.39

29

Radiator

1240190

$437.13

30

SCREW

7517386

$1.49

31

Bracket, Radiator, Lower, Black

5245773-067

$144.99

32

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

33

Valve, Drain

7052296

Unavailable

34

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

35

Hose, Engine, Lower

5412585

$52.60

36

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

37

Retainer, Hose

7042089

$7.03

38

Shroud, Fan

5434853

Unavailable
