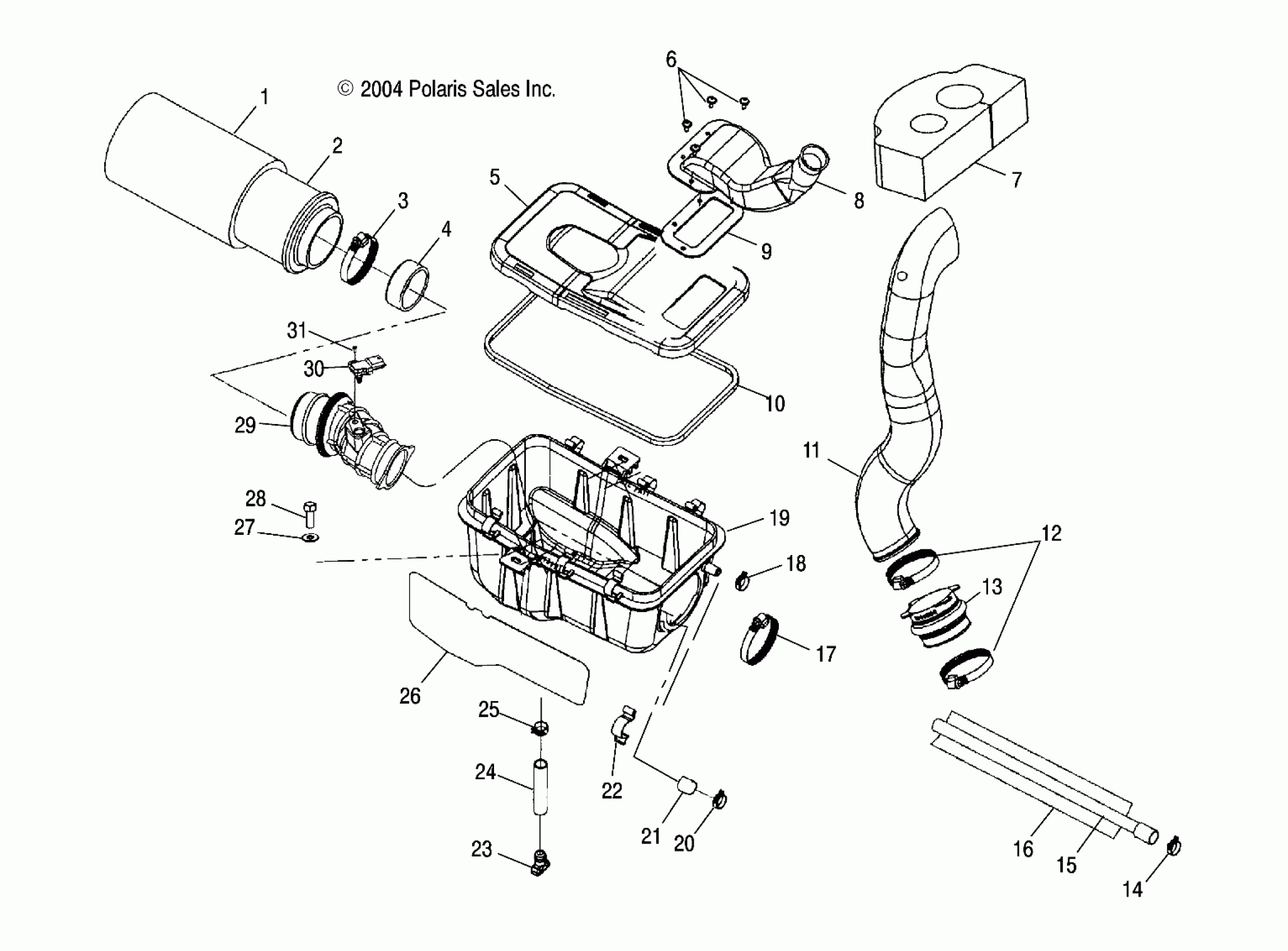

Polaris SPORTSMAN 700 EFI - A05MH68AC AIR BOX - A05MH68AC/AS/AT/AU/AW (4994279427A14) Diagram

#

Description
Price

1

Filter, Preclean Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Sleeve, Carburetor, Inner

5433847

$13.59

5

Cover, Air Box

5432868

$51.99

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Seal, Foam

5812775

Unavailable

8

Duct, Air Inlet

5434013

Unavailable

9

Gasket, Intake

5411422

$6.63

10

Seal, Cover

5811482

Unavailable

11

Duct, Clutch Air Inlet

5434044

$114.99

12

CLAMP, HOSE

7080451

$7.19

13

BOOT, CLUTCH INTAKE [SEE ENGINE MOUNTING PG. B4, REF. 17]

-------

Unavailable

14

Clamp, Hose, Spring

7080694

$6.53

15

Hose, Breather

5412615

Unavailable

16

Sheath, Reflective Sleeve

8450108-34

Unavailable

17

Clamp, Narrow Band

7080511

$4.79

18

Clamp, Hose

7080699

$1.59

19

Box, Air

5433678

$127.99

20

Clamp, Hose

7080534

$1.59

21

Cap, End

5433396

$4.79

22

CLIP-AIR BOX

5242044

$9.59

23

Plug, Trap

5432377

Unavailable

24

Line, Fuel

8450059-150

Unavailable

25

Clamp, Hose

7080650

$3.99

26

Foil

5811650

Unavailable

27

Washer, Flat

7555859

$1.49

28

Screw

7515179

$2.39

29

Boot, Throttle Body

5412518

$45.97

30

Sensor

2410422

Unavailable

31

Screw

7517658

$5.59
