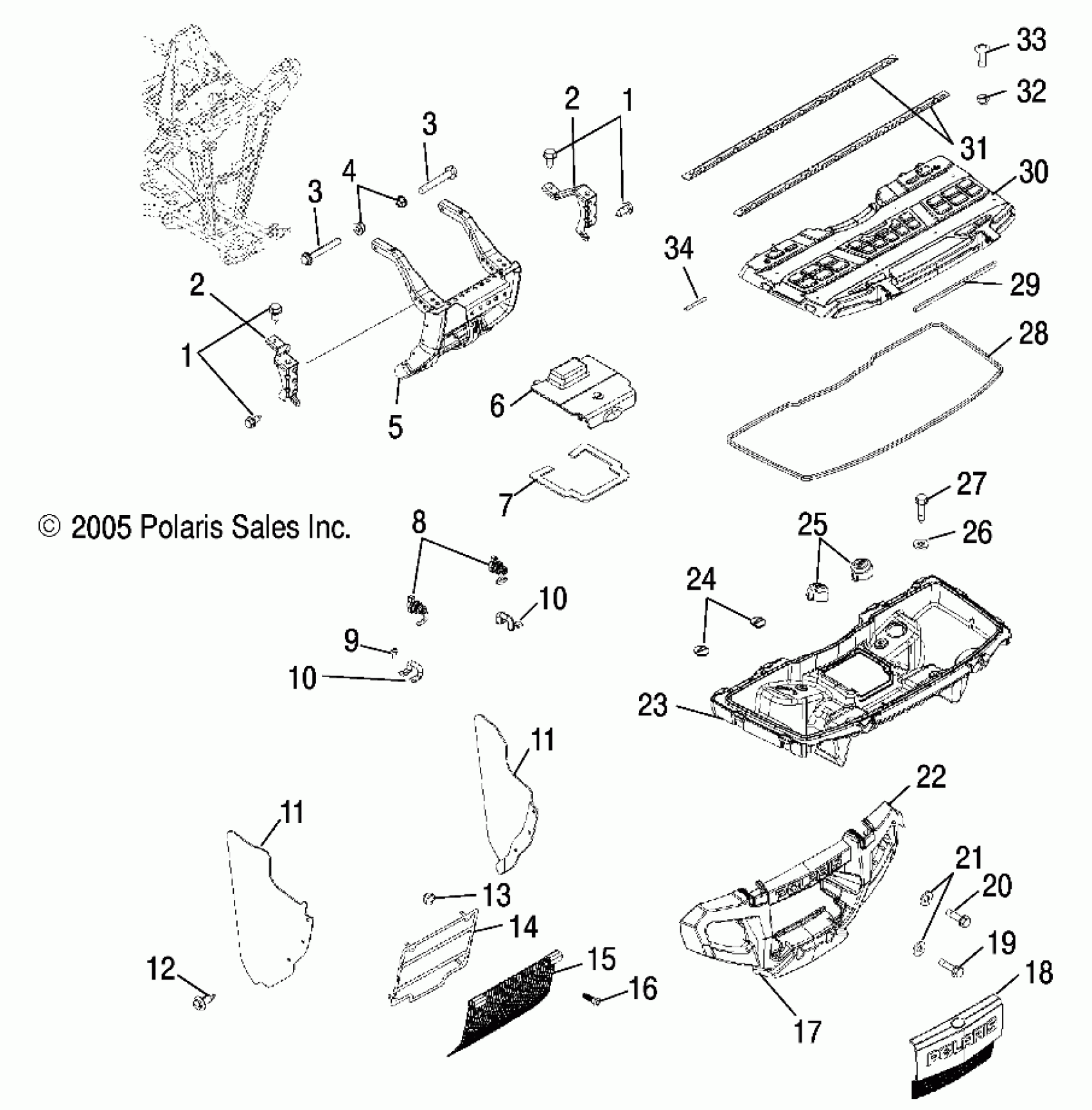

Polaris SPORTSMAN 700 - A06MH68AA STORAGE, FRONT and BUMPER MOUNTING - A06MH68AA/AD/AF (4999200179920017A06) Diagram

#

Description
Price

1

SCREW

7515399

$1.49

1

SCREW

7515399

$1.49

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

2

Support, Rack, Black, RH

1014592-067

Unavailable

2

Support, Rack, Black, LH

1014591-067

$204.99

3

BOLT, FLANGE

7518341

$4.79

3

BOLT, FLANGE

7518341

$4.79

4

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

5

Guard, Brush, Black

1014635-067

$439.99

6

Cover, Radiator

5435629

$48.56

7

Seal, Radiator Cover

5812778

Unavailable

8

Latch, RH

7081242

Unavailable

8

Latch, LH

7081241

$23.99

9

SCREW

7512076

$1.49

10

Latch, Wire

5334257

$10.03

10

Latch, Wire

5334257

$10.03

11

Shield, Side, Radiator, LH

5434314

$44.99

11

Shield, Side, Radiator, RH

5434315

Unavailable

11

Shield, Side, Radiator, LH

5434314

$44.99

11

Shield, Side, Radiator, RH

5434315

Unavailable

12

Rivet

7661855

$1.49

13

Grommet, Rubber Mount

5412504

$3.99

14

Cover, Radiator

5435046

$47.99

15

Grill, Brush Guard, Black

5247507-067

$64.99

16

Screw

7518046

$4.79

17

Decal, Amber, Reflector, LH

7172687

Unavailable

17

Decal, Amber, Reflector, RH

7172688

Unavailable

18

Panel, Bumper, Front, Black

5435357-070

$52.60

19

Screw

7518383

$3.99

20

Bolt

7518382

$4.79

21

Washer, Flat

7556341

$1.64

22

Asm., Bumper, Front, Black [Incl. Warning Decal]

2633271-070

$224.99

23

Asm., Box, Lower, Front

1202838

$364.99

24

Plug, Compartment

5412352

Unavailable

25

Cover, Strut

5435628

$35.99

26

WASHER, FLAT

7555960

$3.99

27

SCREW

7517208

$1.99

28

Seal

5521693

$27.99

29

Seal, Lid/Bumper

5521706

$28.32

30

Asm., Front Cover [Incl. 29 and Warning Decal]

2633157

$142.85

31

Channel, Lid, Front, Flat Black Wrinkle

5247653-418

$72.60

32

Nut, Nylok

7542122

$1.49

33

Screw

7518427

$1.49

34

Pin, Hinge, Front

5134576

$6.39
