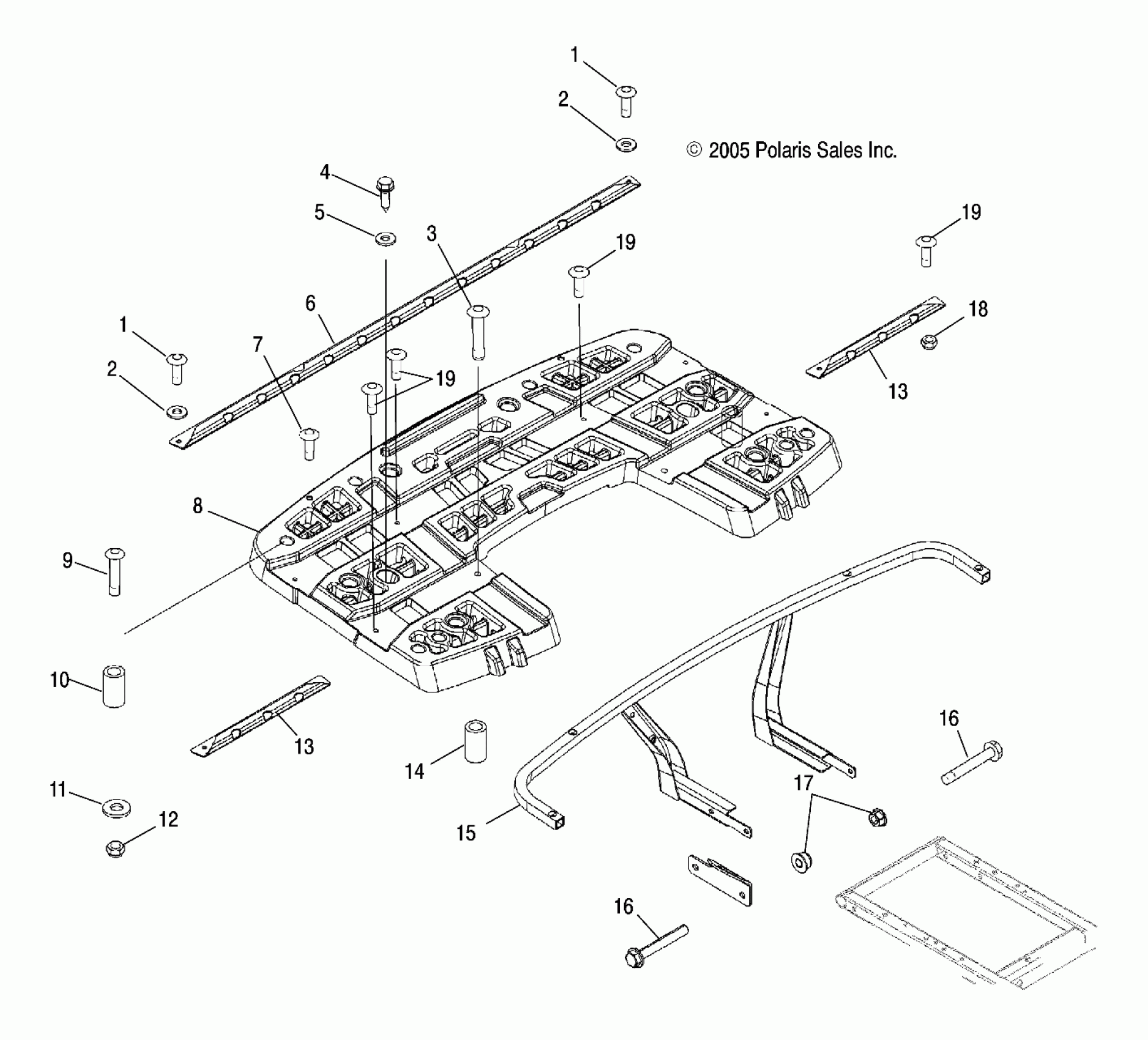

Polaris SPORTSMAN 700 - A06MH68AA RACK MOUNTING, REAR - A06MH68AA/AD/AF (4999200179920017A05) Diagram

#

Description
Price

1

SCREW

7517686

$1.59

1

SCREW

7517686

$1.59

2

Washer

7555935

$2.38

2

Washer

7555935

$2.38

3

Screw

7517983

$9.52

4

Screw

7512095

$4.76

5

Washer

7555798

$0.79

6

Channel, Rear Rack, Flat Black Wrkl

5248469-418

Unavailable

7

SCREW

7518504

$1.59

8

Asm., Rack, Rear, Black [Incl. Warning Decal]

2633207-070

$354.99

9

SCREW

7518462

$2.38

10

Spacer

5436146

Unavailable

11

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

12

NUT-5/16-18 NYLOK-Y

7542324

$0.79

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.81

13

Channel, Front, Flat Black Wrinkle

5248471-418

$23.81

14

Spacer

5334787

Unavailable

15

SUPPORT, REAR RACK, BLACK

1014668-067

$289.99

16

BOLT, FLANGE

7518341

$4.76

16

BOLT, FLANGE

7518341

$4.76

17

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

18

Nut, Nylok, Flange

7542153

$1.59

19

SCREW

7517230

$1.19

19

SCREW

7517230

$1.19

19

SCREW

7517230

$1.19
