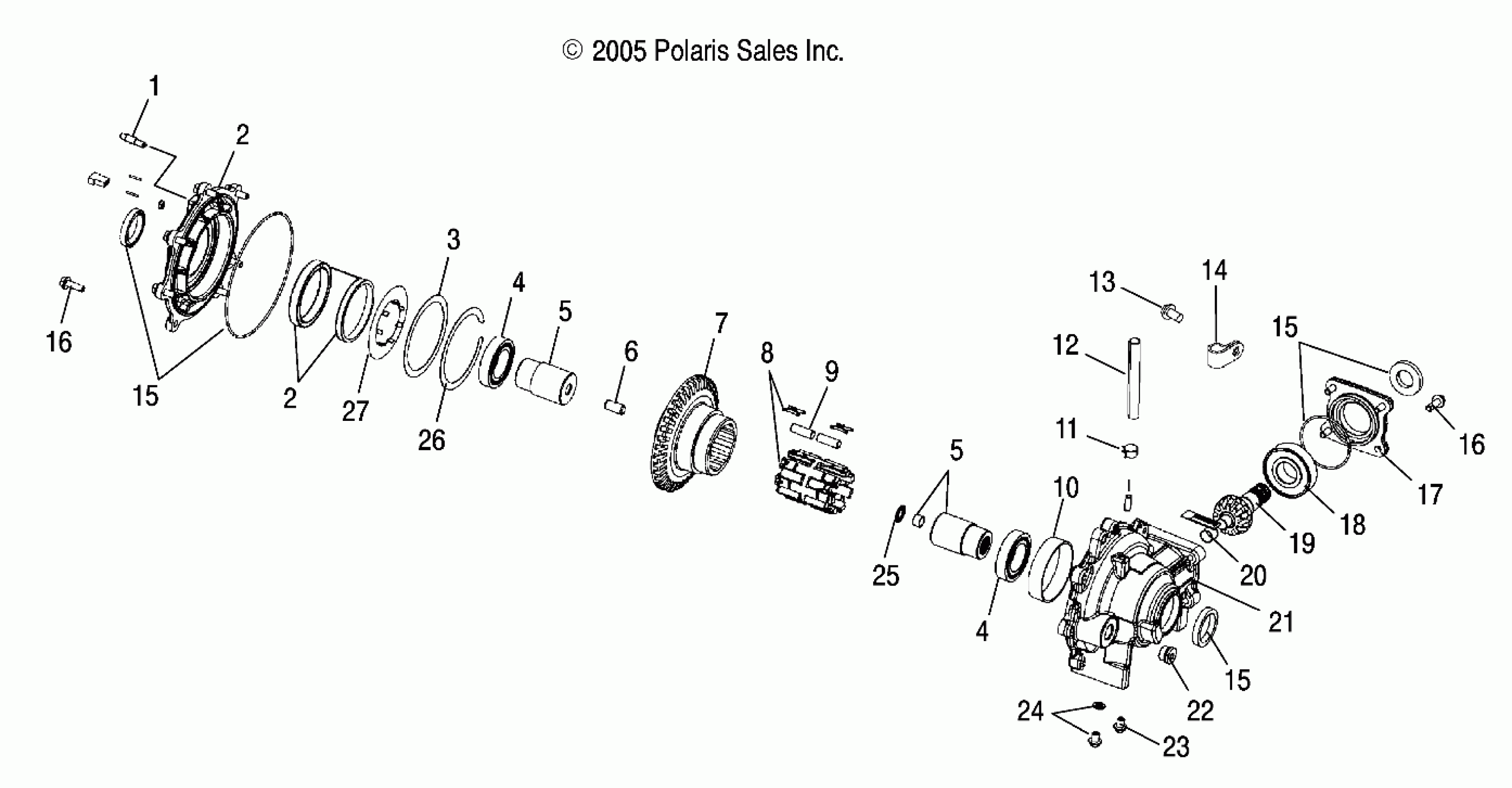

Polaris SPORTSMAN 700 - A06MH68AA HOUSING, FRONT (DEMAND DRIVE) - A06MH68AA/AD/AF (4999200179920017D03) Diagram

#

Description
Price

-

Kit, Bolt

3233955

$31.75

-

Asm., Clutch [Incl. 7-9]

3234168

Unavailable

-

Asm., Front Gearcase

1332428

$2,099.99

1

Screw, Set

3234163

Unavailable

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$565.24

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$565.24

3

Shim, Armature Plate

3234161

$36.41

4

Bearing, Roller Ball

3233926

$59.52

4

Bearing, Roller Ball

3233926

$59.52

5

Asm., Race/Output Hub [Incl. 25]

3233953

$404.75

5

Asm., Race/Output Hub [Incl. 25]

3233953

$404.75

6

Pin, Dowel

3233928

$23.81

7

Clutch Housing/Ring Gear

3234166

Unavailable

8

Asm., Roll Cage [Incl. Spring and Roll Cage]

3234167

$279.27

8

Spring

----

Unavailable

9

Kit, Roller

3233957

Unavailable

10

Bushing

3234169

Unavailable

11

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

12

Line, Fuel

8450003-1525

Unavailable

13

SCREW

7512024

$4.76

14

CLAMP, HOSE

7080693

$5.56

15

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$76.89

15

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$76.89

15

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$76.89

16

Screw

3233918

$31.75

16

Screw

3233918

$31.75

17

Cover, Input

3233947

$72.84

18

Bearing, Roller Ball

3234112

$59.52

19

Shaft, Pinion, 11T

3233944

$839.99

20

BUSHING

----

Unavailable

21

GEARCASE, LH

----

Unavailable

22

Plug, Oil Fill

3233942

$32.37

23

Bolt, Flange

7518364

$1.59

24

Asm., Drain Plug [Incl. Plug and Washer]

3233951

Unavailable

25

Bearing, Needle, Roller Thrust

3233929

$404.75

26

Ring, Retaining, Internal

3234162

$27.78

27

Plate Armature

3234160

$109.27
