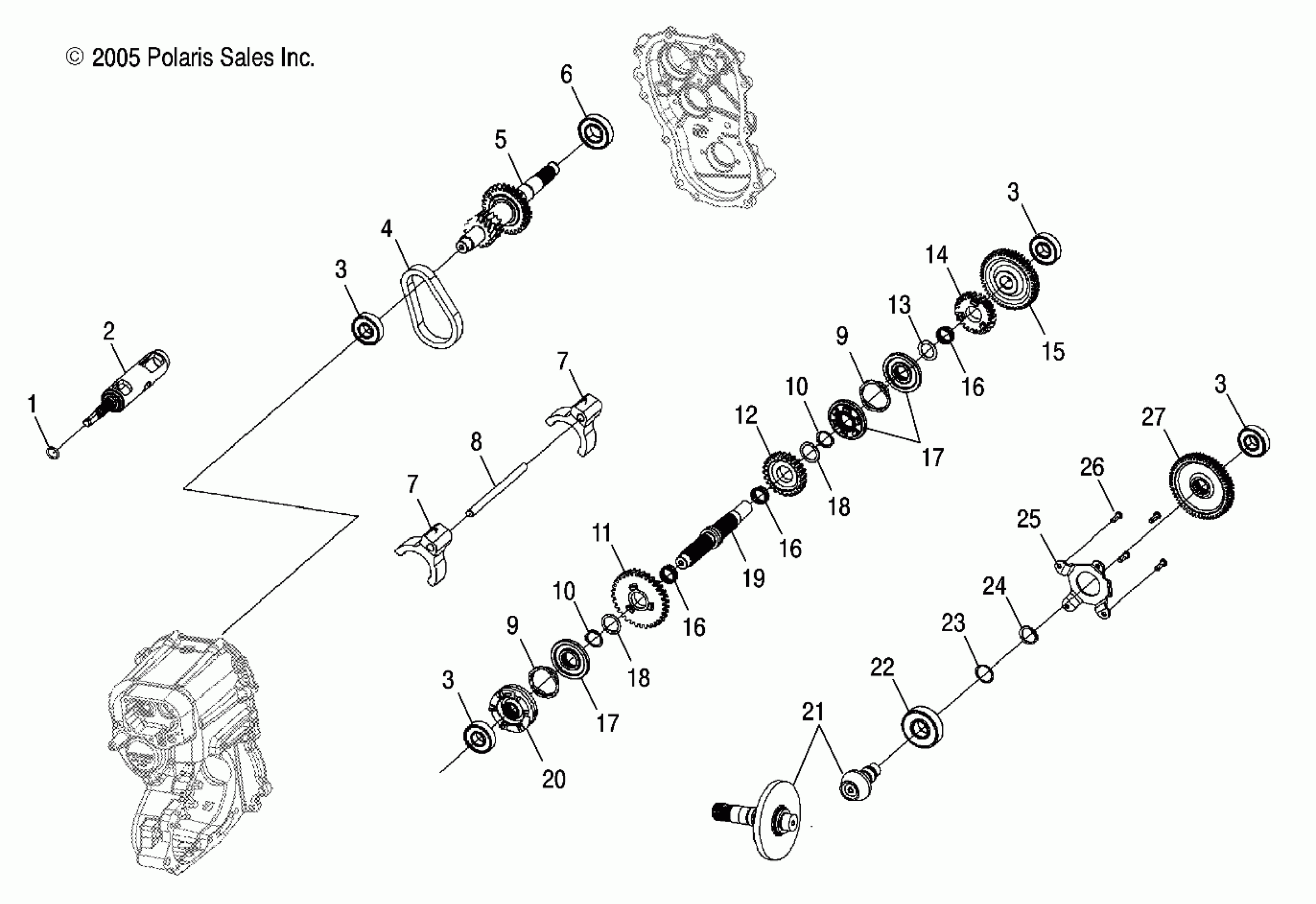

Polaris SPORTSMAN 700 - A06MH68AA GEARCASE, INTERNAL - A06MH68AA/AD/AF (4999200229920022C14) Diagram

#

Description
Price

-

Asm., Gearcase

1332437

Unavailable

1

O-Ring

3233548

$33.24

2

DRUM, SHIFT

3234211

$259.03

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

3

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

4

Chain, Silent

3233036

Unavailable

5

Shaft, Input [33/16/15]

3233890

Unavailable

6

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

7

FORK, SHIFT

3234220

$165.94

7

FORK, SHIFT

3234220

$165.94

8

RAIL, SHIFT SHAFT

3233860

$64.99

9

SPRING, WAVE

3234144

$33.24

9

SPRING, WAVE

3234144

$33.24

10

RING, RETAINING

3233850

$10.32

10

RING, RETAINING

3233850

$10.32

11

GEAR, 33T

3233852

$246.89

12

Sprocket, 24T

3233854

$169.99

13

WASHER

3233855

$10.32

14

Gear, 28T

3233912

Unavailable

15

GEAR, 51T

3234136

Unavailable

16

BEARING, NEEDLE

3233718

$35.71

16

BEARING, NEEDLE

3233718

$35.71

16

BEARING, NEEDLE

3233718

$35.71

17

ENGAGEMENT DOG

3233875

$165.94

17

ENGAGEMENT DOG

3233875

$165.94

18

WASHER

3233851

$10.32

18

WASHER

3233851

$10.32

19

Shaft, Reverse

3233853

Unavailable

20

ENGAGEMENT DOG

3234040

Unavailable

21

SUBASM-GRND SPIRL BVL(411466)

3234911

$465.49

22

Bearing, Ball

3233607

$36.41

23

SPACER

3233357

$24.99

24

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

25

COVER, BEARING

3234122

$79.99

26

SCREW, TORX

3234086

$5.56

27

GEAR, 56T

3234137

Unavailable
