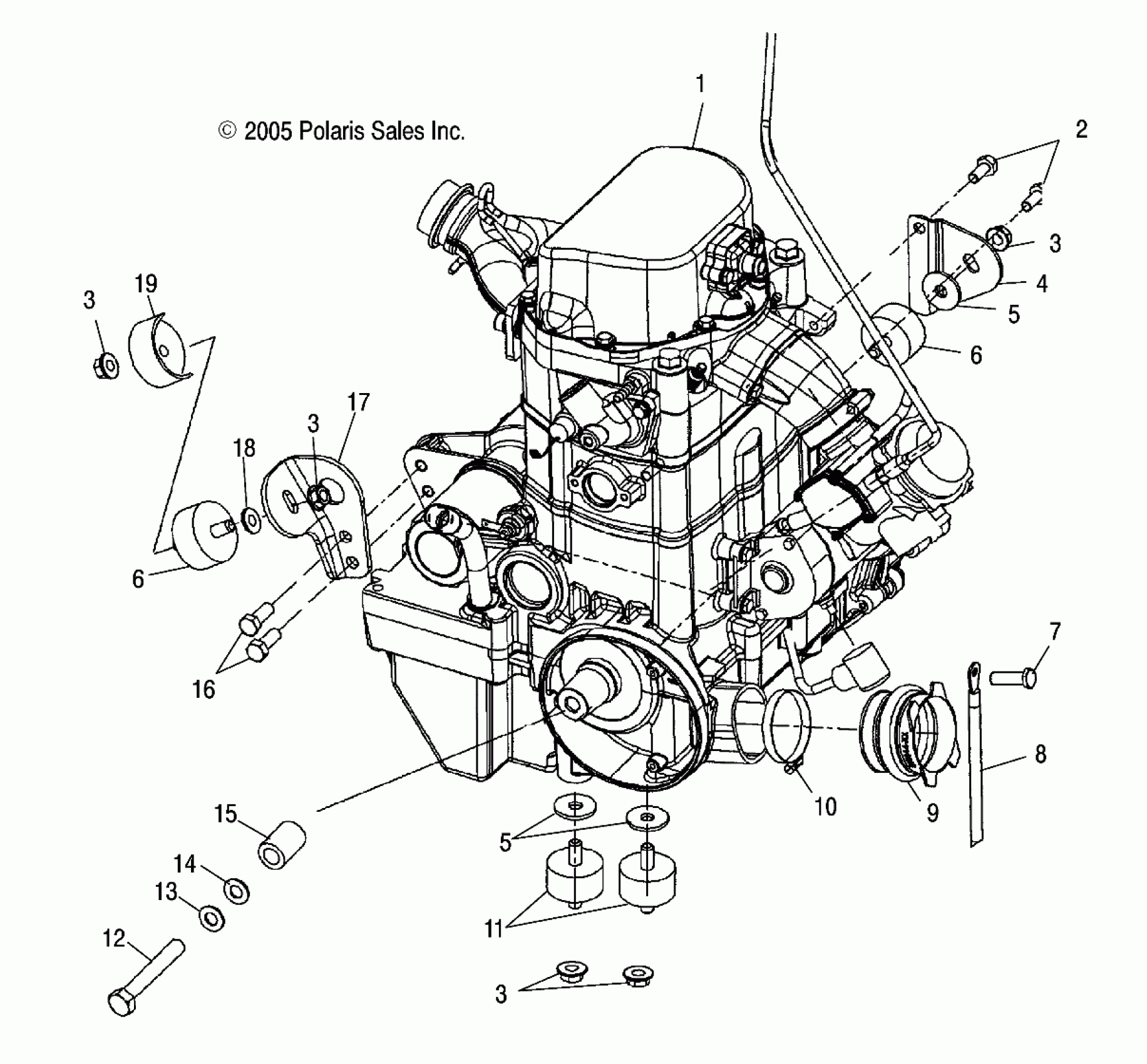

Polaris SPORTSMAN 700 - A06MH68AA ENGINE MOUNTING - A06MH68AA/AD/AF (4999200179920017A13) Diagram

#

Description
Price

1

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty cons

2203063

Unavailable

2

SCREW

7516734

$3.19

3

NUT

7547108

$4.79

3

NUT

7547108

$4.79

3

NUT

7547108

$4.79

3

NUT

7547108

$4.79

4

Bracket, Engine Mount, Top

5247368

$43.99

5

WASHER, FLAT

7555815

$3.99

5

WASHER, FLAT

7555815

$3.99

6

Mount, Rubber, Top

3110044

Unavailable

6

Mount, Rubber, Top

3110044

Unavailable

7

Bolt

7517868

$7.99

8

Cable, Ground

4011361

Unavailable

9

BOOT, CLUTCH INTAKE

5412634

$11.19

10

CLAMP, HOSE

7080451

$7.19

11

Mount, Rubber, Rear

3021119

Unavailable

12

Bolt

7518197

Unavailable

13

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

14

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

15

BUSHING-.437 X.770 X.50

5430261

$7.19

16

Bolt

7518364

$1.59

17

MOUNT, ENGINE, LOWER, FRONT, BLACK

5244771-067

$127.59

18

WASHER

7555823

Unavailable

19

BRACKET, TORQUE STOP

5245043

$15.83
