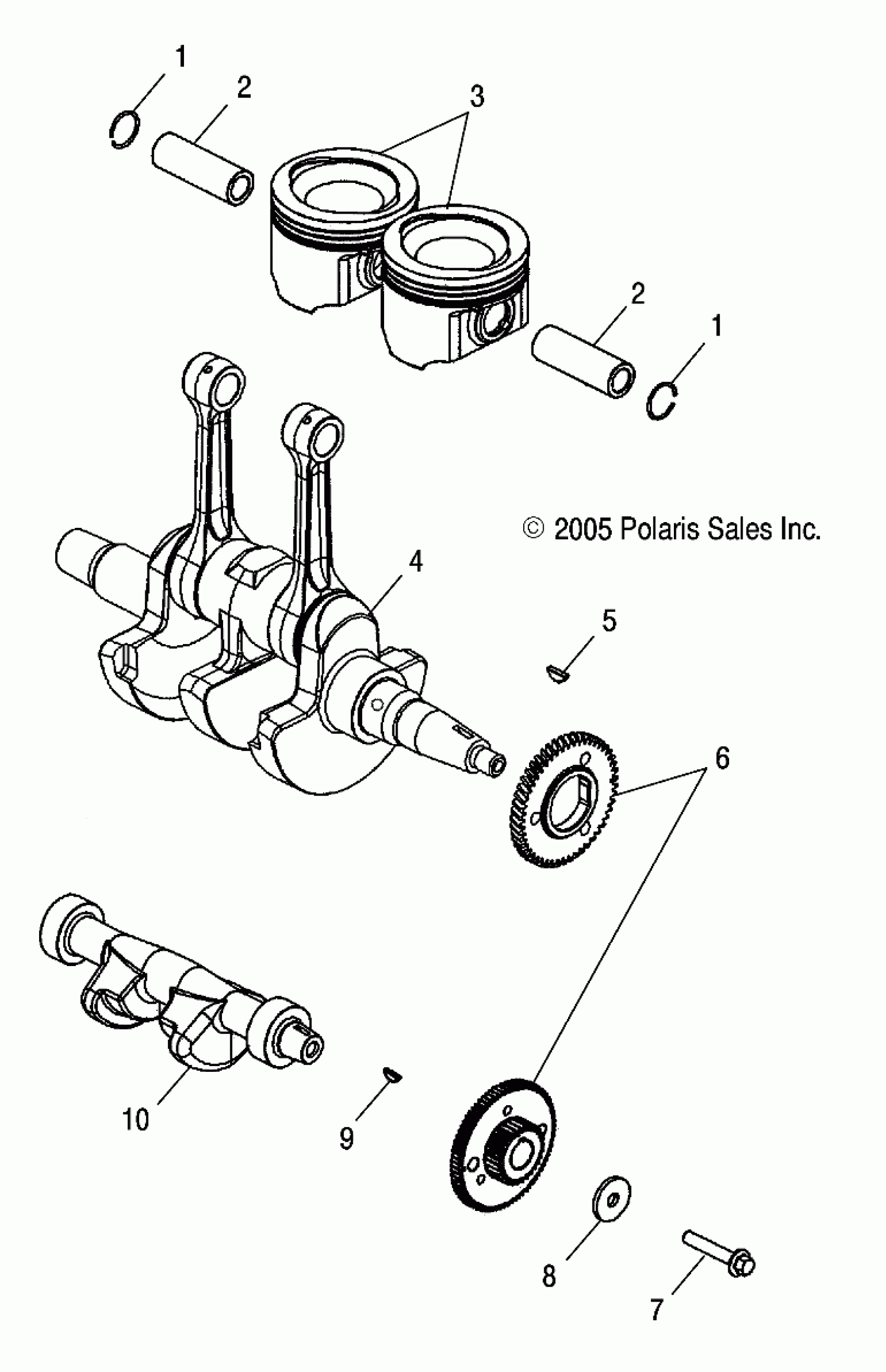

Polaris SPORTSMAN 700 - A06MH68AA CRANKSHAFT and PISTON - A06MH68AA/AD/AF (4999200179920017D08) Diagram

#

Description

Price

-

Kit, Piston [Incl. 1-3]

2202107

$180.49

1

Circlip, Piston

3022996

Unavailable

1

Circlip, Piston

3022996

Unavailable

2

PIN, PISTON

----

Unavailable

2

PIN, PISTON

----

Unavailable

3

Kit, Piston Ring [Incl. 1 Control Ring, 1 Iron Ring, and 1 Chrome Ring]

2202127

$71.41

4

Kit, Crankshaft [Incl. Complete Crank and Crankshaft Gear] [If Built After 10/03/05]

2203067

Unavailable

4

Kit, Crankshaft [Incl. Complete Crank and Crankshaft Gear] [If Built Before 10/03/05]

2202858

Unavailable

5

KEY, WOODRUFF

7721117

$29.99

6

KIT, GEAR SET

2203106

Unavailable

7

SCREW

7517865

$11.11

8

WASHER-RETAINING,8.5X28X3

7555982

$15.99

9

KEY, WOODRUFF

7721131

$23.81

10

Shaft, Balance

5132396

$273.81
