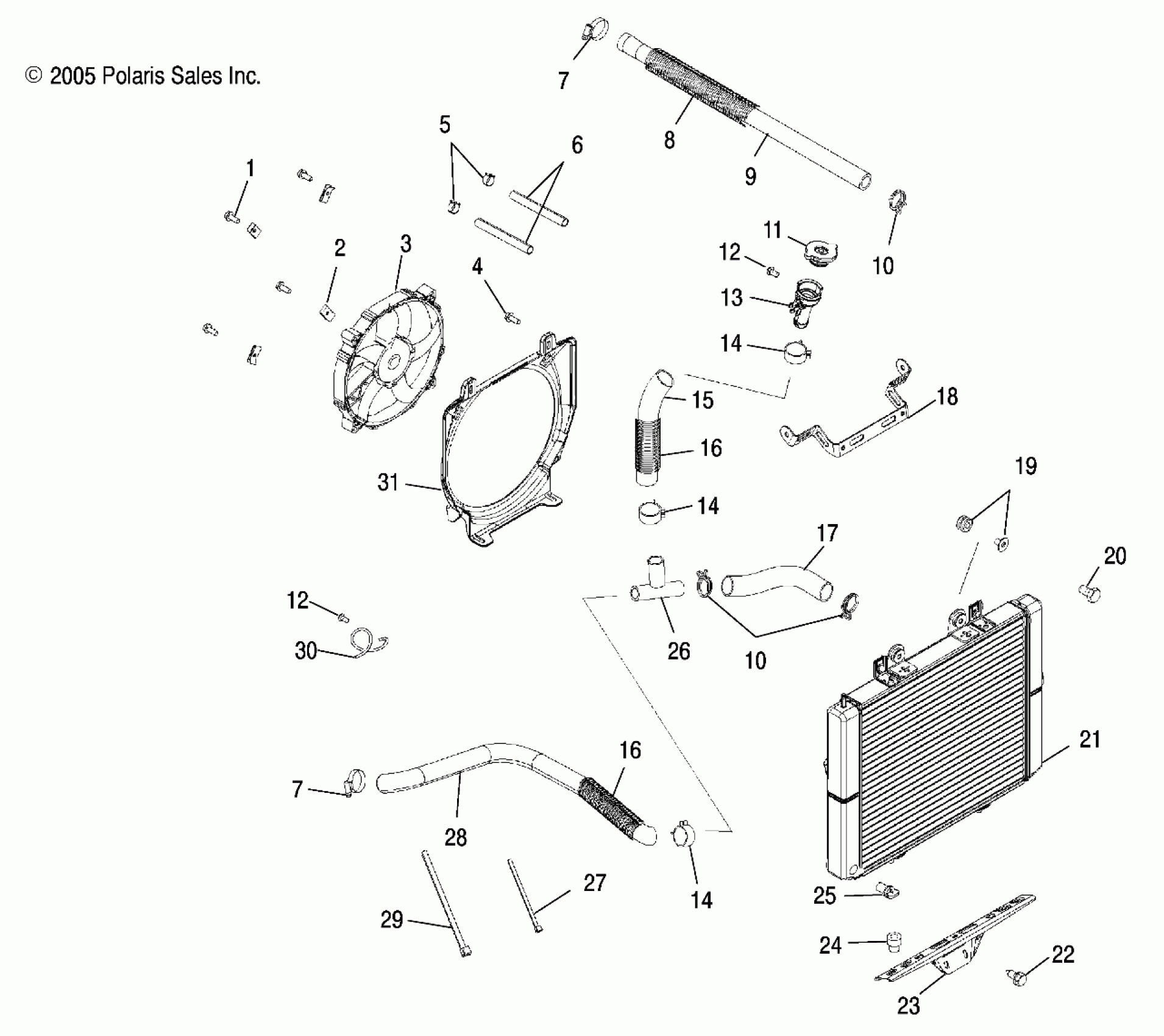

Polaris SPORTSMAN 700 - A06MH68AA COOLING SYSTEM - A06MH68AA/AD/AF (4999200179920017A09) Diagram

#

Description
Price

1

Bolt

7517975

$5.56

2

U-Clip

7547197

$6.19

3

ASM., FAN

2410413

$267.13

4

Screw w/Washer

7547220

Unavailable

5

HOSE CLAMP, RED

7080003

$1.19

6

Line, Fuel

8450040-600

$72.84

7

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

7

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.94

8

Guard, Hose, 9 Inch

5521597

Unavailable

9

Hose, Engine, Upper

5412030

Unavailable

10

Clamp

7080826

$4.76

10

Clamp

7080826

$4.76

11

Cap, Pressure

1240044

$48.56

12

Screw

7512084

$1.19

12

Screw

7512084

$1.19

13

Filler, Neck

5435196

Unavailable

14

Clamp

7081047

Unavailable

14

Clamp

7081047

Unavailable

14

Clamp

7081047

Unavailable

15

Hose, Filler Neck

5412311

$21.99

16

Guard, Hose, 6.75 Inch

5521644

Unavailable

16

Guard, Hose, 6.75 Inch

5521644

Unavailable

17

Hose, Lower Radiator

5412312

$44.51

18

Bracket, Radiator Mount, Upper

5246656

Unavailable

19

ASM., GROMMET AND INSERT

5411975

$3.17

20

Screw

7515179

$2.38

21

Radiator

1240203

Unavailable

22

SCREW

7517386

$1.19

23

Bracket, Radiator, Lower, Black

5245773-067

Unavailable

24

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

25

Valve, Drain

7052296

Unavailable

26

T-Connector

7052282

$29.99

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

Hose, Engine, Lower

5412585

$56.65

29

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

30

Retainer, Hose

7042089

$6.98

31

Shroud, Fan

5434171

$69.84
