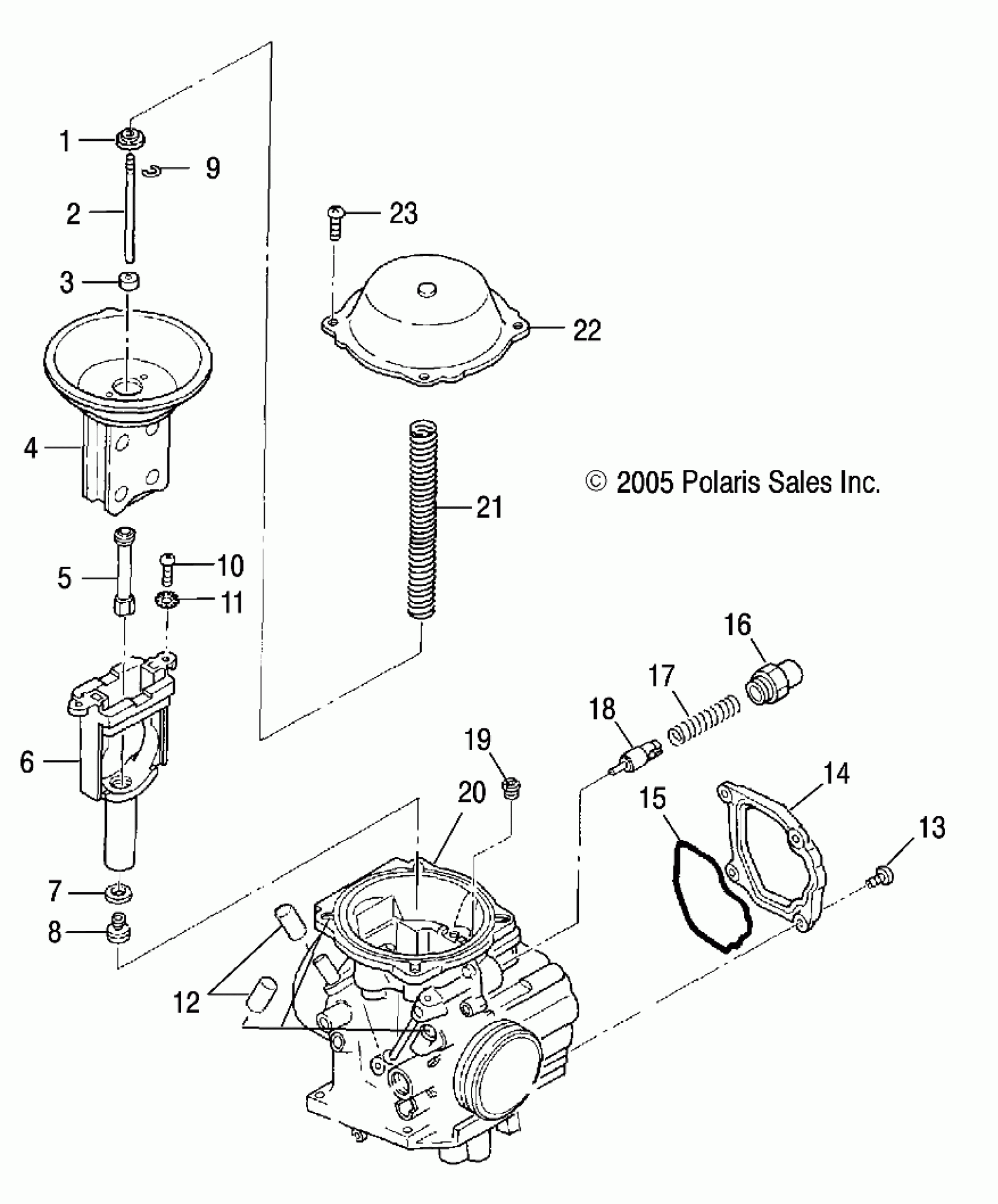

Polaris SPORTSMAN 700 - A06MH68AA CARBURETOR, UPPER - A06MH68AA/AD/AF (4999200179920017D09) Diagram

#

Description
Price

1

RING

3130507

$5.59

2

Needle, Jet, J8-4HB41-3

3131224

$35.99

3

RING

3130752

$5.59

4

Asm., Diaphragm

3130732

$123.99

5

JET, NEEDLE, P-6

3131363

$35.99

6

Asm., Jet Block

3130504

$59.99

7

WASHER

3130014

$1.59

8

Jet, Main, #157.5

3130572

$24.27

9

E-RING

3130508

$6.46

10

SCREW

3130541

$11.19

11

WASHER, SPRING

3130540

$4.79

12

Cap

3131393

Unavailable

13

SCREW

3130535

$7.19

14

COVER

3130511

$43.99

15

O-Ring

3130512

$39.99

16

HOLDER, GUIDE

3131396

$13.59

17

SPRING

3130538

$4.79

18

ASM., PLUNGER

3131395

$35.99

19

JET, AIR, #160

3130625

$13.59

20

Asm., Carburetor [Incl. 1-12]

1203060

$653.56

21

Spring, Compression

3131451

$13.75

22

ASM., COVER

3130503

$63.99

23

SCREW-MIKUNI C2=0408

3130592

Unavailable
