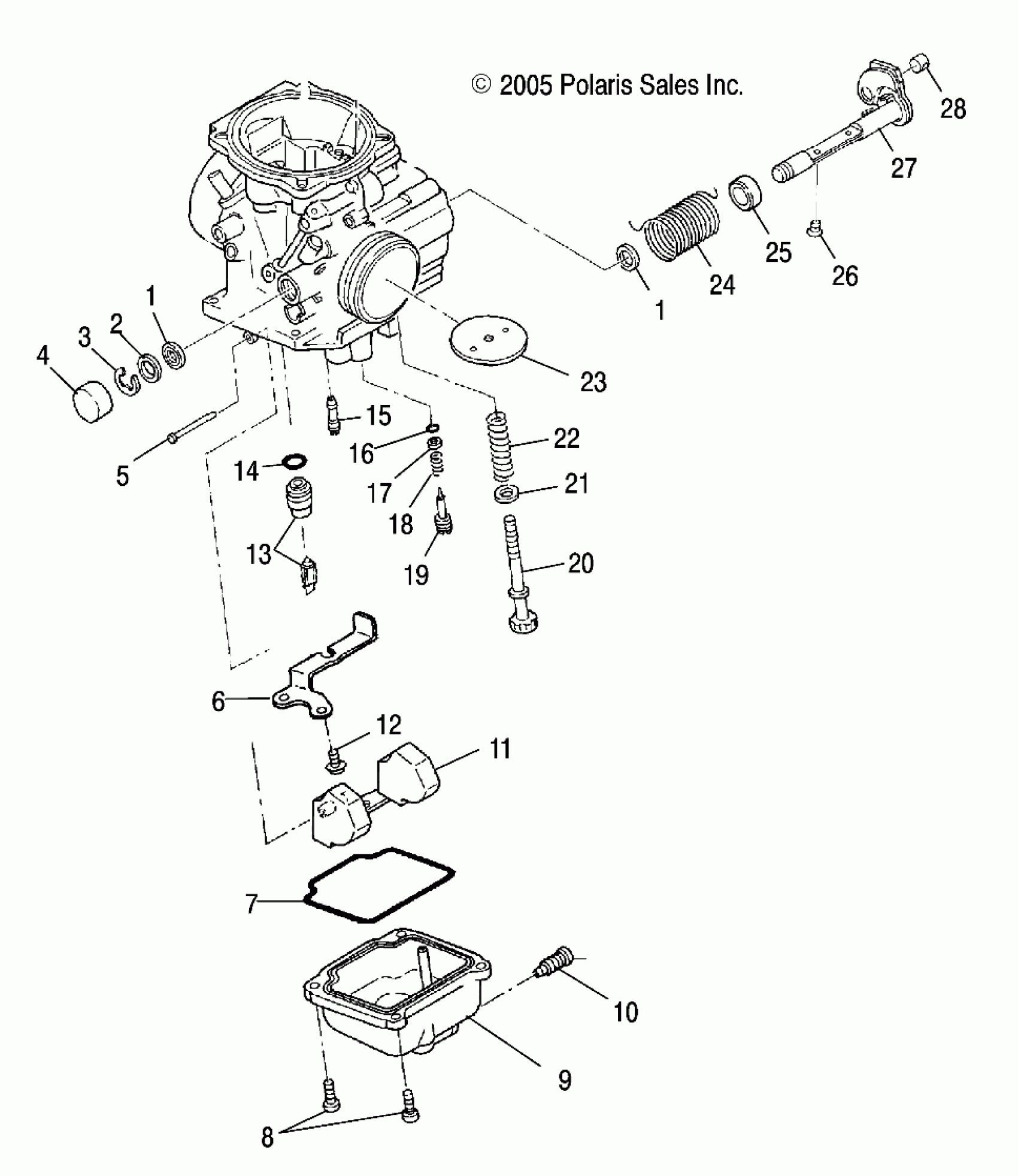

Polaris SPORTSMAN 700 - A06MH68AA CARBURETOR, LOWER - A06MH68AA/AD/AF (4999200179920017D10) Diagram

#

Description
Price

1

SEAL

3130515

$12.13

1

SEAL

3130515

$12.13

2

PACKING

----

Unavailable

3

E-RING

3130518

$1.60

4

CAP

3130519

$10.51

5

PIN, FLOAT

3130361

$9.70

6

PLATE

3130594

$32.37

7

O-RING

3130532

$32.37

8

SCREW

3130520

$1.59

9

Asm., Float Body

3130590

$119.98

10

SCREW

3130521

$10.32

11

ASM., FLOAT

3130529

$99.74

12

SCREW

3130591

$3.97

13

VALVE, NEEDLE, 1.5

3131360

$61.74

14

O-RING

3130533

$5.65

15

Jet, Pilot, 45

3131397

$28.32

16

O-Ring

3130522

$5.65

17

Washer

3130523

$2.38

18

Spring

3130525

$5.65

19

Adjuster

3130524

$23.81

20

Screw, Adjust

3130546

$13.75

21

Ring

3130545

$12.13

22

Spring

3130544

$10.51

23

Valve, Throttle, 100

3130502

$62.92

24

Spring

3131398

$11.90

25

Ring

3130514

$7.27

26

SCREW

3130501

$3.97

27

ASM., THROTTLE SHAFT

----

Unavailable

28

GUIDE, CABLE

3130543

$32.37
