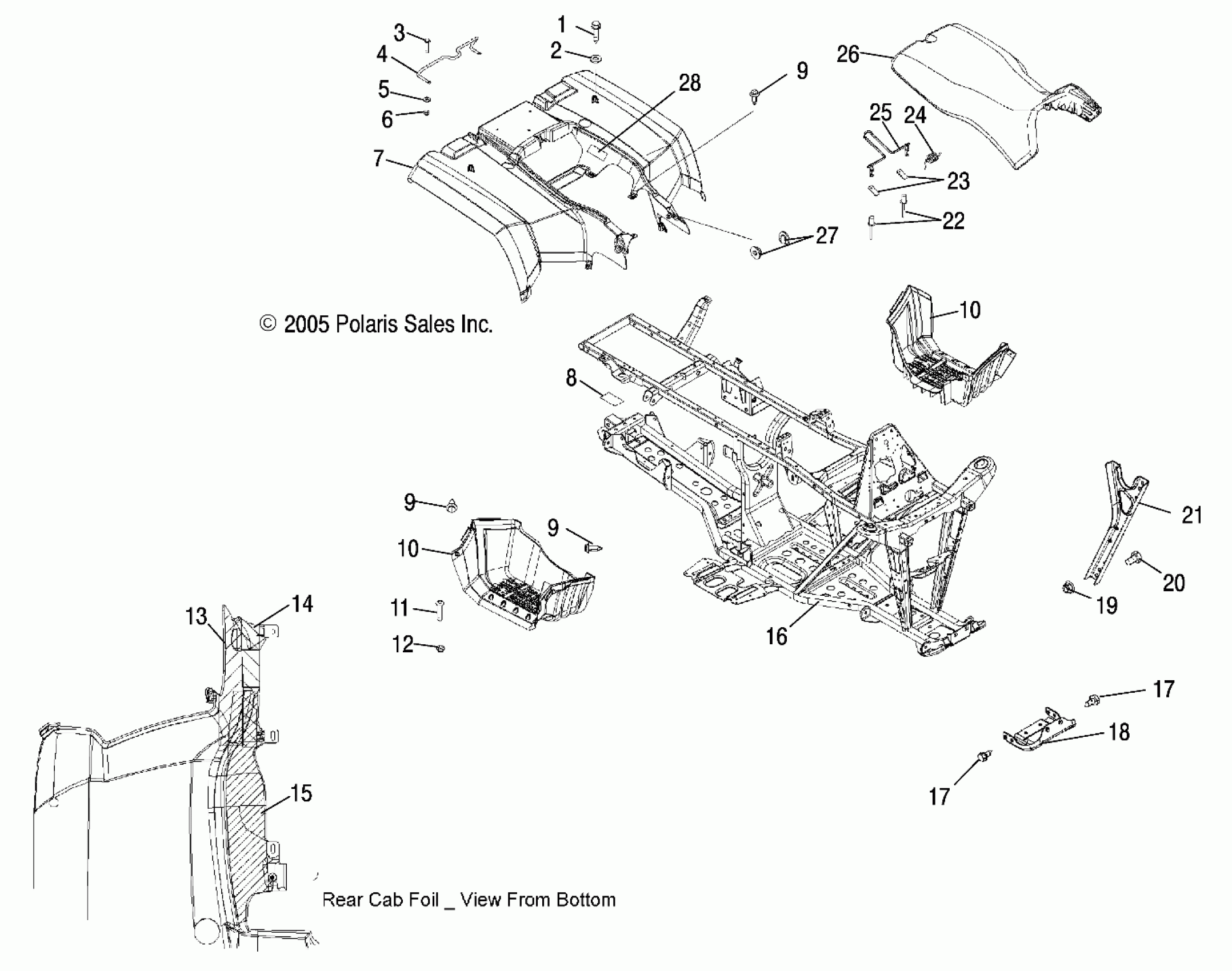

Polaris SPORTSMAN 700 - A06MH68AA CAB, REAR and SEAT - A06MH68AA/AD/AF (4999200179920017A03) Diagram

#

Description
Price

1

Screw

7512095

$4.79

2

Washer

7555798

$1.49

3

Screw

7511930

$2.39

4

Retainer, Seat Latch

5246076

Unavailable

5

WASHER

7555792

$4.79

6

Nut, Nylok

7541925

$1.49

7

CAB, REAR, MEDIUM YELLOW [AD]

5436319-053

$399.99

7

Cab, Rear, Sonic Blue [AF]

5436319-341

Unavailable

7

Cab, Rear, Camo Green Metallic [AA]

5436319-400

Unavailable

8

DECAL, HITCH, 1500 LBS.

7170509

$6.39

9

Rivet

7661855

$1.49

9

Rivet

7661855

$1.49

9

Rivet

7661855

$1.49

10

Footwell, Black, LH

5435354-070

Unavailable

10

Footwell, Black, RH

5435355-070

Unavailable

10

Footwell, Black, LH

5435354-070

Unavailable

10

Footwell, Black, RH

5435355-070

Unavailable

11

SCREW

7517230

$1.49

12

Nut, Nylok

7542122

$1.49

13

Foil, Front, Top

5812703

Unavailable

14

Foil, Front, Bottom

5812702

Unavailable

15

Foil

5812701

Unavailable

16

Frame, Main, Black

1014951-067

Unavailable

17

SCREW

7515399

$1.49

17

SCREW

7515399

$1.49

18

Bracket, Bumper, Lower, Black

5245767-067

Unavailable

19

NUT, NYLOK, FLANGED

7542153

$1.59

20

Screw

7512283

$3.99

21

Brace, Support, Frame, Front, Black, LH

5244751-067

Unavailable

22

RIVET

7621403

$1.49

23

BRACKET, LEVER RETAINER

5211033

$29.25

24

SPRING, LATCH

7041370

$9.59

25

LATCH, SEAT

1040387

$47.99

26

Asm., Seat, Black

2683433-070

Unavailable

26

Covering, Seat, Black

2683434-070

Unavailable

27

GROMMET, RUBBER, MOUNT

5412623

$2.39

28

Decal, Filter Cleaning

7172922

$15.87
