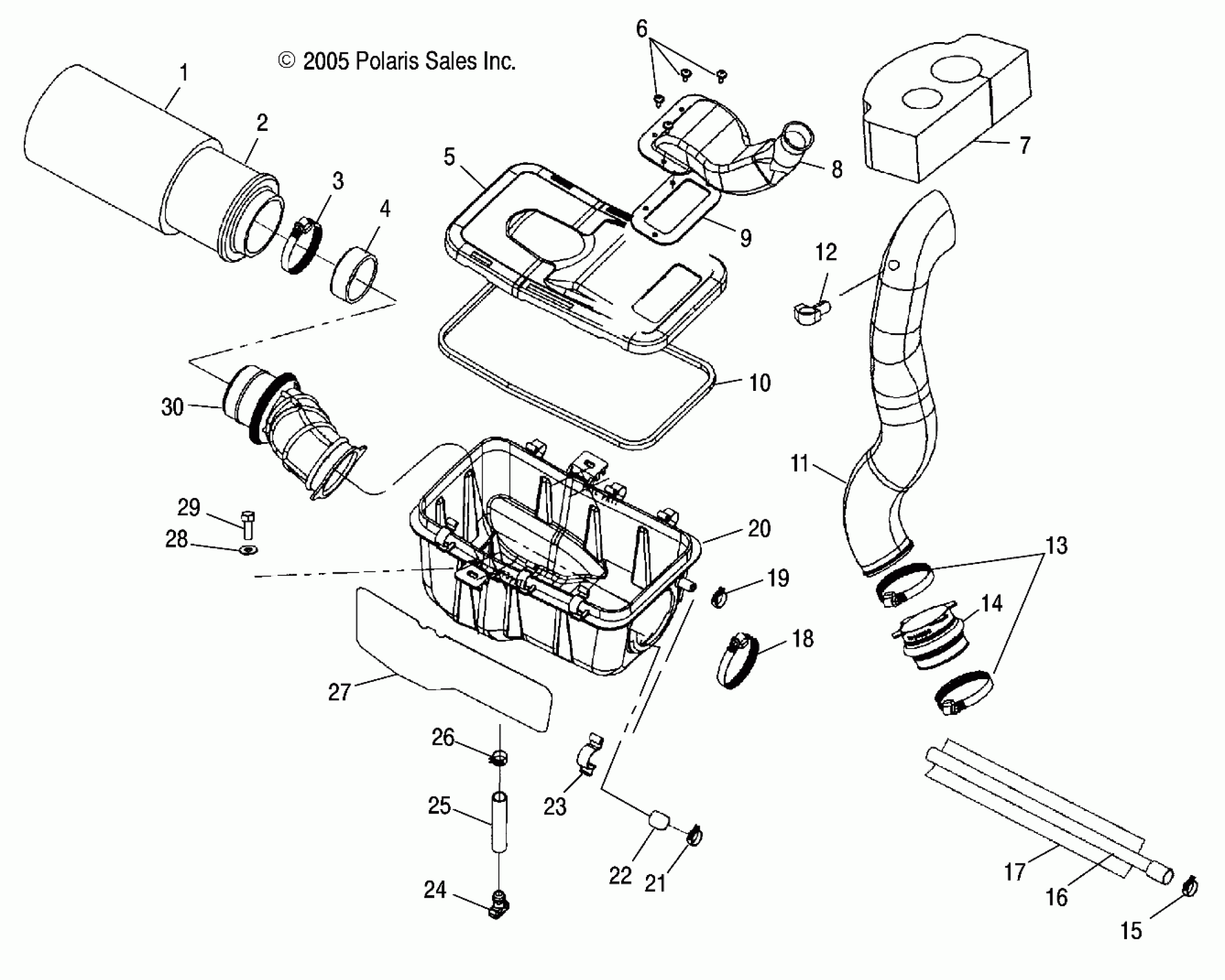

Polaris SPORTSMAN 700 - A06MH68AA AIR BOX - A06MH68AA/AD/AF (4999200179920017A12) Diagram

#

Description
Price

1

Filter, Precleaner Sleeve

5811633

$11.99

2

Filter, Air

7080595

Unavailable

3

Clamp, Narrow Band

7080413

$3.19

4

Sleeve, Carburetor, Inner

5433847

$13.59

5

Cover, Air Box

5432868

$51.99

6

SCR-#8X1/2,TR/PH,TYPE B-Y

7517317

$3.19

7

Seal, Foam

5812775

Unavailable

8

Duct, Air Inlet

5434013

Unavailable

9

Gasket, Intake

5411422

$6.63

10

Seal, Cover

5811482

Unavailable

11

Duct, Clutch Air Inlet

5434044

$114.99

12

Clip

7670102

$2.39

13

CLAMP, HOSE

7080451

$7.19

14

BOOT, CLUTCH INTAKE

5412634

$11.19

15

Clamp, Hose, Spring

7080694

$6.53

16

Hose, Breather

5412615

Unavailable

17

Sheath, Reflective Sleeve

8450108-34

Unavailable

18

Clamp, Narrow Band

7080511

$4.79

19

Clamp, Hose

7080699

$1.59

20

Box, Air

5433678

$127.99

21

Clamp, Hose

7080534

$1.59

22

Cap, End

5433396

$4.79

23

CLIP-AIR BOX

5242044

$9.59

24

Plug, Trap

5432377

Unavailable

25

Line, Fuel

8450059-150

Unavailable

26

Clamp, Hose

7080650

$3.99

27

Foil

5811650

Unavailable

28

Washer, Flat

7555859

$1.49

29

Screw

7515179

$2.39

30

Boot, Carburetor

5412066

$39.99
