Partiron

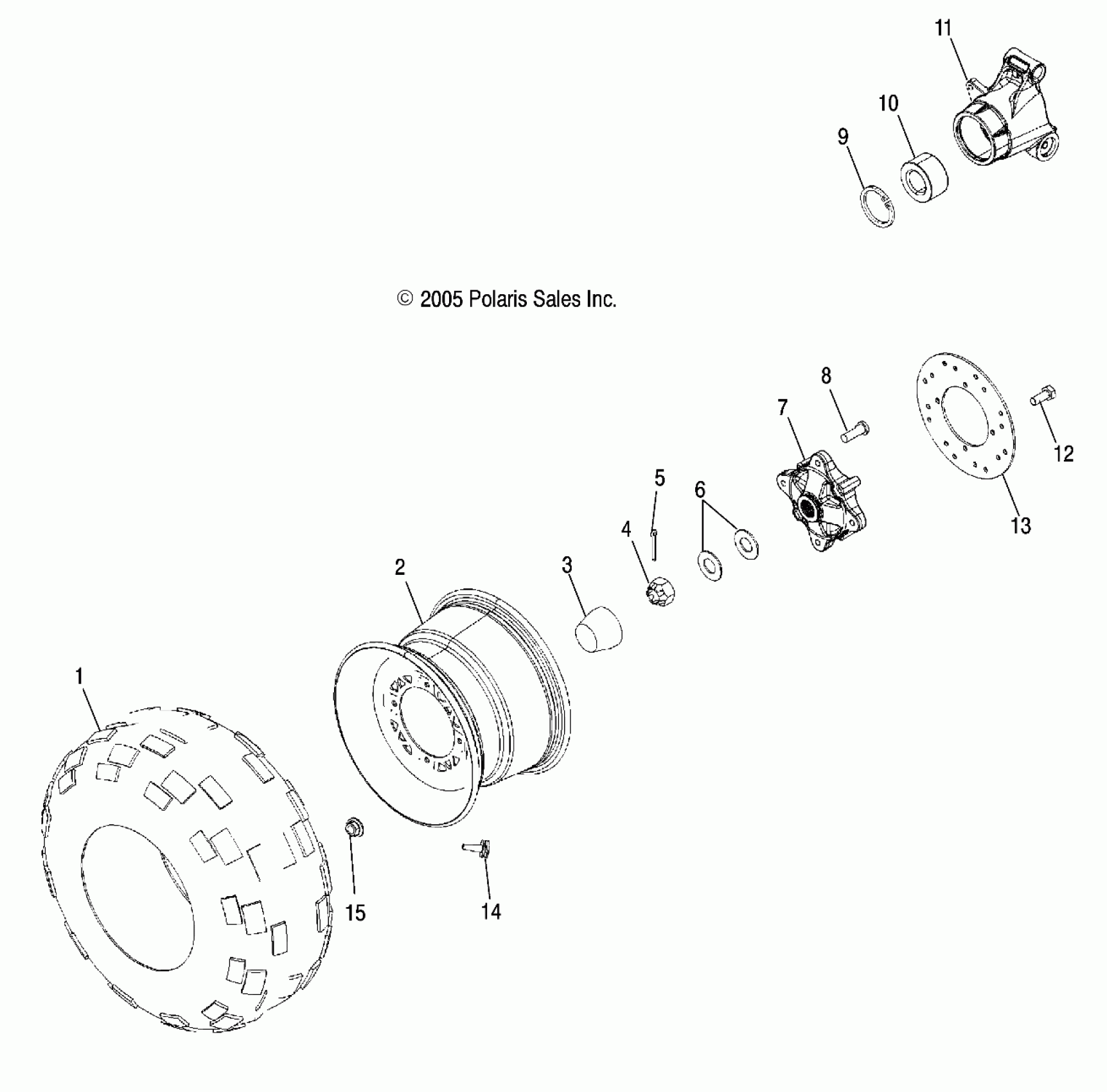

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD REAR WHEEL DRIVE - A05MH68AK/AN/AD (4999200179920017C11) Diagram

#

Description
Price

1

Tire, 26x11-12

5412661

$184.99

2

WELD-RIM,REAR,12X8.0,BLK

1520457-067

Unavailable

3

Cover, Dust, Hub

5411164

$24.27

4

Nut, Castle

7543005

Unavailable

5

PIN, COTTER

7661404

$4.79

6

WASHER, CONE

7555796

$7.99

7

Hub, Rear Wheel

5134311

Unavailable

8

Stud

7515513

$1.49

9

RING, RETAINING

7710440

$10.39

10

Bearing

3585502

Unavailable

11

CARRIER, WHEEL BEARING [SEE REAR SUSPENSION PG., REF. 11]

-------

Unavailable

12

BOLT

7512325

$2.39

13

Disc, Brake, Rear

5244635

$75.99

14

VALVE-RIM

1525017

$5.59

15

NUT, FLANGE

7547237

$2.39
