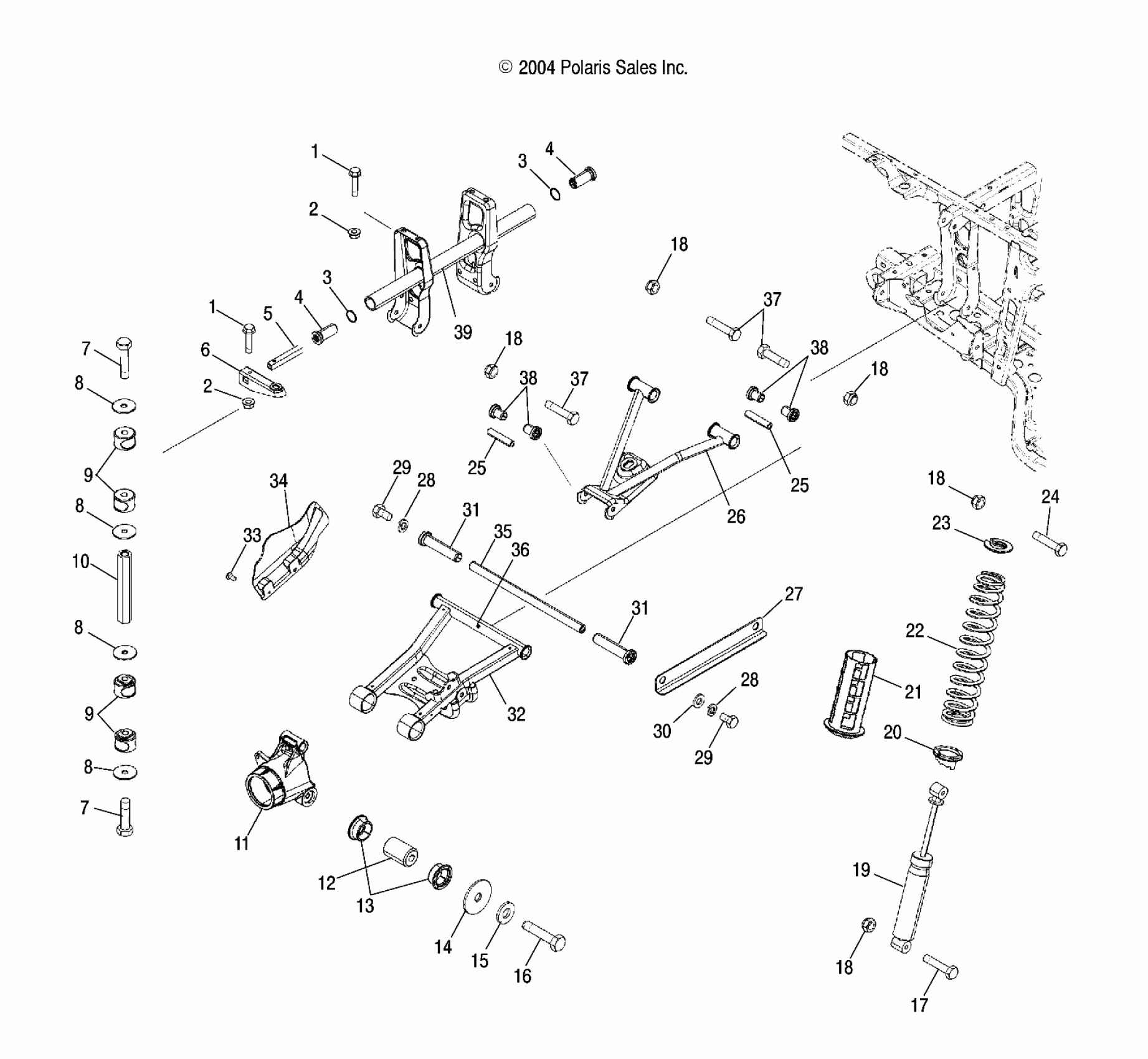

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD REAR SUSPENSION - A05MH68AK/AN/AD (4994229422C11) Diagram

#

Description
Price

1

BOLT, FLANGE

7518341

$4.79

1

BOLT, FLANGE

7518341

$4.79

2

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

NUT-5/16-18 NYLOK-Y

7542324

$1.49

3

Washer

7555939

Unavailable

3

Washer

7555939

Unavailable

4

Bushing, Stabilizer Tube

5434549

$8.48

4

Bushing, Stabilizer Tube

5434549

$8.48

5

BAR, STABILIZER TUBE, BLACK

5334114-067

$111.33

6

Arm, Stabilizer Bar, Black

1580107-067

$62.92

7

SCREW

7517231

$7.19

7

SCREW

7517231

$7.19

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

8

WASHER

7555761

$2.39

9

Bushing, Stabilizer, Link

5432598

$6.39

9

Bushing, Stabilizer, Link

5432598

$6.39

10

ROD, LINKAGE, STABILIZER

5020827

$47.99

11

Carrier, Wheel Bearing

5134206

$115.99

12

Bushing, Bearing Carrier

5631142

$23.16

13

Bushing, Control, Lower

5434550

$4.62

14

Washer

7555740

$1.59

15

WASHER-LOCK, 7/16-B

7552614

$1.59

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

17

Screw

7515415

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

18

Nut, Nylok

7542439

$1.49

19

Shock, Rear (If built before 9/06/04)

7043100

$87.99

19

Shock, Rear (If built after 9/06/04)

7041959

$123.99

20

Cam, Adjusting, Spring (If built before 9/06/04)

5630551

$31.99

20

Cam, Adjusting, Spring (If built after 9/06/04)

5631014

$31.99

21

Sleeve, Shock Protector (If built after 9/06/04)

5435273

Unavailable

22

Spring, Compression, Rear, Black (If built before 9/06/04)

7043091-067

$97.76

22

Spring, Compression, Rear, Black (If built after 9/06/04)

7042311-067

$94.99

23

Retainer, Spring

5630885

$10.03

24

Screw

7515433

$1.59

25

SHAFT, A-ARM, SHORT

5020826

$11.99

25

SHAFT, A-ARM, SHORT

5020826

$11.99

26

Arm, Control, Upper, Red, LH

1014320-293

Unavailable

26

Arm, Control, Upper, Red, RH

1014321-293

$121.02

27

Strap, Black

5245140-067

Unavailable

28

Washer, Spring Lock

7552603

$1.49

28

Washer, Spring Lock

7552603

$1.49

29

Screw

7512492

$1.49

29

Screw

7512492

$1.49

30

WSHR-.813X.406X.105-Y

7555832

$2.39

31

Bushing, A-Arm, Long

5434551

$5.01

31

Bushing, A-Arm, Long

5434551

$5.01

32

Arm, Control, Lower, Red, LH

1015117-293

Unavailable

32

Arm, Control, Lower, Red, RH

1015118-293

Unavailable

33

Screw

7512084

$1.49

34

Shield, CV, Rear, LH

5434890-1038

Unavailable

34

Shield, CV, Rear, RH

5434891-1038

Unavailable

35

Shaft, A-Arm

5133806

$30.79

36

Fitting, Lub

7080433

$1.49

37

BOLT

7515472

$2.39

37

BOLT

7515472

$2.39

38

Bushing, A-Arm, Short

5434548

$2.38

38

Bushing, A-Arm, Short

5434548

$2.38

39

Support, Stabilizer, Black

1541801-067

$117.37
