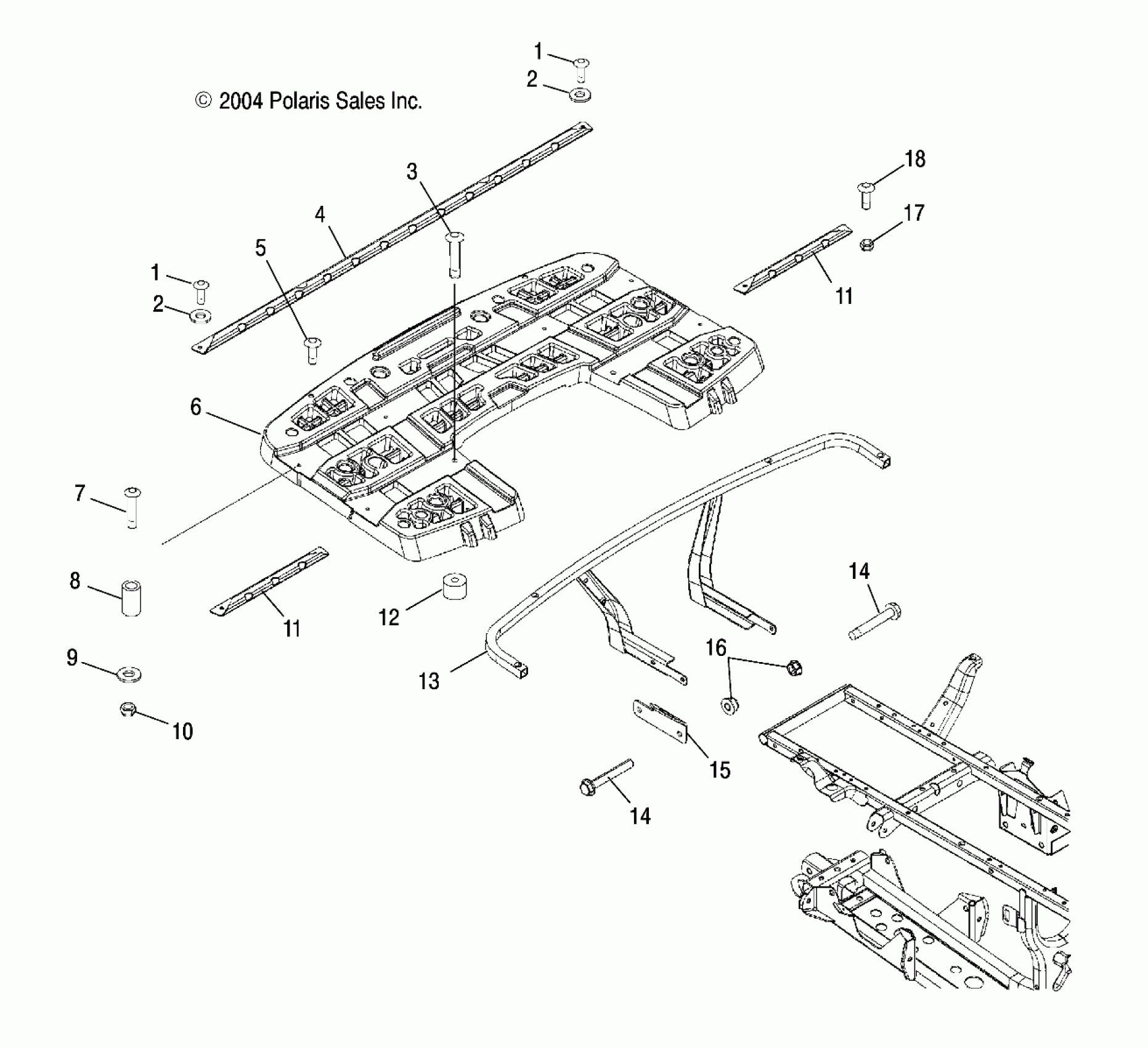

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD REAR RACK MOUNTING - A05MH68AK/AN/AD (4994139413A06) Diagram

#

Description
Price

1

SCREW

7517686

$1.59

1

SCREW

7517686

$1.59

2

Washer

7555935

$2.39

2

Washer

7555935

$2.39

3

Screw

7517983

$9.59

4

Channel, Rear

5248469-418

$99.99

5

SCREW

7518375

$1.49

6

Asm., Rack, Rear [Incl. Warning Decal]

2632867-070

$354.99

7

Screw (If built after 1/01/05)

7518504

$1.59

7

Screw (If built before 1/01/05)

7518213

Unavailable

8

Spacer (If built before 1/01/05)

5435959

$2.39

8

Spacer (If built after 1/01/05)

5436146

Unavailable

9

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

Channel, Front

5248471-418

$23.99

11

Channel, Front

5248471-418

$23.99

12

Spacer

5334092

$10.99

13

Support, Rear Rack

1014668-067

$255.19

14

BOLT, FLANGE

7518341

$4.79

14

BOLT, FLANGE

7518341

$4.79

15

BRACKET, SILENCER, FRAME [SEE EXHAUST SYSTEM PG., REF. 6]

-------

Unavailable

16

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

17

NUT, NYLOK

7542153

$1.59

18

SCREW

7517230

$1.49
