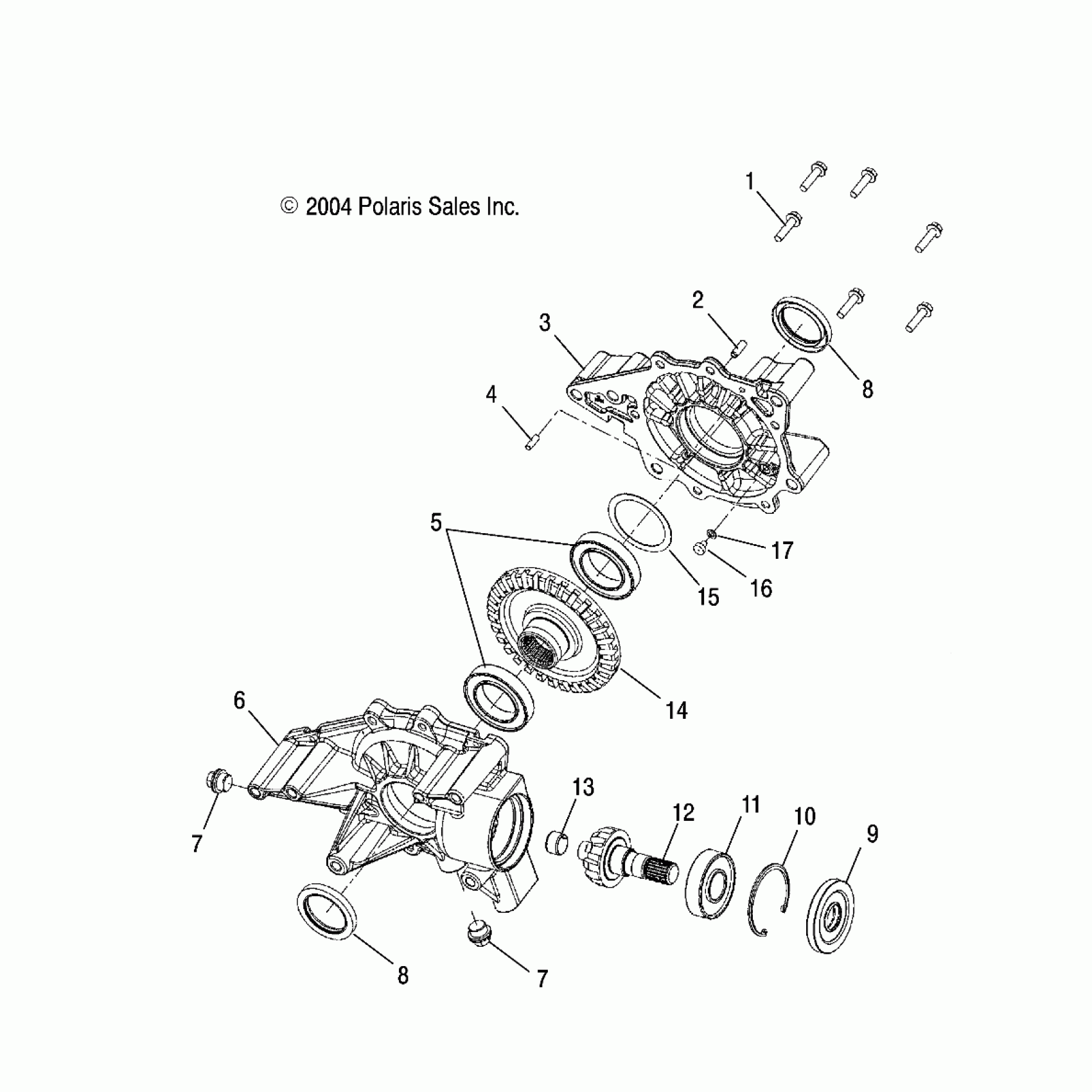

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD REAR GEARCASE - A05MH68AK/AN/AD (4994229422D05) Diagram

#

Description
Price

-

Asm., Gearcase, Rear (If built before 10/06/04)

1341498

Unavailable

-

Asm., Gearcase, Rear (If built after 10/06/04)

1332366

Unavailable

1

SCREW

3234114

$7.19

2

Tube, Vent (1332366)

3234230

$9.59

2

Tube, Vent (1341498)

3233524

$7.19

3

Cover, Rear, LH (1332366)

3234235

Unavailable

3

Cover, Rear, LH (1341498)

3234116

Unavailable

4

Pin, Dowel (1341498)

3234117

Unavailable

4

Pin, Dowel (1332366)

3233859

Unavailable

5

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

6

Gearcase, Rear, RH

3234115

$504.99

7

Plug

3234087

$14.66

7

Plug

3234087

$14.66

8

Seal

3233878

$32.37

8

Seal

3233878

$32.37

9

Seal, Triple Lip (1332366)

3234113

$35.99

9

Seal, Triple Lip (1341498)

3234003

$32.37

10

RING, RETAINING

3234158

$23.99

11

BEARING, BALL

3233714

$31.99

12

Shaft, Pinion, 10T

3233881

$171.99

13

Bushing

3233577

$19.99

14

Gear, 31T

3233879

Unavailable

15

SHIM

3233581

Unavailable

16

THRUST BUTTON

3233582

$7.91

17

SHIM

3233583

Unavailable
