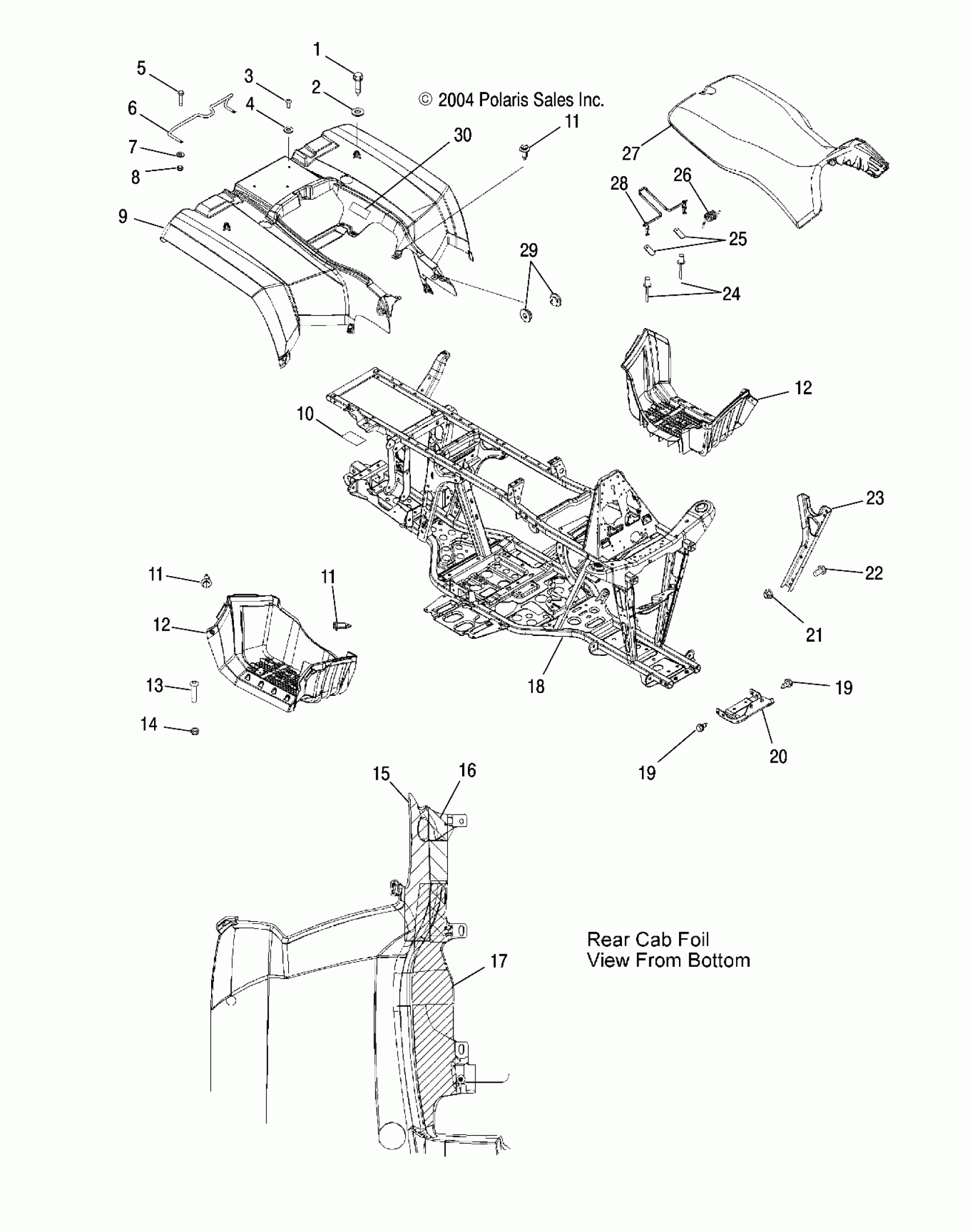

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD REAR CAB and SEAT - A05MH68AK/AN/AD (4994199419A03) Diagram

#

Description
Price

1

Screw

7512095

$4.79

2

Washer

7555798

$1.49

3

SCREW

7512026

$1.49

4

WASHER

7556034

$2.39

5

Screw

7511930

$2.39

6

Retainer, Seat Latch

5246076

Unavailable

7

WASHER

7555792

$4.79

8

Nut, Nylok

7541925

$1.49

9

Cab, Rear, Camo Green Metallic [AK][AD]

5435363-400

Unavailable

9

Cab, Rear, Sonic Blue [AN]

5435363-341

Unavailable

10

DECAL, HITCH, 1500 LBS.

7170509

$6.39

11

Rivet

7661855

$1.49

11

Rivet

7661855

$1.49

11

Rivet

7661855

$1.49

12

Footwell, Black, LH

5435354-070

Unavailable

12

Footwell, Black, RH [AK][AN]

5435355-070

Unavailable

12

Footwell, Black, RH [AD]

5436474-070

Unavailable

12

Footwell, Black, LH

5435354-070

Unavailable

12

Footwell, Black, RH [AK][AN]

5435355-070

Unavailable

12

Footwell, Black, RH [AD]

5436474-070

Unavailable

13

SCREW

7517230

$1.49

14

Nut, Nylok

7542122

$1.49

15

Foil, Rear Cab, Front, Top

5812703

Unavailable

16

Foil, Rear, Cab, Front, Bottom

5812702

Unavailable

17

Foil, Cab, Rear

5812701

Unavailable

18

Frame, Main, Black

1014951-067

Unavailable

19

SCREW

7515399

$1.49

19

SCREW

7515399

$1.49

20

Bracket, Bumper, Lower, Black

5245767-067

Unavailable

21

Nut, Nylok, Flange

7542153

$1.59

22

Screw

7512283

$3.99

23

Brace, Support, Frame, Front, Black, LH

5244751-067

Unavailable

24

RIVET

7621403

$1.49

25

BRACKET, LEVER RETAINER

5211033

$29.25

26

SPRING, LATCH

7041370

$9.59

27

Asm., Seat, Black

2683433-070

Unavailable

27

Covering, Seat, Black

2683434-070

Unavailable

28

LATCH, SEAT

1040387

$47.99

29

Grommet, Rubber Mount

5412623

$2.39

30

Decal, Filter Cleaning

7172922

$15.87
