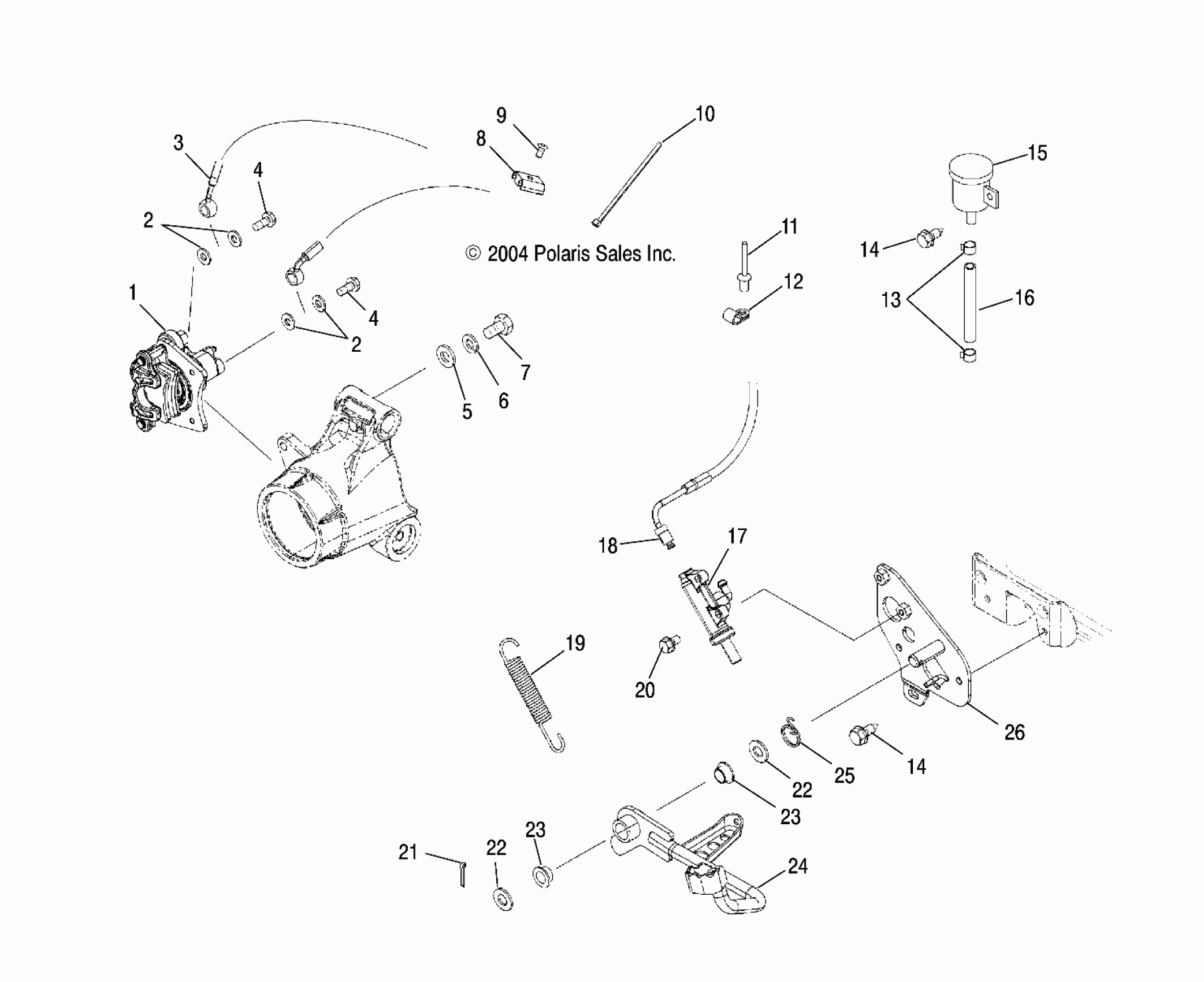

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD MASTER CYLINDER, REAR AND FOOT PEDAL - A05MH68AK/AN/AD (4994229422B08) Diagram

#

Description
Price

-

Kit, Brake Line, Rear [Incl. 18]

2202709

$87.99

1

ASM., CALIPER [SEE REAR CALIPER PAGE FOR DETAILS]

-------

Unavailable

2

Seal

5410988

$4.84

2

Seal

5410988

$4.84

3

Line, Brake, Hand, Rear

1910759

$89.03

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

4

BOLT-BANJO,10MMX1.00-6G

1910499

$5.59

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

WASHER, SPRING LOCK

7552901

$1.49

7

SCREW, CAP

7512365

$1.49

8

CLIP, RETAINING

7670126

$4.79

9

Screw

7517756

$1.49

10

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

11

Rivet

7621462

$1.49

12

CLAMP, CABLE

7080960

$4.79

13

HOSE CLAMP, RED

7080003

$1.49

14

SCREW

7517386

$1.49

14

SCREW

7517386

$1.49

15

Asm., Reservoir, Brake, Rear

1930854

$35.99

16

Hose, Reservoir

1910438

$7.27

17

Master Cylinder, Brake, Rear

1910790

$166.01

18

Line, Rear Brake, Foot

1910766

$89.03

19

Spring

7042075

$49.99

20

Screw

7515158

$4.79

21

PIN, COTTER

7661401

$1.49

22

WASHER

7555919

$4.99

22

WASHER

7555919

$4.99

23

BUSHING, PIVOT, PEDAL

5433189

$3.99

23

BUSHING, PIVOT, PEDAL

5433189

$3.99

24

Rod, Brake, Black [AK][AN]

1013415-067

Unavailable

24

Rod, Brake, Black [AD]

1015150-067

$51.59

25

SPRING-TORSION,BRAKE

7041750

$8.79

26

Mount, Brake, Black

1013414-067

Unavailable
