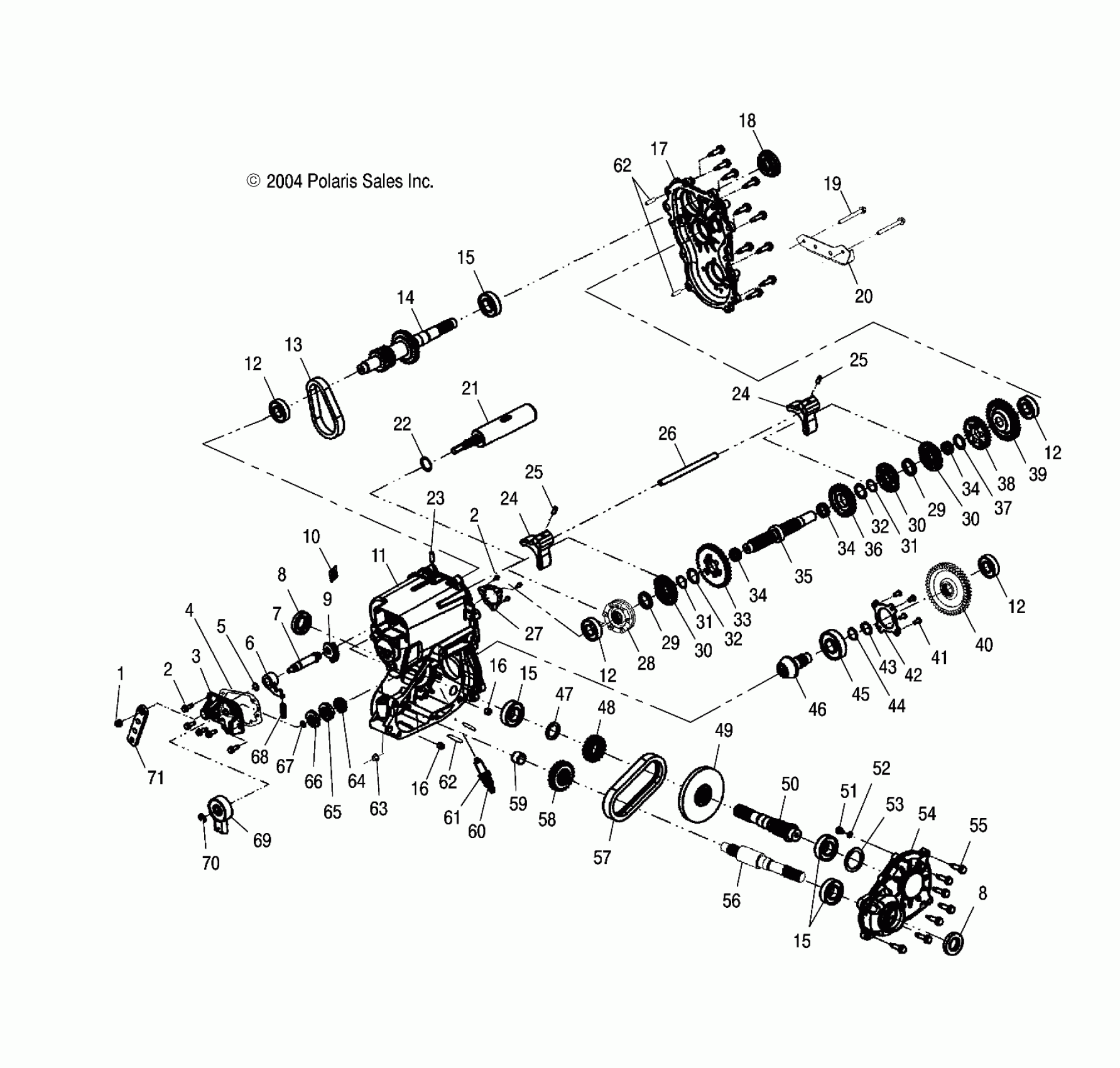

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD GEARCASE - A05MH68AK/AN/AD (4994229422D01) Diagram

#

Description
Price

-

Asm., Gearcase (If built after 1/04/04)

1332349

Unavailable

-

Asm., Gearcase (If built before 1/04/04)

1341471

Unavailable

1

NUT, LOCK

3233961

$3.32

2

SCREW

3233826

$9.52

2

SCREW

3233826

$9.52

3

Subasm., Cover, Sector w/Pins

3234188

$113.32

4

GASKET

----

Unavailable

5

O-RING

3233869

$5.65

6

Pawl, Detent

3233829

$36.41

7

SHAFT, SHIFT

3233831

$60.70

8

Seal, Triple Lip

3233788

$32.37

8

Seal, Triple Lip

3233788

$32.37

9

GEAR-SECTOR,31T

3233832

$36.41

10

LABEL, OIL FILL/LEVEL CHECK

3234143

Unavailable

11

Gearcase, Main

3234128

$346.49

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

12

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

13

Chain, Silent

3233036

Unavailable

14

Shaft, Input [33/16/15]

3233890

Unavailable

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

15

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

16

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.37

16

PLUG, HEX, HOLLOW W/O-RING

3233794

$15.37

17

Gearcase, LH

3234221

$435.70

18

Seal, Dual Lip

3233874

$32.37

19

SCREW

3234042

$7.14

20

BRACKET, TRANSMISSION MOUNT

3234142

$28.32

21

DRUM, SHIFT

3234211

$259.03

22

O-Ring

3233548

$33.24

23

TUBE, VENT

3233524

$9.99

24

Subasm., Shift Fork w/Pin [Incl. 25][1341471]

3234141

Unavailable

24

Subasm., Shift Fork w/Pin [Incl. 25][1342349]

3234220

$165.94

24

Subasm., Shift Fork w/Pin [Incl. 25][1341471]

3234141

Unavailable

24

Subasm., Shift Fork w/Pin [Incl. 25][1342349]

3234220

$165.94

25

Pin, Dowel

----

Unavailable

25

Pin, Dowel

----

Unavailable

26

RAIL, SHIFT SHAFT

3233860

$64.99

27

PLATE, PARK

3233915

$40.46

28

ENGAGEMENT DOG

3234040

Unavailable

29

SPRING, WAVE

3234144

$33.24

29

SPRING, WAVE

3234144

$33.24

30

ENGAGEMENT DOG

3233875

$165.94

30

ENGAGEMENT DOG

3233875

$165.94

30

ENGAGEMENT DOG

3233875

$165.94

31

RING, RETAINING

3233850

$10.32

31

RING, RETAINING

3233850

$10.32

32

WASHER

3233851

$10.32

32

WASHER

3233851

$10.32

33

GEAR, 33T

3233852

$246.89

34

BEARING, NEEDLE

3233718

$35.71

34

BEARING, NEEDLE

3233718

$35.71

34

BEARING, NEEDLE

3233718

$35.71

35

Shaft, Reverse

3233853

Unavailable

36

Sprocket, 24T

3233854

$169.99

37

WASHER

3233855

$10.32

38

Gear, 28T

3233912

Unavailable

39

GEAR, 51T

3234136

Unavailable

40

GEAR, 56T

3234137

Unavailable

41

SCREW, TORX

3234086

$5.56

42

COVER, BEARING

3234122

$79.99

43

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

44

SPACER

3233357

$24.99

45

Bearing, Ball

3233607

$36.41

46

SUBASM-GRND SPIRL BVL(411466) [Incl. 49]

3234911

$465.49

47

WASHER,THRUST

3233619

$24.99

48

SPROCKET, 22T/18T

3233873

$124.99

49

SUBASM-GRND SPIRL BVL(411466) [Incl. 46]

3234911

$465.49

50

SHAFT-OUTPUT,MAIN,REAR

3233911

$214.99

51

THRUST BUTTON

3233582

$8.99

52

SHIM

3233583

Unavailable

53

SHIM

3233611

Unavailable

54

COVER, OUTPUT, FRONT

3234130

Unavailable

55

SCREW

3234114

$7.14

56

SHAFT,FRONT OUTPUT

3233625

$141.65

57

CHAIN, SILENT

3233784

$93.08

58

SPROCKET-22T

3233844

$144.99

59

BUSHING-GARLOCK

3233552

$23.81

60

Clamp, Tie

3234013

Unavailable

61

Lockout, Park

3233917

Unavailable

62

PIN, DOWEL

3233247

$8.99

62

PIN, DOWEL

3233247

$8.99

63

NUT

3234043

$5.56

64

GEAR, 16T

3233839

$36.41

65

DISC, LOCKOUT

3233838

$33.24

66

Star, Detent

3234082

$42.74

67

O-RING

3233076

$6.46

68

SPRING, COMPRESSION

3233830

$10.32

69

SWITCH

3233835

$142.49

70

RING, RETAINING

3233834

$10.32

71

Bellcrank

3233906

Unavailable
