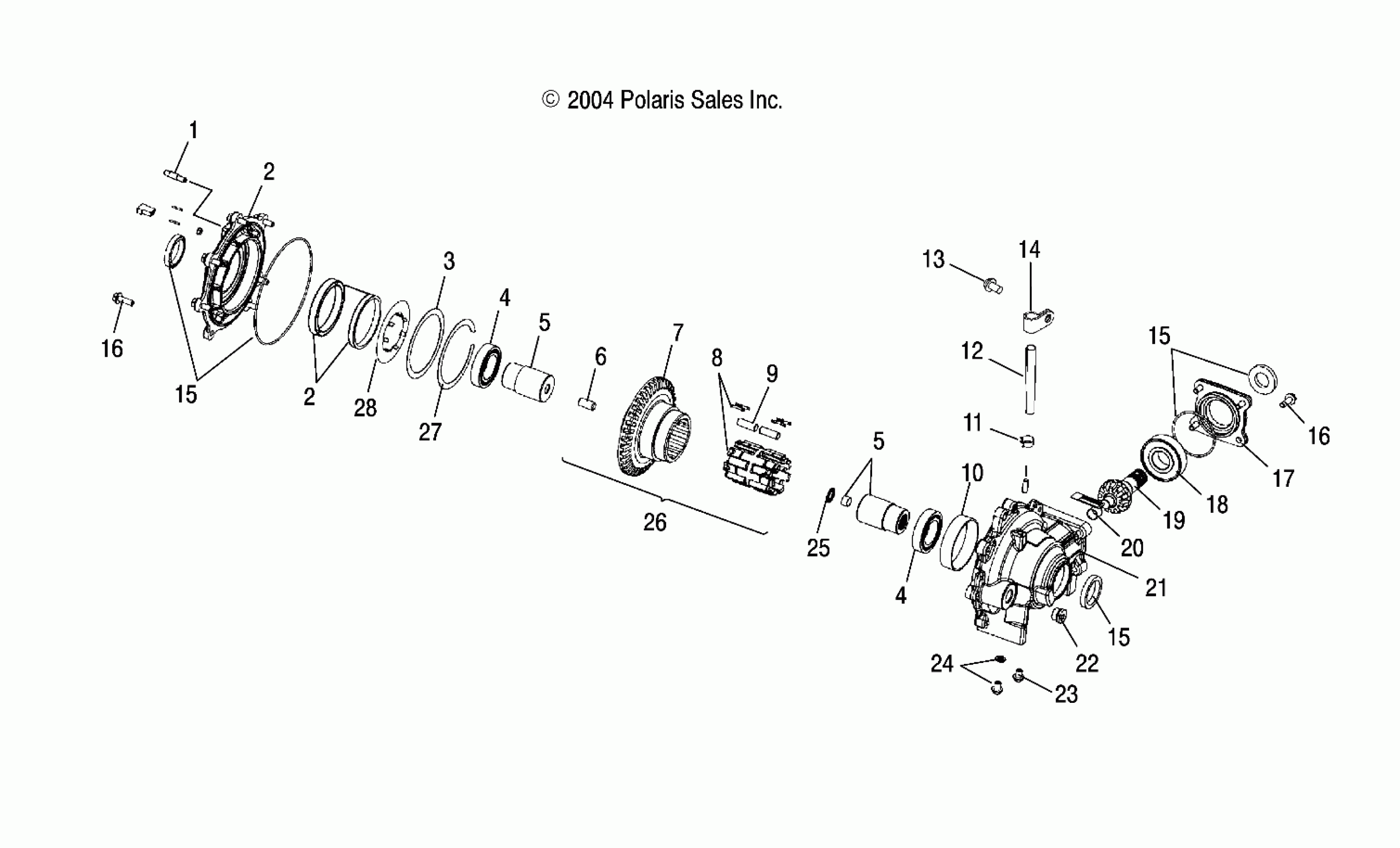

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD FRONT HOUSING - A05MH68AK/AN/AD (4994229422D04) Diagram

#

Description
Price

-

Kit, Bolt

3233955

$31.99

-

Asm., Front Gearcase (If built before 6/13/05)

1341497

$1,909.99

-

Asm., Front Gearcase, Bearingless (If built after 6/13/05)

1332428

$1,909.99

1

Screw, Set

3234163

Unavailable

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$440.69

2

Asm., Cover Plate [Incl. Output Cover, Insert and Coil]

3234159

$440.69

3

Shim, Armature Plate

3234161

$31.99

4

Bearing, Roller Ball

3233926

$59.99

4

Bearing, Roller Ball

3233926

$59.99

5

Asm., Race/Output Hub [Incl. 25]

3233953

$375.99

5

Asm., Race/Output Hub [Incl. 25]

3233953

$375.99

6

Pin, Dowel

3233928

$23.99

7

Clutch Housing/Ring Gear

3234166

$951.17

8

Asm., Roll Cage [Incl. Spring and Roll Cage]

3234167

Unavailable

8

Spring

-------

Unavailable

9

Kit, Roller

3233957

$135.99

10

BUSHING

-------

Unavailable

11

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

12

Line, Fuel

8450003

Unavailable

13

SCREW

7512024

$4.79

14

CLAMP, HOSE

7080693

$5.59

15

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$75.99

15

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$75.99

15

Kit, Seal Kit [Incl. O-Rings and Seals]

3233956

$75.99

16

Screw

3233918

Unavailable

16

Screw

3233918

Unavailable

17

Cover, Input

3233947

Unavailable

18

Bearing, Roller Ball

3234112

$59.99

19

Shaft, Pinion, 11T

3233944

Unavailable

20

BUSHING

-------

Unavailable

21

GEARCASE, LH

-------

Unavailable

22

Plug, Oil Fill

3233942

$31.99

23

Bolt, Flange

7518364

$1.59

24

Asm., Drain Plug [Incl. Plug and Washer]

3233951

Unavailable

25

Bearing, Needle, Roller Thrust

3233929

Unavailable

26

Asm., Clutch [Incl. 7-9]

3234168

Unavailable

27

Ring, Retaining, Internal

3234162

$27.99

28

Plate Armature

3234160

Unavailable
