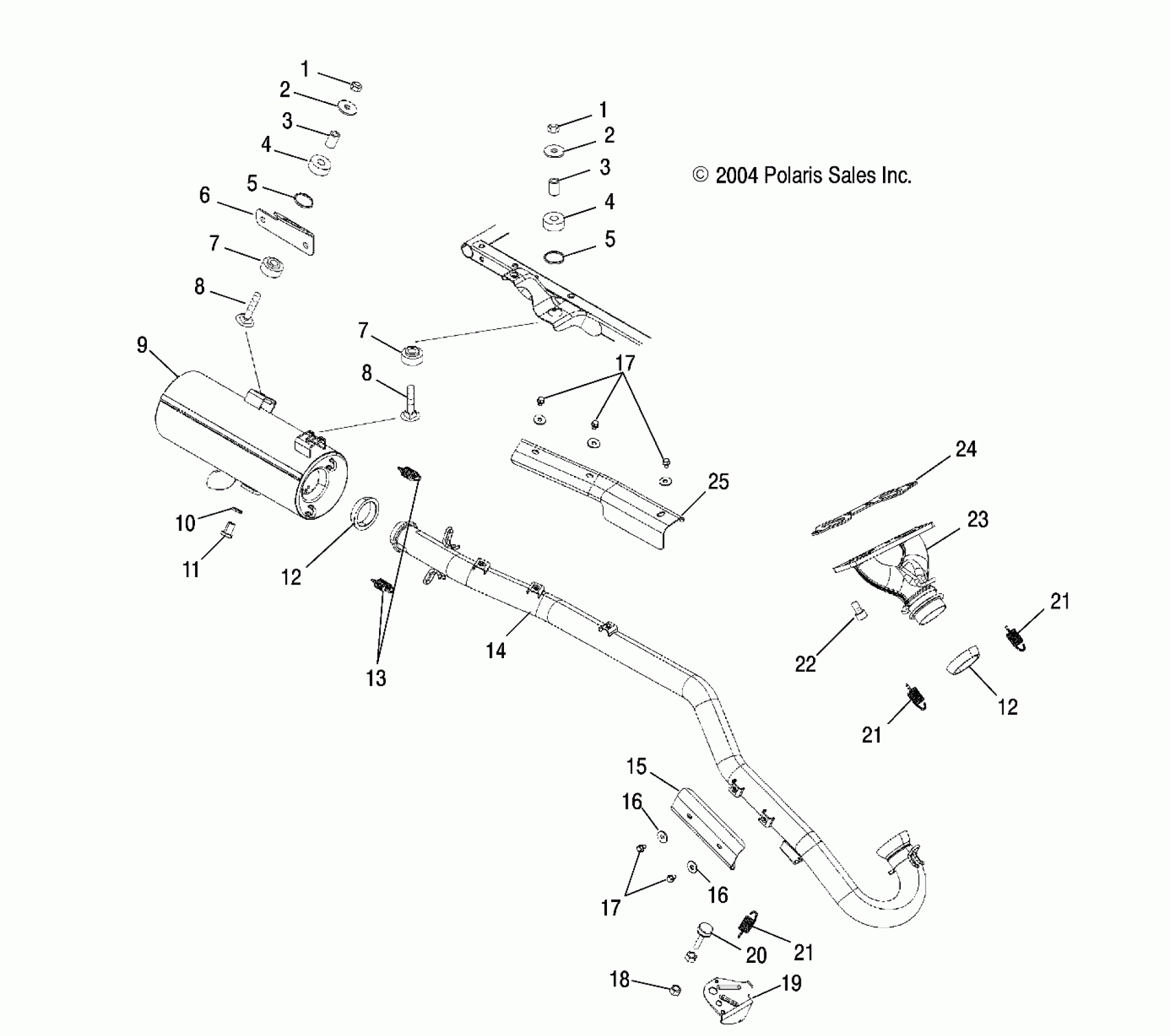

Polaris SPORTSMAN 700 - A05MH68AK/AN/AD EXHAUST SYSTEM - A05MH68AK/AN/AD (4994199419A11) Diagram

#

Description
Price

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

1

NUT-5/16-18 NYLOK-Y

7542324

$1.49

2

WASHER

7555716

$1.59

2

WASHER

7555716

$1.59

3

BUSHING

5010192

$6.39

3

BUSHING

5010192

$6.39

4

WASHER, RUBBER

5410436

$1.59

4

WASHER, RUBBER

5410436

$1.59

5

Bushing

7555863

$2.39

5

Bushing

7555863

$2.39

6

BRACKET, SILENCER, FRAME

5241663

$10.39

7

Dampener, Vibration

5412508

$4.79

7

Dampener, Vibration

5412508

$4.79

8

BOLT

7515316

$2.39

8

BOLT

7515316

$2.39

9

Silencer, Exhaust, Black

1261223-029

Unavailable

10

WASHER, CLEAN OUT

7556230

$1.49

11

BOLT

7512666

$2.39

12

Seal, Exhaust Socket

3610047

$36.41

12

Seal, Exhaust Socket

3610047

$36.41

13

SPRING

7041804

$7.99

14

Pipe, Exhaust, Blk

1261242-029

$229.99

15

SHIELD, HEAT, EXHAUST

5244014

$39.99

16

Washer

7555935

$2.39

16

Washer

7555935

$2.39

17

Screw

7515197

$1.49

17

Screw

7515197

$1.49

18

Nut, Hex

7542301

$1.59

19

NUTSERT

7547101

$9.59

20

Mount, Torque Stop (If built before 12/06/04)

3021522

$27.99

20

Mount, Torque Stop (If built after 12/06/04)

3110064

Unavailable

21

SPRING-EXHAUST

7041789

$7.99

21

SPRING-EXHAUST

7041789

$7.99

21

SPRING-EXHAUST

7041789

$7.99

22

Screw

7518234

$2.99

23

Manifold, Black

1261077-029

Unavailable

24

GASKET

5811511

$48.56

25

Shield, Heat, Exhaust

5245502

$23.99
